Install the appFractal Design Ridge - Small Form Factor (SFF) PC Case, White
FD-C-RID1N-12
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 31 days
- — Best price
Find similar
Bundle deal Buy together & save
Fractal Design Ridge + accessories −10%
Key specifications
- BrandFractal Design
- Form factorSmall Form Factor (SFF)
- Supported motherboard form factorsMini-ITX
- Side panelSolid
- Maximum graphics card length335 mm
- Maximum CPU cooler height70 mm
- Front portsUSB Type-C, USB 3.1, USB 3.0, Earphone/Mic
- Number of expansion slots3
- Weight5.5 kg
- Warranty1 Year Warranty
Fractal Design Ridge - Small Form Factor (SFF) PC Case, White
Achieve the Perfect Balance
Experience the ideal harmony of performance and space efficiency with the Fractal Design Ridge. This meticulously engineered small form factor case is designed to maximize capability while occupying a minimal footprint, making it perfect for compact setups.
Inch-Perfect Efficiency
- Compact design with a volume of just 12.6 liters
- Supports graphics cards up to 335 mm in length
Flexible Orientation
- Multiple feet configurations enable both horizontal and vertical placement
- Enhances the aesthetic of any gaming desk, workspace, or entertainment center
Unmatched Access
Gain full access to your build with removable panels for easy modifications and upgrades.

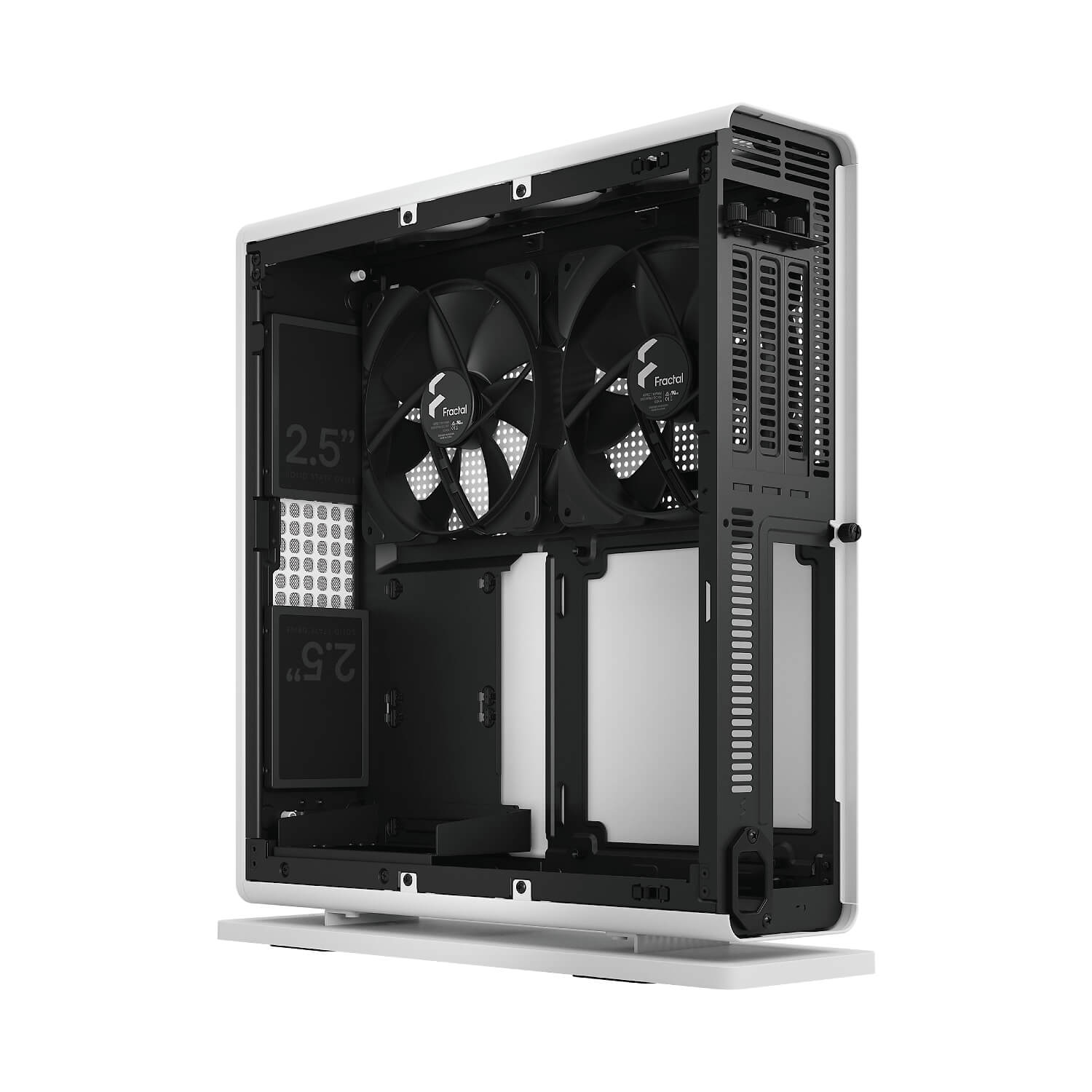

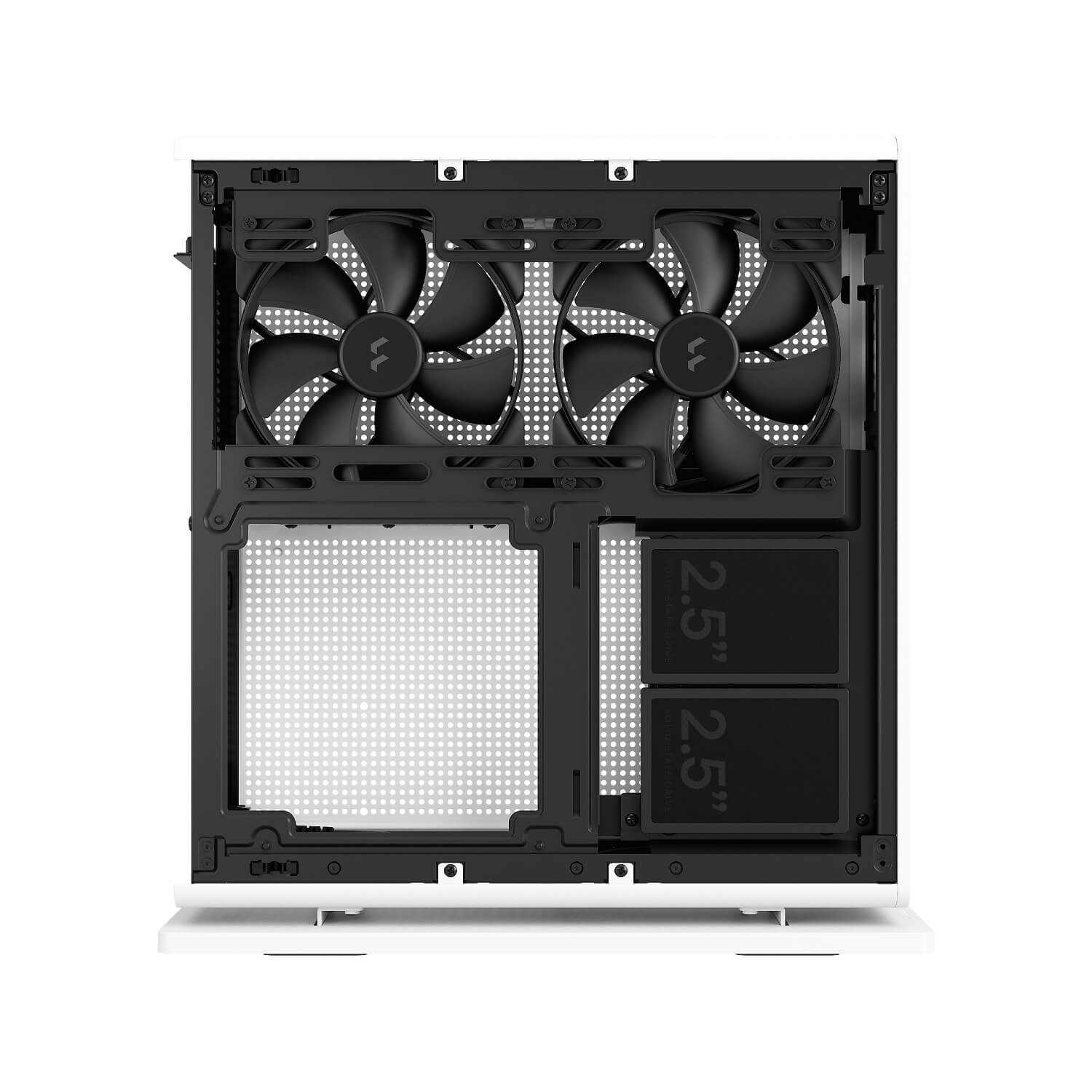

Optimized Cooling
- Ventilated design on all sides to enhance airflow and cooling potential
- Includes 2x 140 mm PWM Aspect fans pre-installed for superior performance
- Accommodates additional fans: up to 2x 120/140 mm and 3x 80 mm
Stylish and Functional Design
- Elegant fabric front paired with a CNC machined aluminum frame for durability
- Integrated Power LED bar enhances visibility and style
Modern Connectivity
The front I/O panel is equipped with:
- 2x USB 3.0 ports
- 1x USB Type-C port
- Combined microphone and headphone jack
Smart Configuration Options
- Includes a PCIe 4.0 or PCIe 3.0 riser card, pre-installed for your convenience
- Four mounts for 2.5” drives to accommodate your storage needs
Elevate your computing experience with the Fractal Design Ridge - a small form factor case that perfectly blends aesthetics with functionality.
Find similar by key specs
Front ports USB Type-C, USB 3.1, USB 3.0, Earphone/Mic
Tick the specs you need — we will find similar products Find similar →
All specifications 23
Main3
- Brand
- Fractal Design
- Warranty
- 1 Year Warranty
- Product code
- FD-C-RID1N-12
Design11
- Cable routing space
- 13,8 mm (behind PSU)
- Form factor
- Small Form Factor (SFF)
- Front interface
- 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 1x Combo jack – Audio/Microphone, power button, power LED
- GPU max height
- 125 mm with top fan(s) installed, 137 mm without top fans
- GPU max thickness
- 57 mm with 2x 140 mm fans installed, 82 mm without side fans
- Maximum CPU cooler height
- 70 mm
- Maximum graphics card length
- 335 mm
- Number of 2.5" bays
- 4
- Number of expansion slots
- 3
- Side panel
- Solid
- Supported motherboard form factors
- Mini-ITX
Ports & interfaces1
- Front ports
- USB Type-CUSB 3.1USB 3.0Earphone/Mic
Cooling4
- Side fans installed
- 2x PWM Aspect fan 140 mm
- Side fans supported
- 2x 120/140 mm
- Side radiator supported
- 120 mm when ≤175mm long GPUs are installed (280 mm without GPU)
- Top fans supported
- 3x 80 mm
Other features1
- Box contents
- Case, Accessory box, Manual
Power1
- Power supply type
- SFX, SFX-L
Weight & dimensions2
- Depth
- 375 mm
- Width
- 95 mm
