Gigabyte B560I AORUS PRO AX - Motherboard, Intel B560 Express, LGA 1200, Mini ITX
- — Warranty: 3 Years Warranty
- — Return and exchange up to 30 days
- — Best price
- Processor socketLGA 1200 (Socket H5)
- Compatible processor seriesIntel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
- Motherboard chipsetIntel B560 Express
- Supported memory typesDDR4-SDRAM
- Number of memory slots2
- All features

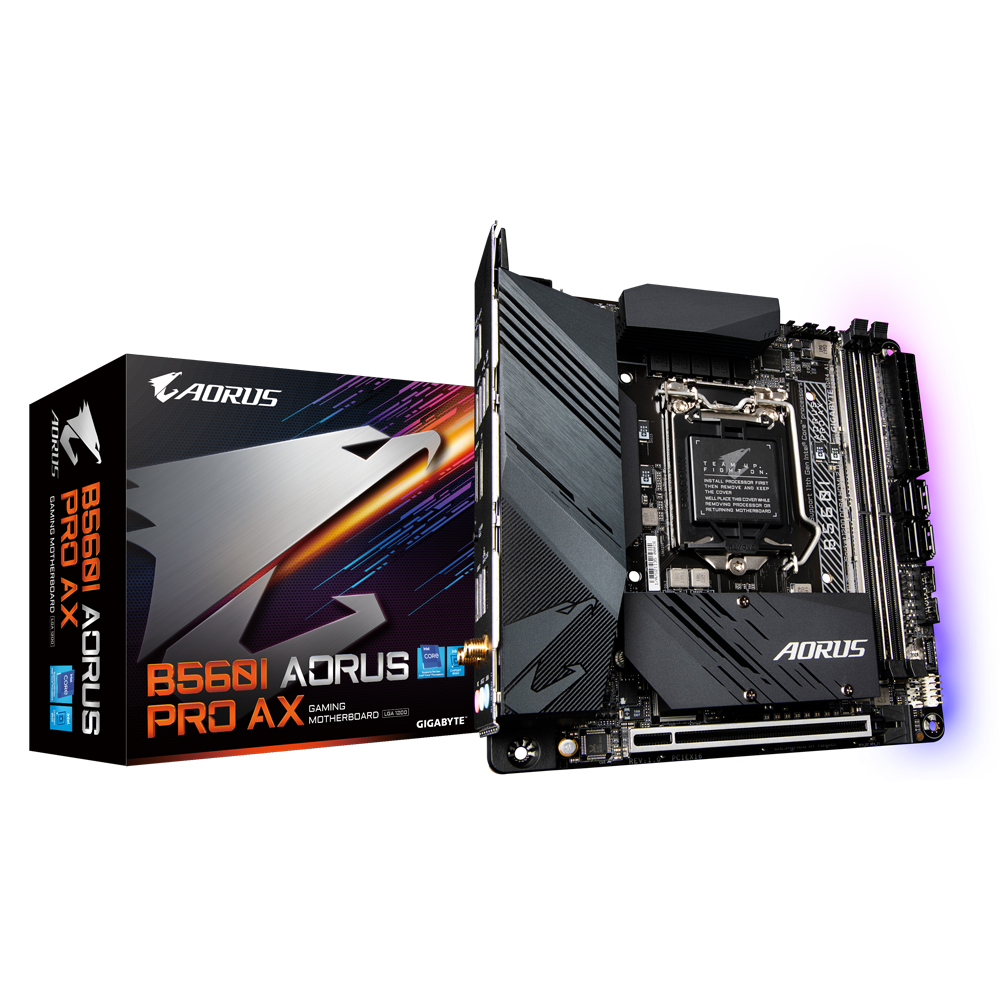

Gigabyte B560I AORUS PRO AX

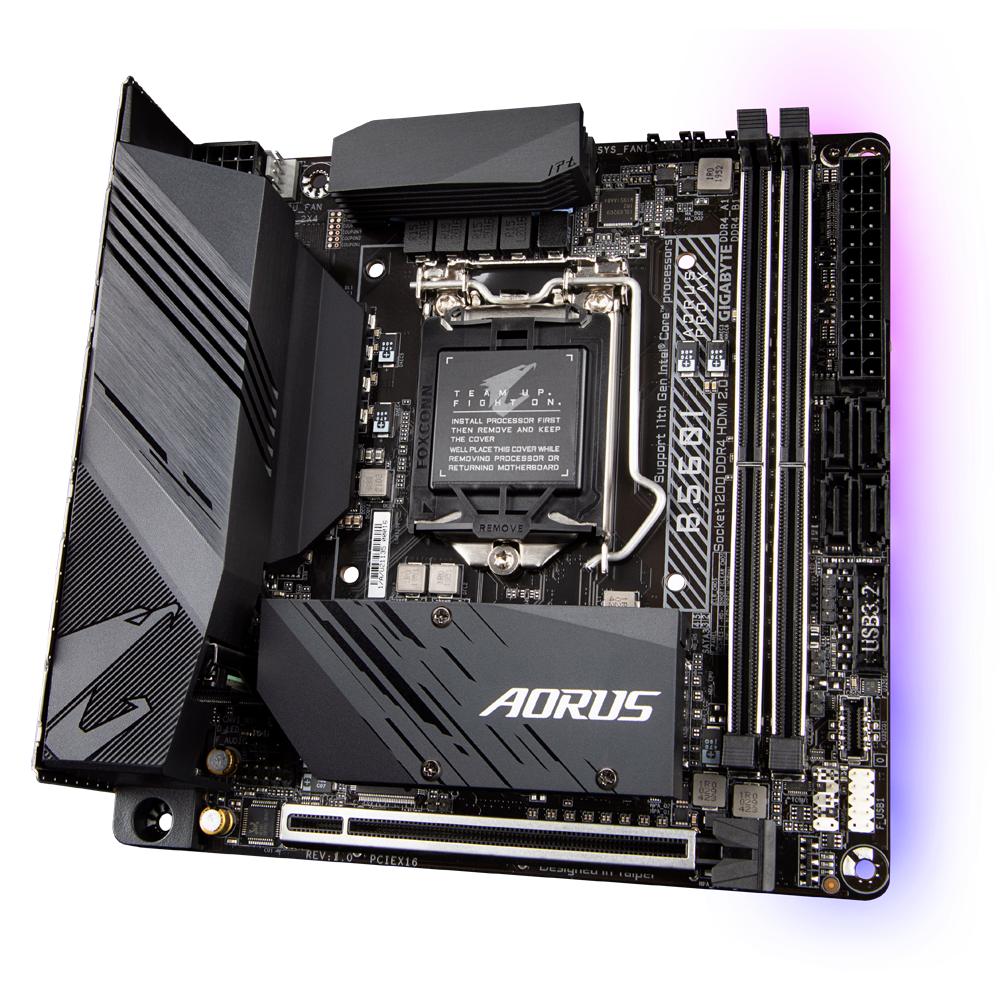

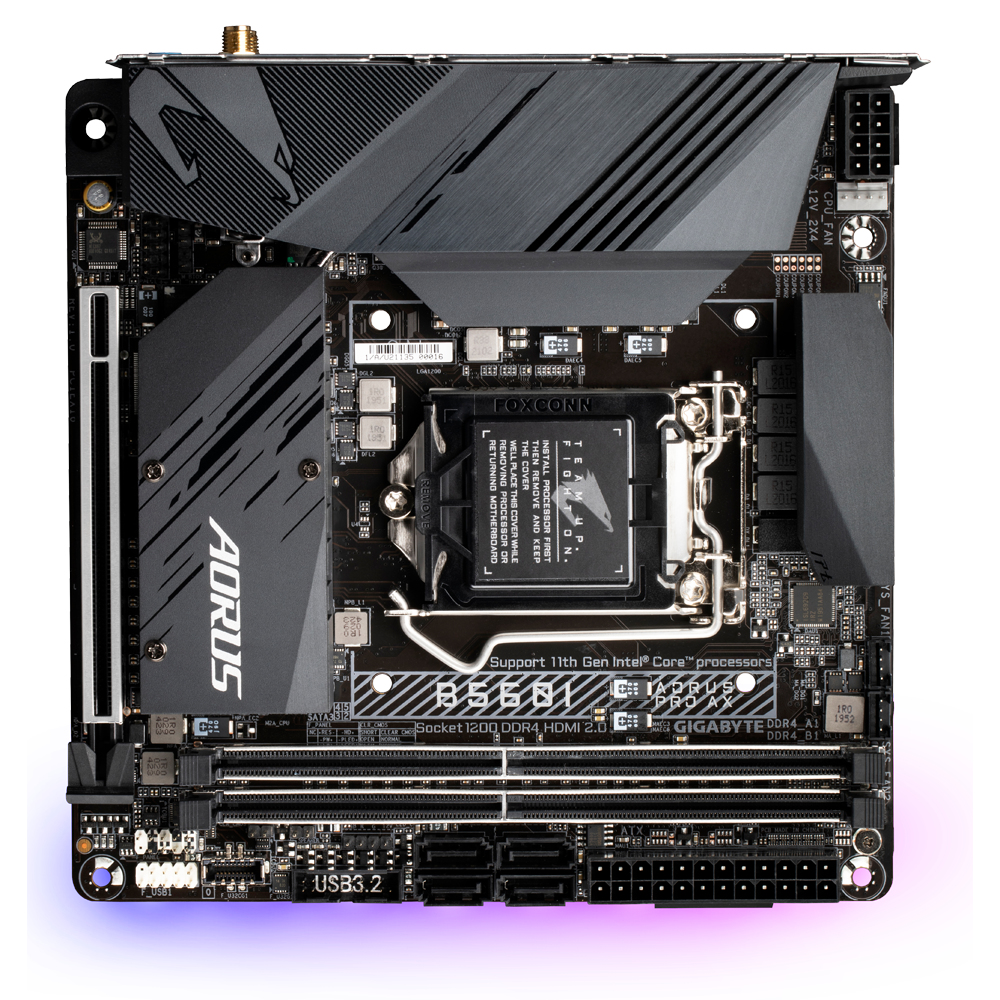

Ideal for building compact systems, the Gigabyte B560I AORUS PRO AX Mini-ITX motherboard is the ideal solution for those who value compact size and unique aesthetics. With support for 10th and 11th Gen Intel Core processors and PCIe 4.0 support, this motherboard delivers exceptional performance and comprehensive thermal management solutions to ensure the best operating conditions.
High data transfer rate

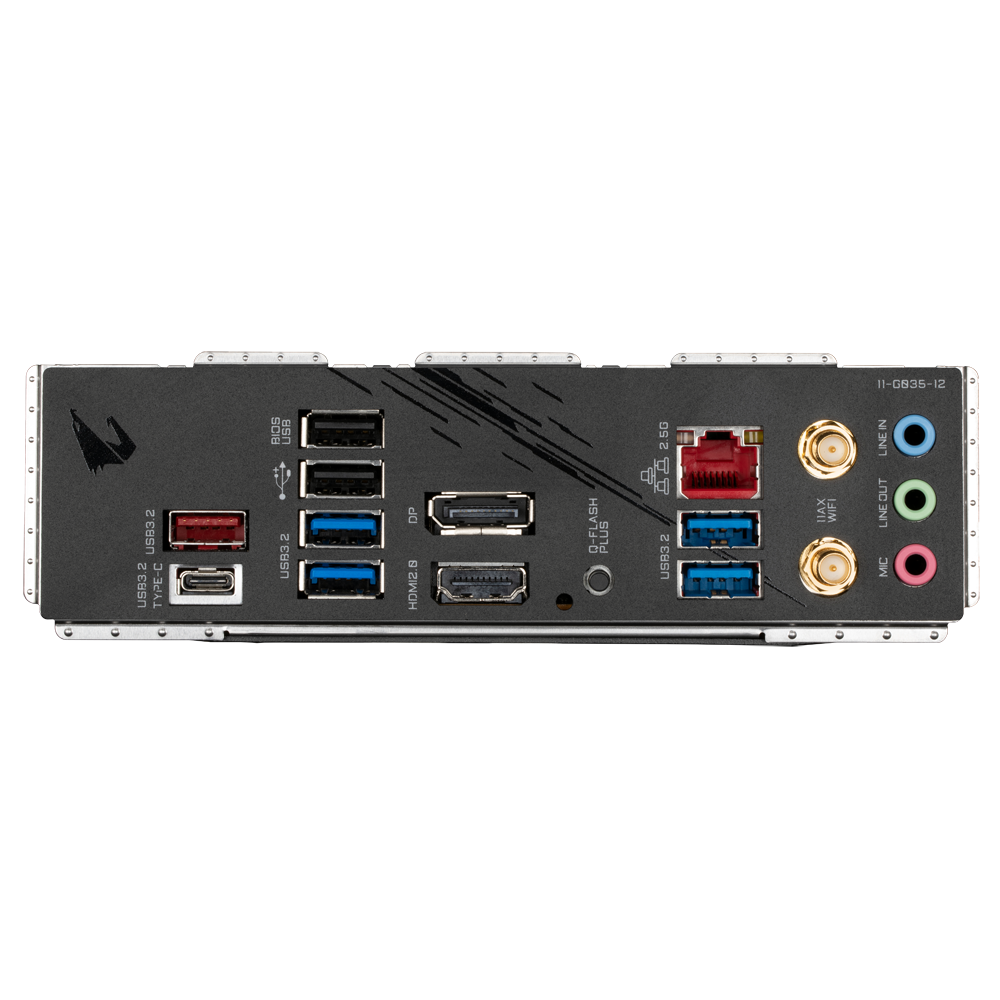

Despite its compact size, the B560I AORUS PRO AX hides two NVMe M.2 SSD slots. They provide bandwidth up to 32 Gb / s, and when combined with an 11th Gen processor, one of them will support the PCIe 4.0 standard and a maximum speed of up to 64 Gb / s. A rich selection of USB I / O and chassis panel pinouts, including USB 3.2 Gen1 Type-C, allows you to connect accessories and high-speed external drives.
Stable and reliable performance
The B560I AORUS PRO AX has an 8 + 1 phase power section that maintains a stable voltage in all situations, while massive heatsinks ensure optimal temperatures. The Smart Fan 6 system allows you to control the cooling of your PC through 3 fan headers and 4 temperature sensors. A metal-reinforced PCIe x16 slot provides strength to support heavy graphics cards and further isolates signals from interference.
Fastest network connection
B560I AORUS PRO AX supports network connections up to 2.5Gbps with Intel 2.5GBe LAN controller. This way you can get the most out of your connection. The Intel WiFi 6 802.11ax Wireless Adapter, on the other hand, offers up to 2.4Gbps maximum bandwidth connectivity and Bluetooth 5 support.
