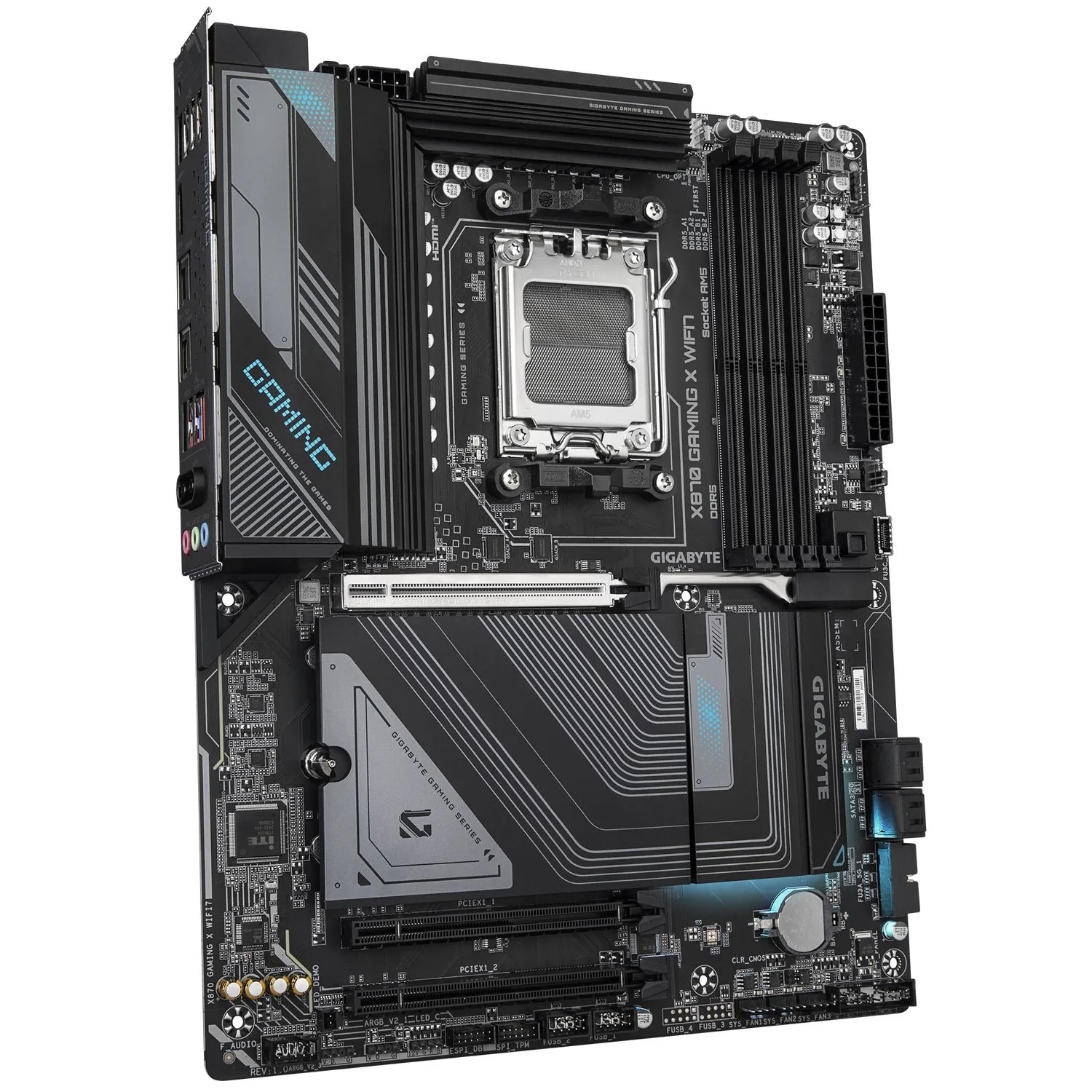

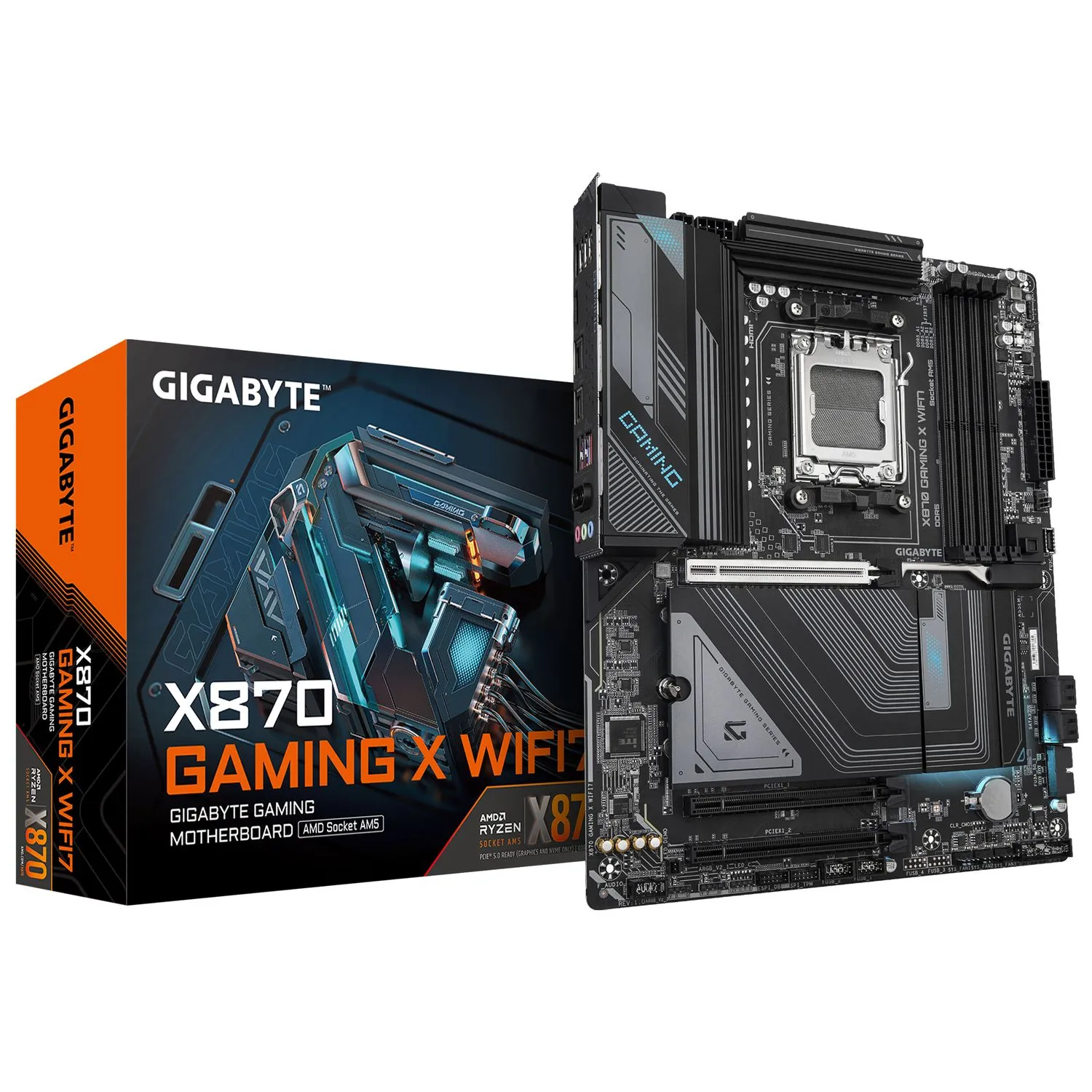

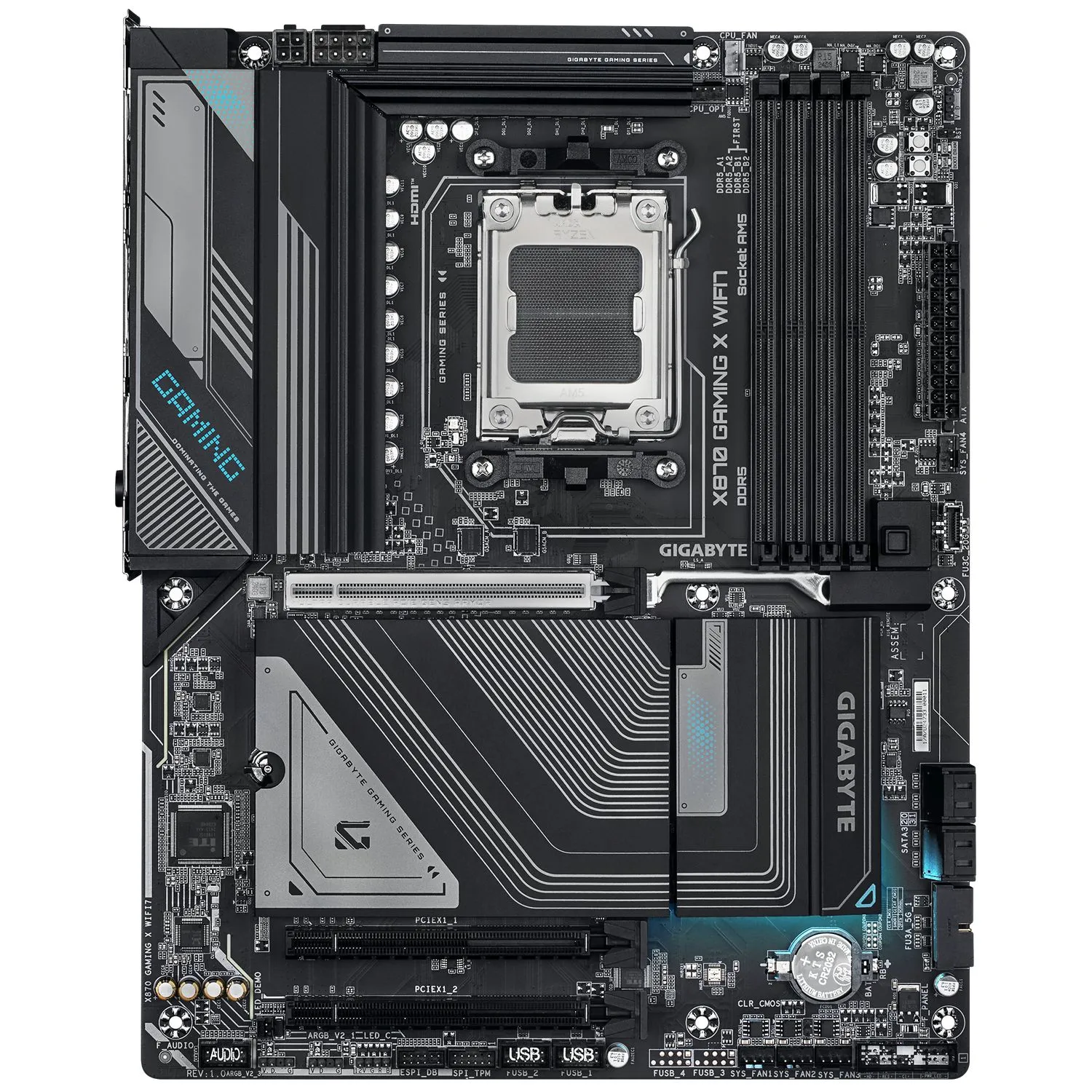

GIGABYTE X870 GAMING X WIFI7 - Motherboard, AMD X870, Socket AM5, ATX

Unleash gaming power with the GIGABYTE X870 GAMING X WIFI7 motherboard!
Delivery
Payment options
Our advantages
  • — Warranty: 3 Years Warranty
  • — Return and exchange up to 14 days
  • — Best price
Find similar
Rare part★★★★★ GIGABYTE X870 GAMING X WIFI7 - Motherboard, AMD X870, Socket AM5, ATX GIGABYTE X870 GAMING X WIFI7 -…Processor socketAM5Motherboard chipsetAMD X870Supported memory typesDDR5-SDRAM 7 more parts to a full buildEquip →

Key specifications

  • BrandGigabyte
  • Processor socketAM5
  • Motherboard chipsetAMD X870
  • Supported memory typesDDR5-SDRAM
  • Number of memory slots4
  • Number of M.2 (M) slots3
  • Maximum internal memory256 GB
  • Compatible processor seriesAMD Ryzen 7
  • Top Wi-Fi standardWi-Fi 7 (802.11be)
  • BluetoothYes
  • Video outputsHDMI, DisplayPort
  • USB-C ports (rear)USB4
  • Performance profileAMD EXPO
  • Product colorBlack
  • Weight2.23 kg
  • Warranty3 Years Warranty

GIGABYTE X870 GAMING X WIFI7 - Motherboard Overview

Experience unparalleled gaming performance and productivity with the GIGABYTE X870 GAMING X WIFI7, a cutting-edge motherboard designed to support AMD's latest processor families. Built on the AMD X870 chipset and featuring an AM5 socket, this ATX form factor motherboard offers extensive functionalities tailored for both hardcore gamers and professionals alike.

Key Features

  • AMD Socket AM5: Compatible with AMD Ryzen 7000-9000 series processors, ensuring top-tier processing power.
  • Advanced VRM Design: Digital double VRM solution with a robust 16+2+2 phase setup for exceptional power delivery.
  • DDR5 Memory Support: Dual-channel DDR5 compatibility with 4 DIMMs, harnessing AMD EXPO technology for optimal performance.
  • WIFI EZ-Plug: Streamlined design for easy installation of the Wi-Fi antenna, promoting hassle-free connectivity.
  • EZ-Latch Plus: Convenient PCIe and M.2 slots that feature a quick-release and screwless design for a user-friendly experience.
  • M.2 Screwless Radiators: The innovative EZ-Latch Click design ensures better heat dissipation without the need for screws.
  • Optimal Cooling Solutions: Equipped with VRM Thermal Armor Advanced and M.2 Thermal Guard EX for effective heat management.
  • High-Speed Connectivity: Features 2.5 GbE LAN and Wi-Fi 7 capabilities with high-gain antennas to ensure fast and reliable network connections.
  • USB4 Type-C Ports: Dual USB4 Type-C ports provide transfer speeds up to 40 Gbps for efficient data transfer and Ultra-HD display connectivity.
  • Enhanced Storage Options: Three M.2 slots, including one PCIe 5.0 x4, allowing for lightning-fast data access.

Revolutionize Your Gaming Setup

The GIGABYTE X870 GAMING X WIFI7 doesn't just elevate your system's performance; it revolutionizes your gaming experience. The PCIe 5.0 x16 and PCIe 5.0/4.0 M.2 slot support allows for seamless integration with next-gen devices, delivering superior performance levels. With Wi-Fi 7, you can immerse yourself in virtual reality like never before, benefitting from exceptional bandwidth and minimal latency that put you ahead of the competition.

Whether you are gaming, video editing, or multitasking, the GIGABYTE X870 GAMING X WIFI7 motherboard is engineered for efficiency and speed, making it an essential component for your high-performance build.

Find similar by key specs

Tick the specs you need — we will find similar products Find similar →

All specifications 83

Main4
Brand
Gigabyte
Warranty
3 Years Warranty
Product code
GX870GAMINGXWIFI7
EAN/UPC code
4719331865368
Processor4
Processor socket
AM5
Compatible processor series
AMD Ryzen 7
Maximum internal memory supported by processor
256 GB
Processor manufacturer
AMD
Performance3
DirectX version
12.0
Motherboard chipset
AMD X870
Performance profile
AMD EXPO
Memory8
Maximum internal memory
256 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory clock speed (max)
8000 MHz
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Supported memory module capacities
1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Supported memory types
DDR5-SDRAM
Expansion slots3
Number of M.2 (M) slots
3
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 slots
2
Network8
Bluetooth
Yes
Bluetooth version
5.4
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller model
MediaTek MT7925

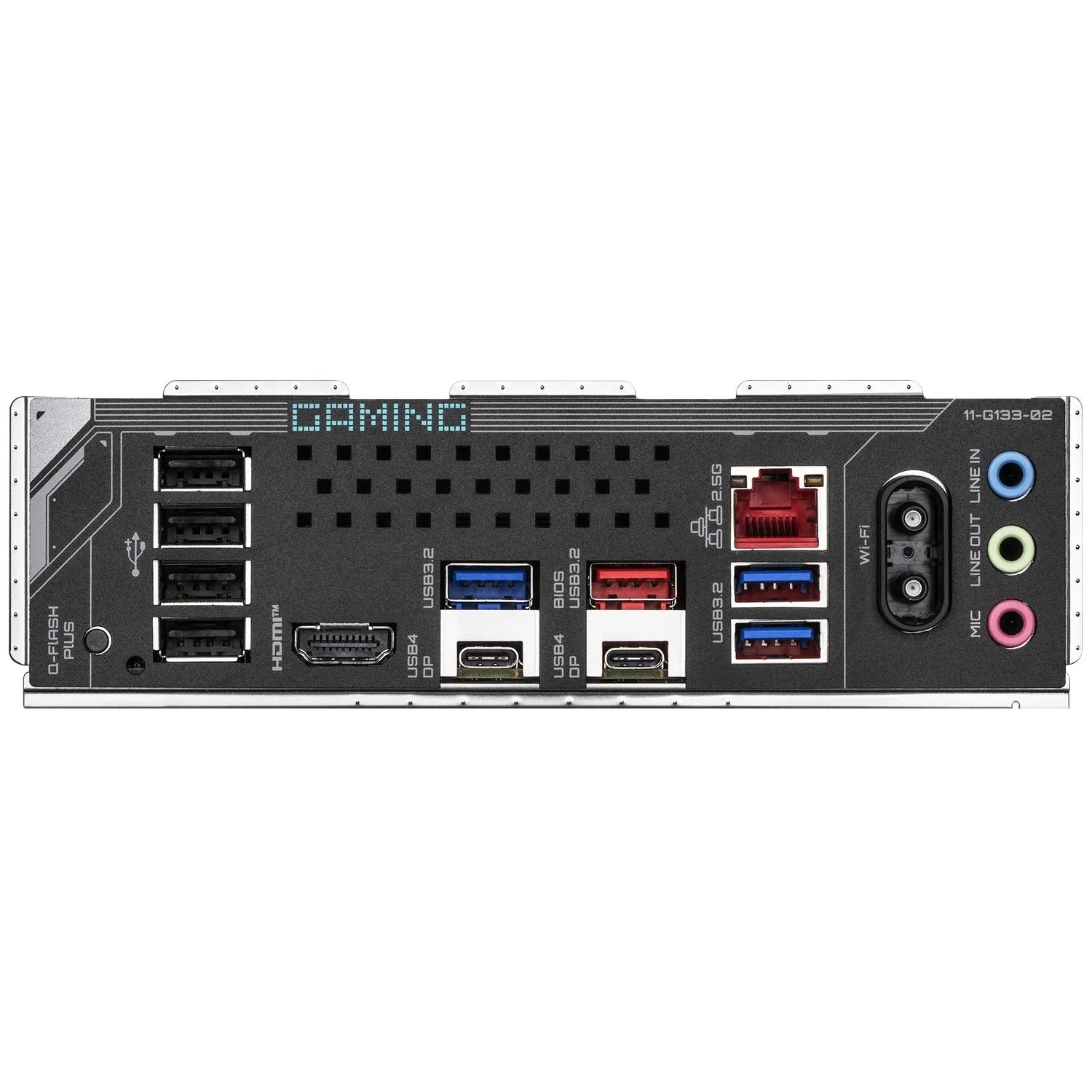

Ports & interfaces10
DisplayPorts quantity
2
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
Microphone in
Yes
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB-C ports (rear)
USB4
USB4 Gen 2x2 ports quantity
2
Video outputs
HDMIDisplayPort
General1
Bundled software
Norton Internet Security (OEM version), LAN bandwidth management software
Battery5
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
BIOS7
ACPI version
5.0
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS button
Yes
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System management BIOS (SMBIOS) version
2.7
Design2
Country of origin
China
Product color
Black
Features4
Audio output channels
7.1 channels
Motherboard chipset family
AMD
PC health monitoring
Fan, Temperature, Voltage
Windows operating systems supported
Windows 11 x64
Internal I/O9
ATX Power connector (24-pin)
Yes
EPS power connector (8-pin)
Yes
Number of SATA III connectors
4
RGB LED pin header
Yes
Total number of SATA connectors
4
TPM connector
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2x2 connectors
1
Logistics data1
Products per shipping (inner) case
1 pc(s)
Packaging content1
Batteries included
Yes
Packaging data3
Package depth
270 mm
Package height
80 mm
Package width
335 mm
Rear panel I/O ports1
S/PDIF out port
Yes
Storage controllers6
Number of HDDs supported
7
Number of storage drives supported
4
RAID levels
0, 1, 10
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III
Supported storage drive types
HDD & SSD
Technical details1
Warranty period
3 year(s)
Weight & dimensions2
Depth
244 mm
Width
305 mm
Nothing found

Automated video search by product name (the results maybe not the some as product in our store).

Manual (mmo_122372370_1726428064_7412_3524864.pdf, 1,599 Kb) [Download]
