Lenovo Legion T5 28IMB05 - 90NC00GYYS - I7-10700, 16GB, 1TB HDD + 512GB SSD, RTX 2060 6GB, DOS
90NC00GYYS
Delivery
Payment options
Our advantages
- — Warranty: 3 Years On-Site Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
- Processor familyIntel Core i7
- Processor modelIntel Core I7-10700
- Processor cores8
- Processor threads16
- Processor frequency2.9 GHz
- Internal memory16 GB
- Internal memory typeDDR4-SDRAM
- Total storage capacity1 TB + 512 GB
- On-board graphics adapter modelIntel UHD Graphics 630
- Discrete graphics card modelNVIDIA GeForce RTX 2060
- Operating system installedFreeDOS
- Weight14 kg
- All features
Lenovo Legion T5 28IMB05 - Unleash Your Gaming Potential
The Lenovo Legion T5 28IMB05 is a powerhouse desktop designed for gamers and professionals alike. Equipped with cutting-edge technology, this gaming rig delivers exceptional performance, stunning graphics, and reliable storage options to elevate your gaming and multitasking experience.
Key Specifications
- Processor: Intel Core i7-10700 (8-core, 16-thread, 2.9GHz base / 4.8GHz turbo, 16MB cache)
- Chipset: Intel B460
- Memory: 16GB DDR4-3200 UDIMM ARMOR (expandable up to 128GB with 3 free slots)
- Storage: 1TB HDD (7200 RPM) + 512GB SSD (M.2 2280 PCIe 3.0 NVMe)
- Graphics Card: NVIDIA GeForce RTX 2060 (6GB GDDR6, DirectX 12)
- Operating System: DOS
- Wireless Connectivity: Wi-Fi 11ax (2x2) + Bluetooth 5.0
- Power Supply: 650W Energy Star
Connectivity Options
Front Ports:
- 2 x USB 3.2 Gen 1
- 1 x Headphone/Microphone combo jack (3.5mm)

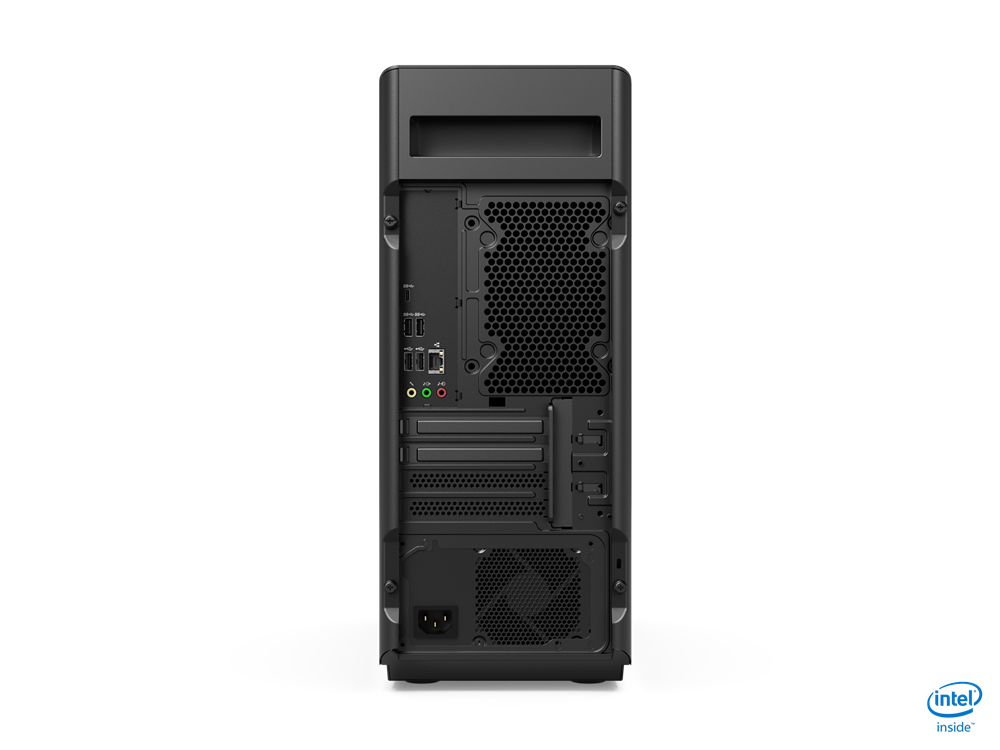

Rear Ports:
- 2 x USB 2.0
- 2 x USB 3.2 Gen 1
- 1 x USB-C 3.2 Gen 1
- 1 x Ethernet (RJ-45)
- 1 x Microphone (3.5mm)
- 1 x Line-in (3.5mm)
- 1 x Line-out (3.5mm)
- 1 x Power connector
Advanced Features
Experience superior cooling with a system fan setup that includes 2 front fans and 1 rear fan for optimal airflow. The chassis features a transparent side cover for visibility into the stunning internal components and RGB lighting that adds a touch of flair to your gaming setup.
Dimensions & Weight
- Measurements: 184.5 x 455.8 x 457 mm
- Weight: Starting at 14 kg
Conclusion
The Lenovo Legion T5 28IMB05 is more than just a desktop; it's an all-encompassing gaming and productivity machine crafted for those who demand high performance. With its robust specs and sleek design, this desktop is ready to tackle any challenge you throw its way.
Main
Brand
Lenovo
Warranty
3 Years On-Site Warranty
Product code
90NC00GYYS
EAN/UPC code
0194778315173
Certificates
Certification
ErP lot 3
Design
Colour name
Phantom Black
Housing material
Metal
Placement supported
Vertical
Volume
28 L
Product colour
Black
Features
Chassis type
Tower
Internal memory type
DDR4-SDRAM
Graphics
Maximum on-board graphics adapter memory
64 GB
Number of discrete graphics adapters
1
Number of displays supported (on-board graphics)
3
On-board graphics adapter
Yes
On-board graphics adapter base frequency
350 MHz
On-board graphics adapter DirectX version
12.0
On-board graphics adapter dynamic frequency (max)
1200 MHz
On-board graphics adapter ID
0x9BC5
On-board graphics adapter model
Intel UHD Graphics 630
On-board graphics adapter OpenGL version
4.5
Discrete graphics card model
NVIDIA GeForce RTX 2060
Discrete graphics card memory
6 GB
Memory
Maximum internal memory
128 GB
Memory channels
Dual-channel
Memory slots
4x DIMM
Internal memory
16 GB
Network
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.0
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
1000 Mbit/s
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Packaging content
Mouse included
Yes
Performance
Audio chip
Realtek ALC887
Motherboard chipset
Intel B460
Password protection
Yes
Password protection type
Power on, Supervisor
Product type
PC
Trusted Platform Module (TPM)
Yes
Ports & interfaces
Combo headphone/mic port
Yes
Ethernet LAN (RJ-45) ports
1
Headphone outputs
1
Line-out
Yes
Microphone in
Yes
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Processor
Maximum internal memory supported by processor
128 GB
Maximum number of PCI Express lanes
16
Memory bandwidth supported by processor (max)
45.8 GB/s
Memory clock speeds supported by processor
2933 MHz
Memory types supported by processor
DDR4-SDRAM
Number of processors installed
1
PCI Express configurations
1x16,2x8,1x8+2x4
PCI Express slots version
3.0
Processor boost frequency
4.8 GHz
Processor cache
16 MB
Processor cache type
Smart Cache
Processor codename
Comet Lake
Processor cores
8
Processor family
Intel Core i7
Processor frequency
2.9 GHz
Processor lithography
14 nm
Processor manufacturer
Intel
Processor operating modes
64-bit
Processor socket
LGA 1200 (Socket H5)
Processor threads
16
System bus rate
8 GT/s
Thermal Design Power (TDP)
65 W
Tjunction
100
Processor model
Intel Core I7-10700
Processor special features
CPU configuration (max)
1
Enhanced Intel SpeedStep Technology
Yes
Execute Disable Bit
Yes
Idle States
Yes
Intel 64
Yes
Intel Clear Video Technology
Yes
Intel Stable Image Platform Program (SIPP)
Yes
Intel Trusted Execution Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® Identity Protection Technology (Intel® IPT)
Yes
Intel® OS Guard
Yes
Intel® Quick Sync Video Technology
Yes
Intel® Secure Key
Yes
Processor ARK ID
199316
Processor package size
37.5 x 37.5 mm
Scalability
1S
Supported instruction sets
SSE4.1,SSE4.2,AVX 2.0
Thermal Monitoring Technologies
Yes
Thermal solution specification
PCG 2015C
Software
Operating system installed
FreeDOS
Storage
Number of HDDs installed
1
Number of SSDs installed
1
Number of storage drives installed
2
Storage media
HDD+SSD
Total HDDs capacity
1000 GB
Total storage capacity
1 TB + 512 GB
Technical details
Sustainability certificates
RoHS, ENERGY STAR
Weight & dimensions
Depth
455.8 mm
Product Height
457 mm
Weight
14 kg
Width
184.5 mm
