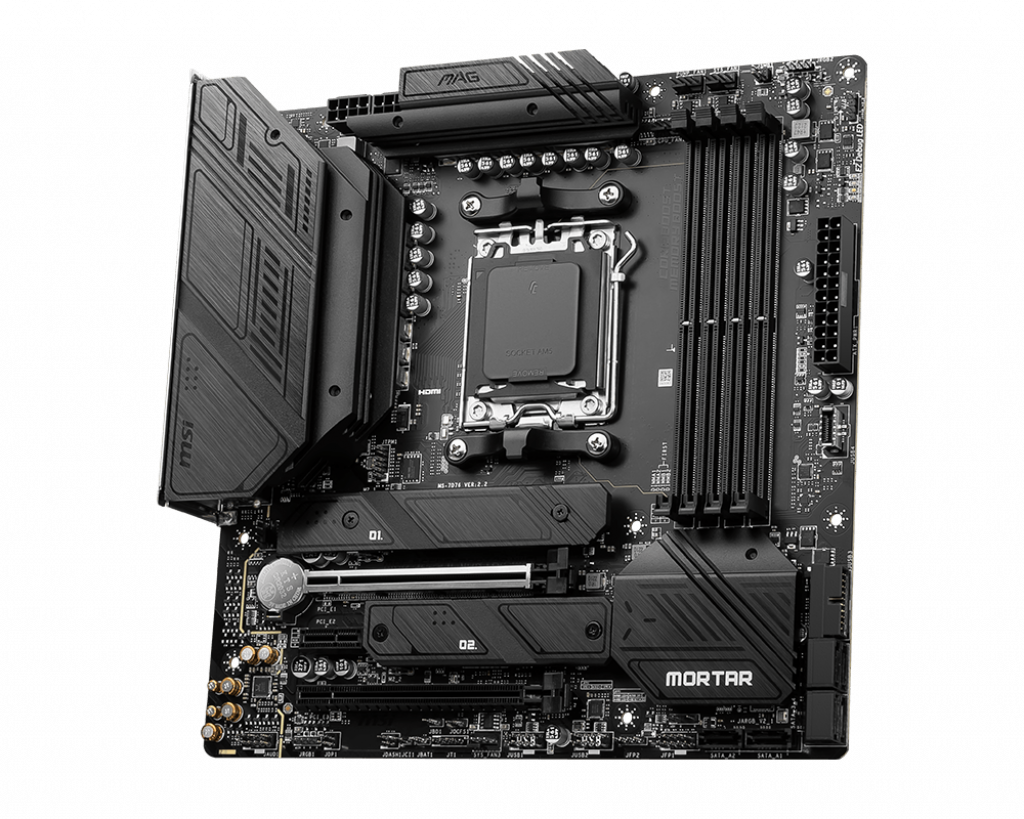

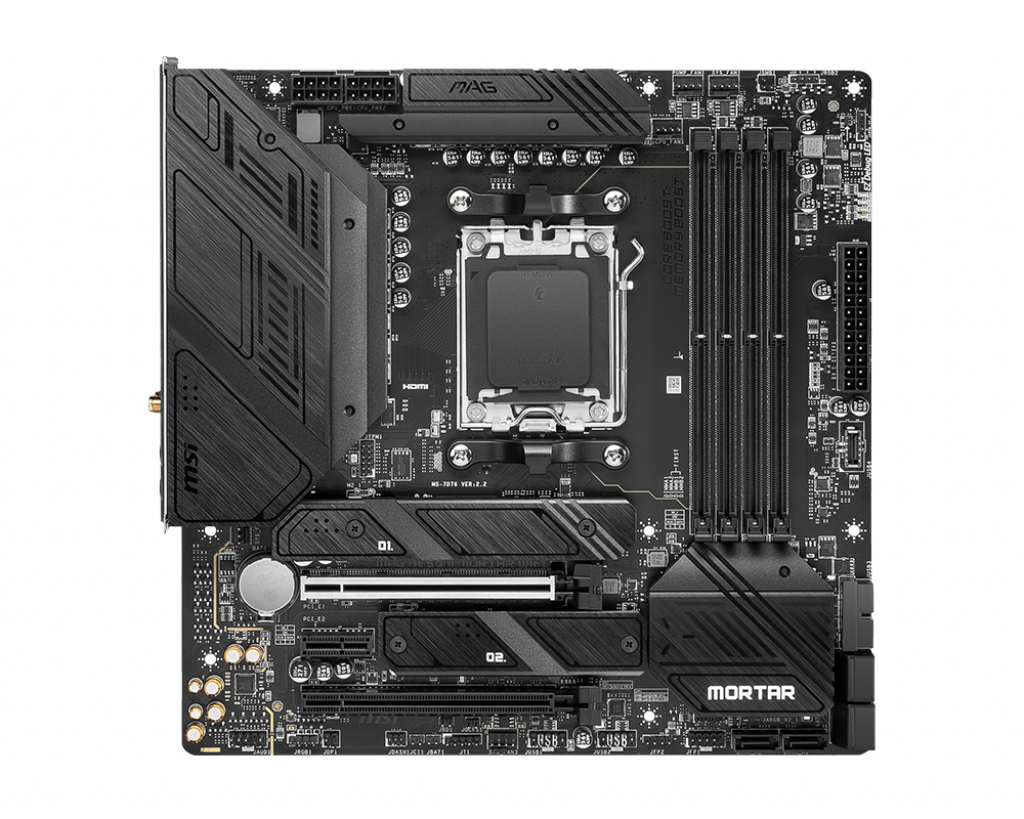

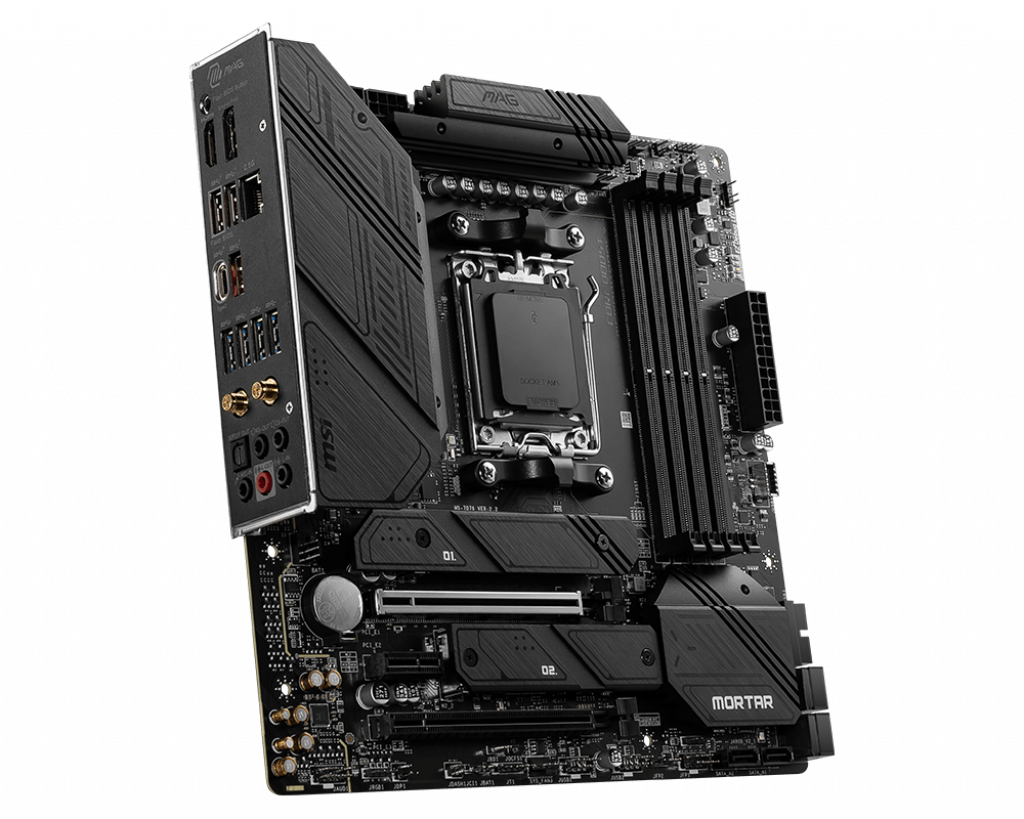

MSI MAG B650M Mortar WIFI - Motherboard, AMD B650, Socket AM5, Micro ATX
4711377010207
Delivery
Payment options
Our advantages
- — Warranty: 1 year warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
- Processor socketSocket AM5
- Compatible processor seriesAMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
- Motherboard chipsetAMD B650
- Supported memory typesDDR5-SDRAM
- Number of memory slots4
- All features
Unite as one
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Manufacturer site
Main
Brand
MSI
Warranty
1 year warranty
Product code
4711377010207
EAN/UPC code
4711377010207
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
1
Features
Audio chip
Realtek ALC4080
Audio output channels
7.1 channels
Motherboard chipset
AMD B650
Motherboard chipset family
AMD
PC health monitoring
Fan
Internal I/O
ATX Power connector (24-pin)
Yes
Chassis intrusion connector
Yes
CPU fan connector
Yes
Front panel audio connector
Yes
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Memory
Maximum internal memory
128 GB
Number of memory slots
4
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory types
DDR5-SDRAM
Network
Bluetooth
Yes
Bluetooth version
5.2
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125B
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Processor
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen

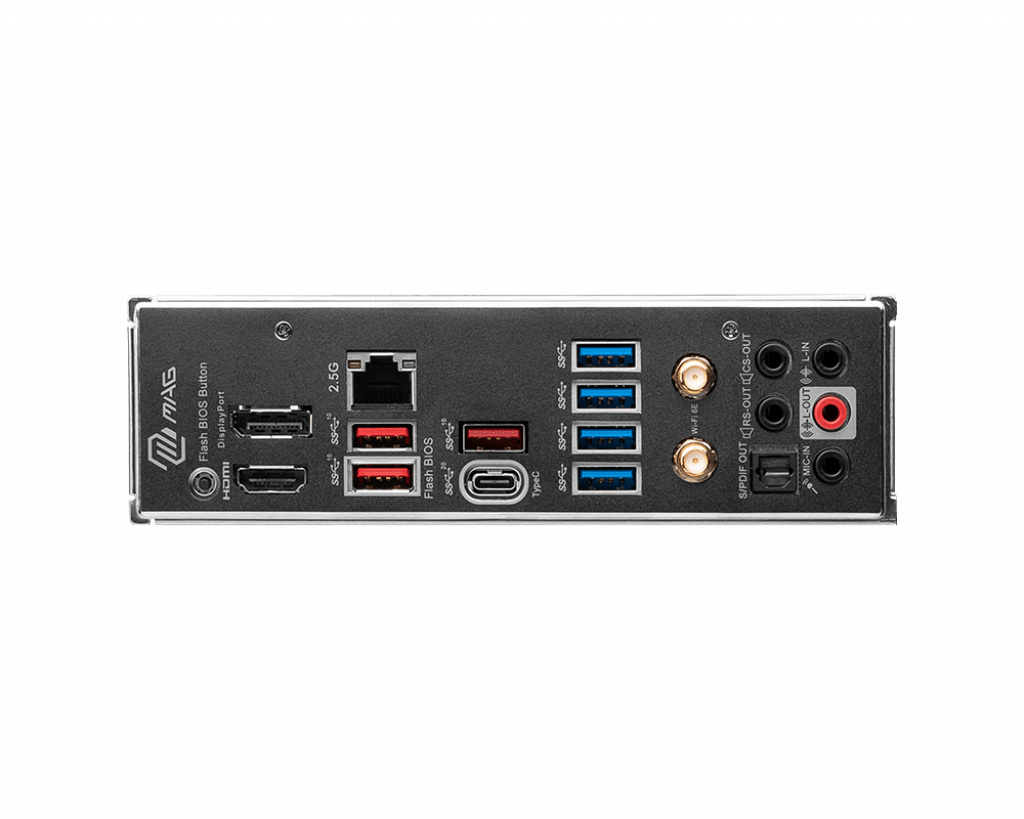

Rear panel I/O ports
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2x2 Type-C ports quantity
1
Storage controllers
RAID levels
0, 1, 10
Supported storage drive interfaces
M.2, SATA
Weight & dimensions
Depth
243.8 mm
Width
243.8 mm
