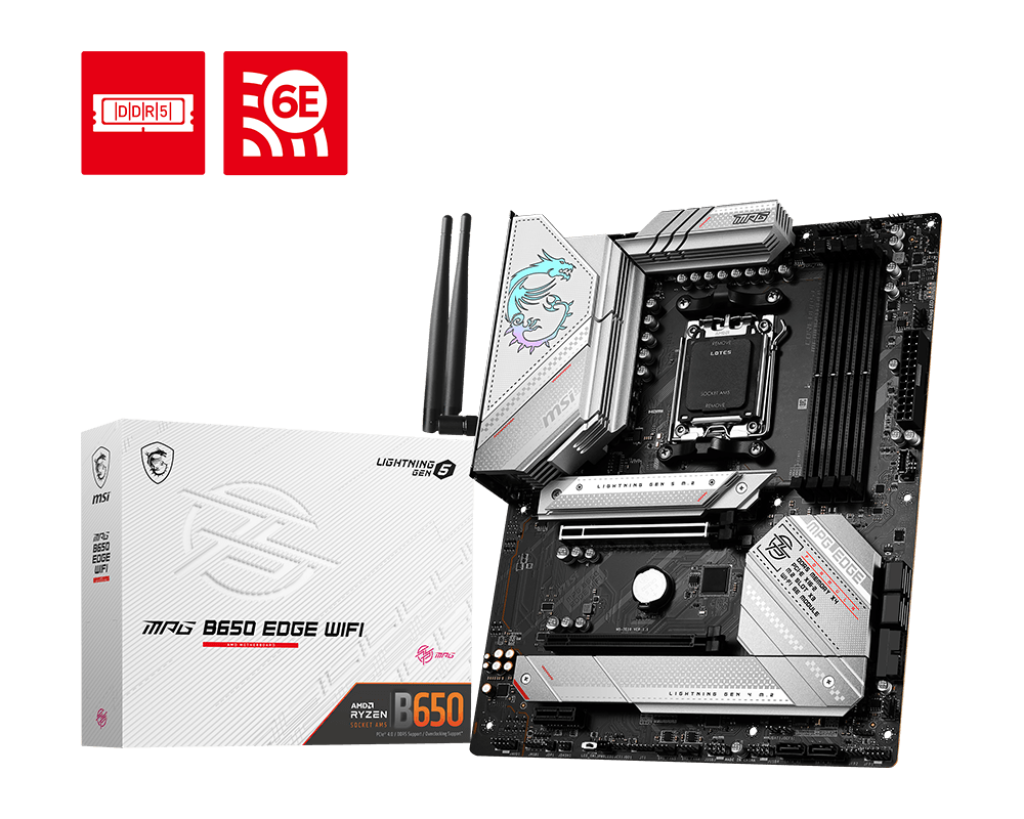

Install the appMSI MPG B650 EDGE WIFI - Motherboard, AMD B650, Socket AM5, ATX
- — Warranty: 1 Year Warranty
- — Return and exchange up to 31 days
- — Best price
MSI MPG B650 EDGE WIFI -…Processor socketAM5Motherboard chipsetAMD B650Supported memory typesDDR5-SDRAM
7 more parts to a full buildEquip →
Key specifications
- BrandMSI
- Processor socketAM5
- Motherboard chipsetAMD B650
- Motherboard form factorATX
- Supported memory typesDDR5-SDRAM
- Number of memory slots4
- Number of M.2 (M) slots3
- Maximum internal memory128 GB
- Compatible processor seriesAMD Ryzen 7000 Series
- Top Wi-Fi standardWi-Fi 6E (802.11ax)
- BluetoothYes
- Video outputsHDMI
- USB-C ports (rear)USB 3.2 Gen 2x2
- Warranty1 Year Warranty
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
M.2 thermal accessory. Keeps M.2 SSDss safe while preventing throttling, making them run faster.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
6-Layer Server Grade PCB
6-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.
REINFORCED, HEAVY SOLDERED CONNECTIONS
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
Manufacturer site
All specifications 50
Main4
- Brand
- MSI
- Warranty
- 1 Year Warranty
- Product code
- 4711377010191
- EAN/UPC code
- 4711377010191
Processor3
Performance1
- Motherboard chipset
- AMD B650
Features4
- Audio output channels
- 7.1 channels
- Motherboard chipset family
- AMD
- Motherboard form factor
- ATX
- PC health monitoring
- Fan
Memory4
- Maximum internal memory
- 128 GB
- Number of memory slots
- 4
- Supported memory clock speeds
- 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 MHz
- Supported memory types
- DDR5-SDRAM
Expansion slots2
- Number of M.2 (M) slots
- 3
- PCI Express x16 (Gen 3.x) slots
- 1
Network8
- Bluetooth
- Yes
- Bluetooth version
- 5.2
- Ethernet interface type
- 2.5 Gigabit Ethernet
- Ethernet LAN
- Yes
- LAN controller
- Realtek RTL8125-BG
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Wi-Fi
- Yes
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Ports & interfaces12
- Ethernet LAN (RJ-45) ports
- 1
- HDMI ports quantity
- 1
- HDMI version
- 2.1
- Headphone outputs
- 1
- Line-in
- Yes
- Microphone in
- Yes
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB 3.2 Gen 2x2 Type-C ports quantity
- 1
- USB-C ports (rear)
- USB 3.2 Gen 2x2
- Video outputs
- HDMI
Audio1
- Audio chip
- Realtek ALC4080
Internal I/O7
- ATX Power connector (24-pin)
- Yes
- Chassis intrusion connector
- Yes
- CPU fan connector
- Yes
- Front panel audio connector
- Yes
- Front panel connector
- Yes
- USB 2.0 connectors
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
Storage controllers2
- RAID levels
- 0, 1, 10
- Supported storage drive interfaces
- M.2, SATA
Weight & dimensions2
- Depth
- 243.8 mm
- Width
- 304.8 mm
