MSI Z790 PROJECT ZERO - Motherboard, Intel Z790, LGA 1700, ATX
4711377154024
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
- Processor socketLGA 1700 (Socket V)
- Compatible processor seriesIntel Celeron, Intel Pentium, Intel Pentium Gold
- Motherboard chipsetIntel Z790
- Supported memory typesDDR5-SDRAM
- Number of memory slots4
- Motherboard form factorATX
- All features
The Z790 PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th /13th/ 12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 7 solution. This makes it an excellent choice among ATX motherboards.
ABSOLUTE SIMPLICITY

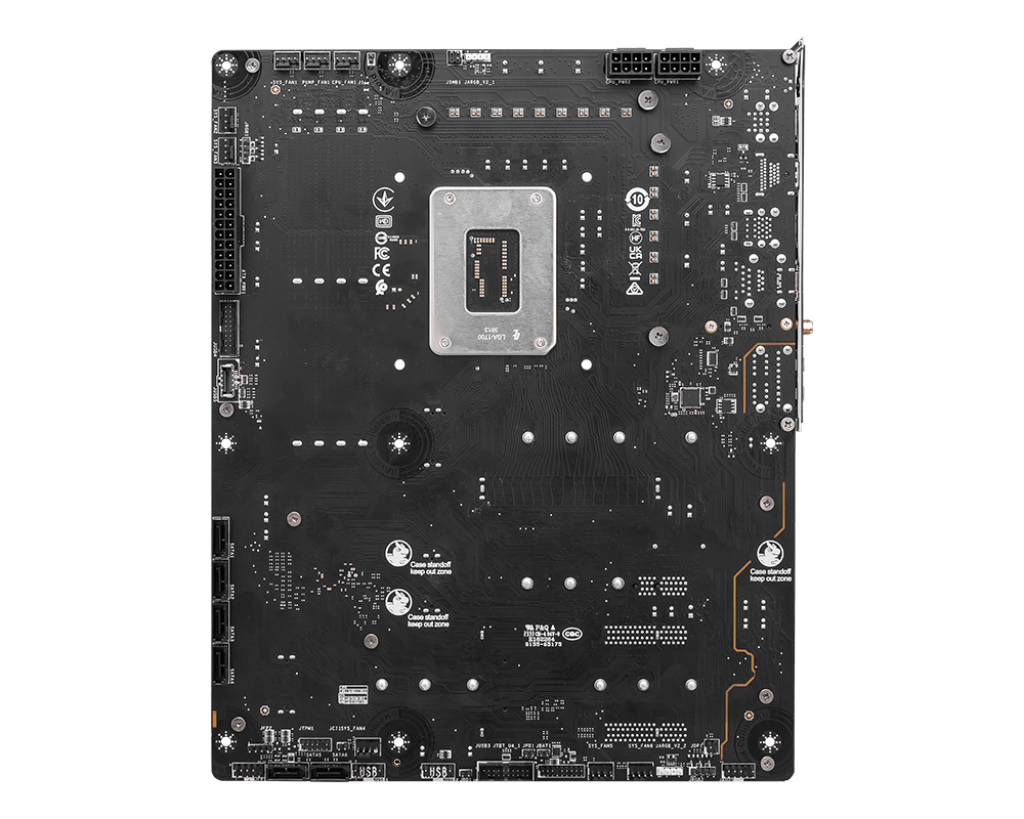

Z790 PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
Manufacturer site
Main
Brand
MSI
Warranty
1 Year Warranty
Product code
4711377154024
EAN/UPC code
4711377154024
BIOS
ACPI version
6.4
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
System management BIOS (SMBIOS) version
3.5
Expansion slots
Number of M.2 (M) slots
4
Features
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Motherboard chipset
Intel Z790
Motherboard chipset family
Intel
Motherboard form factor
ATX
Product colour
Grey
Internal I/O
Number of SATA III connectors
6
Total number of SATA connectors
6
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Memory
Maximum internal memory
256 GB
Memory channels
Dual-channel
Memory slots type
SO-DIMM
Number of memory slots
4
Supported memory clock speed (max)
7200 MHz
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory types
DDR5-SDRAM
Network
Bluetooth
Yes
Bluetooth version
5.4
Ethernet interface type
2.5 Gigabit Ethernet
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Performance
Windows operating systems supported
Windows 10 x64, Windows 11 Enterprise x64
Processor
Maximum internal memory supported by processor
256 GB
Processor manufacturer
Intel
Processor socket
LGA 1700 (Socket V)
Compatible processor series
Intel Celeron, Intel Pentium, Intel Pentium Gold

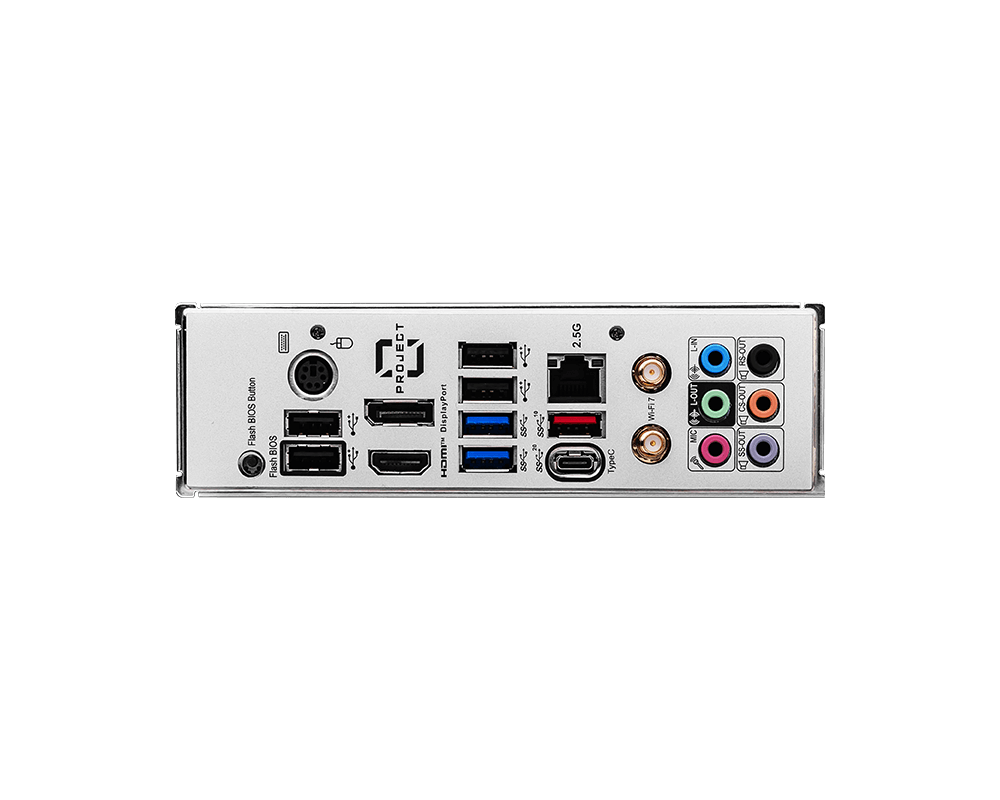

Rear panel I/O ports
DisplayPort version
1.4
DisplayPorts quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
2
Storage controllers
Number of HDDs supported
10
Number of storage drives supported
4
RAID levels
0, 1, 5, 10
RAID support
Yes
Supported storage drive interfaces
PCI Express 4.0, PCI Express 5.0
Weight & dimensions
Depth
304.8 mm
Width
243.8 mm
Automated video search by product name (the results maybe not the some as product in our store).
