NZXT H5 Flow (2024) - Gaming PC Case, Compact, Mid-Tower, ATX, Black
CC-H52FB-01
Delivery
Payment options
Our advantages
- — Warranty: 3 Months Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
- BrandNZXT
- Form factorMid Tower
- Supported motherboard form factorsE-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
- Max GPU Length410 mm
- Maximum CPU cooler height170 mm
- Number of expansion slots7
- Weight7.28 kg
- Warranty3 Months Warranty
- All features

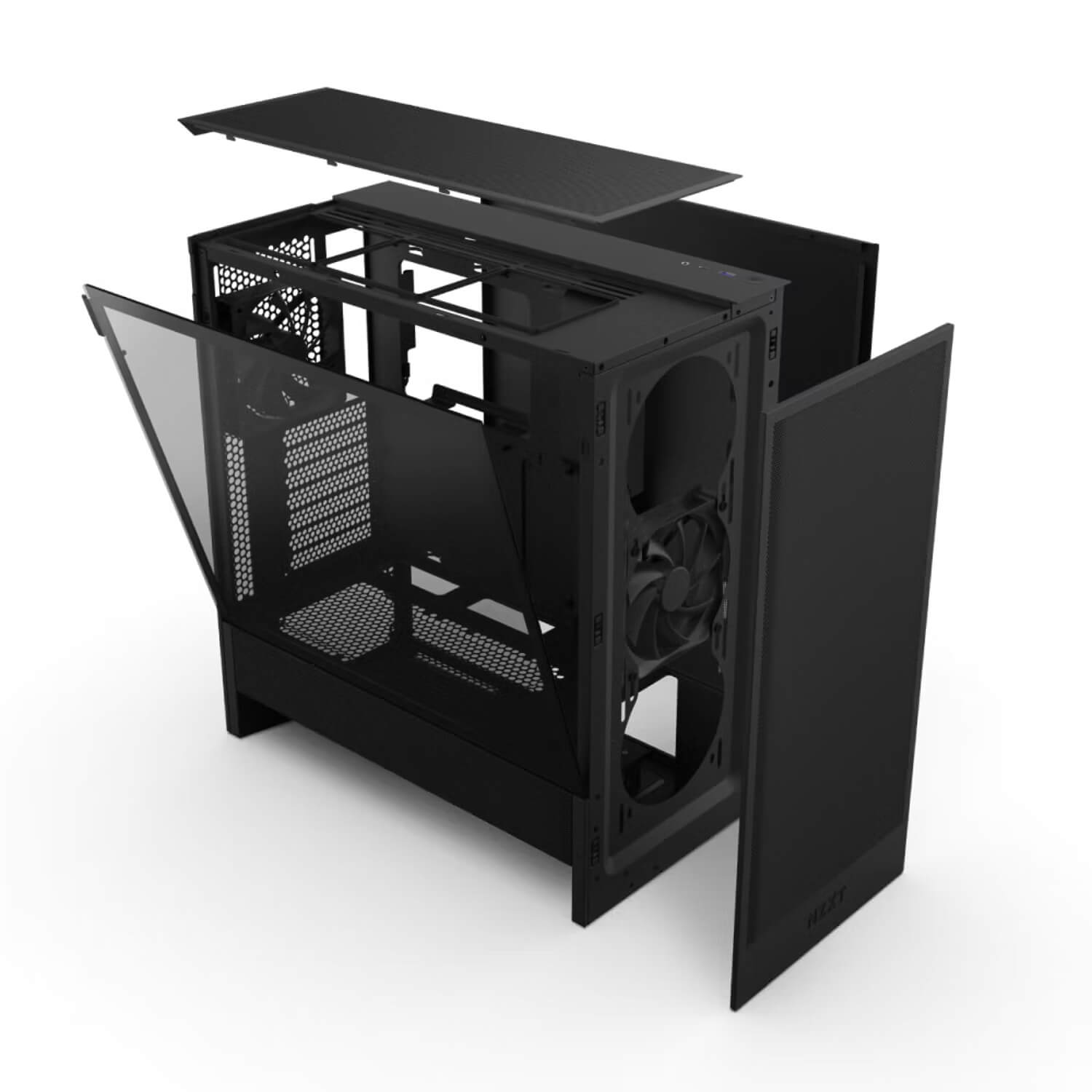

The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
Ultra-fine mesh on the top, front, and panels creates maximum airflow and filters dust.
Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.

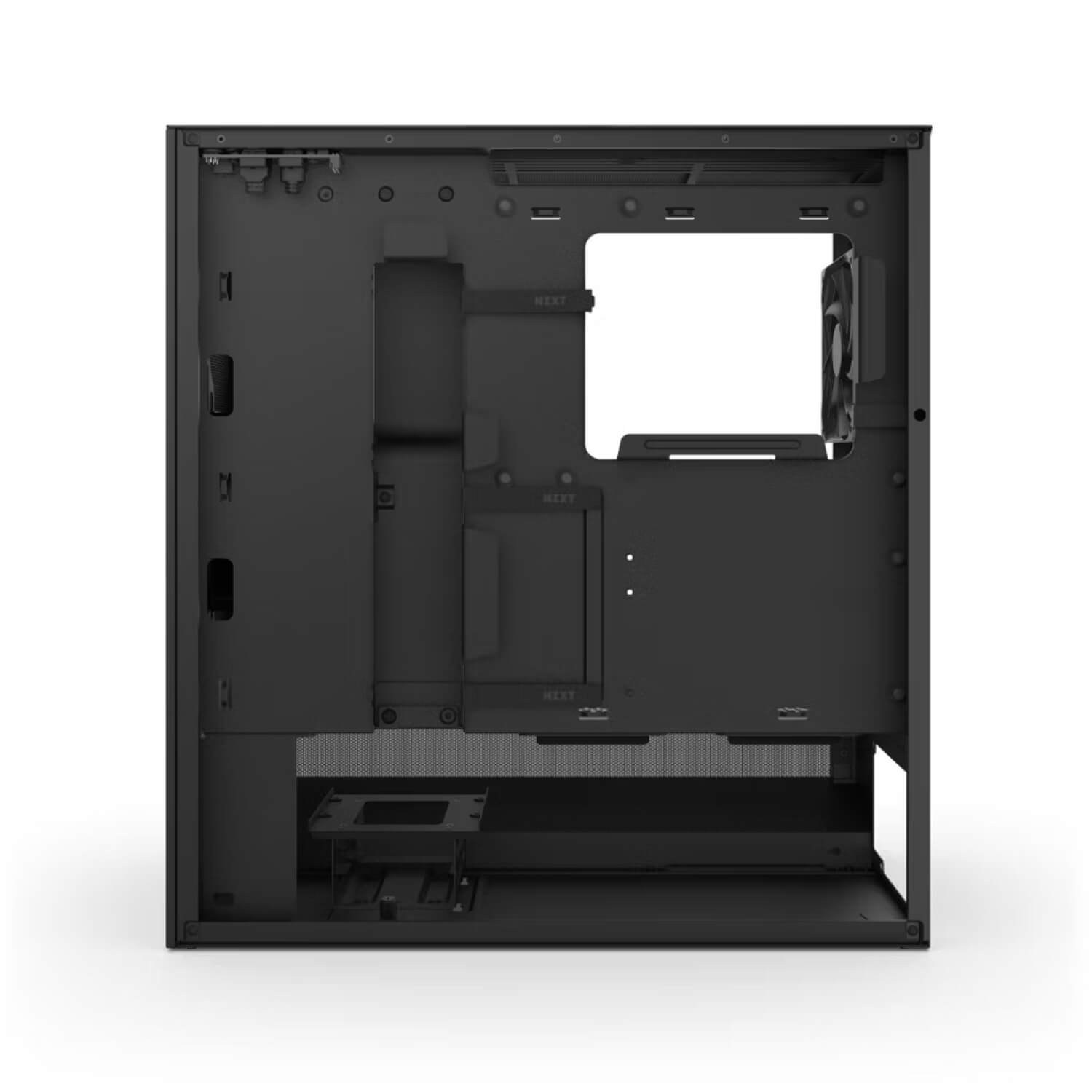

Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Main
Brand
NZXT
Warranty
3 Months Warranty
Product code
CC-H52FB-01
Cooling
Bottom fans supported
2 x 120 mm
Fan airflow
60.2 CFM
Fan noise level
24.1 dBA
Fan speed
1350 ± 150 RPM
Front fans supported
3 x 120 mm / 2 x 140 mm
Front radiator supported
360 mm
Rear fans installed
1x 120 mm
Rear fans supported
1 x 120mm
Top fans supported
2 x 120 mm / 2 x 140 mm
Top radiator sizes supported
240 mm (280 mm with low-profile memory)
Top radiator supported
240 mm
Design
Cable management
28.7 mm
Case material
SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Form factor
Mid Tower
Max GPU Length
410 mm
Max PSU Length
200 mm
Maximum CPU cooler height
170 mm
Number of 2.5" bays
2
Number of 3.5" bays
1
Number of expansion slots
7
Supported motherboard form factors
E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
Performance
Fan static pressure
1.05 mm-H₂O
Ports & interfaces
Fan connector
3-pin
I/O ports
USB 3.2 Type-A, USB 3.2 Type-C, Headset Audio Jack
Weight & dimensions
Product depth
430 mm
Product height
465 mm
Product weight
7.28 kg
Product width
225 mm
