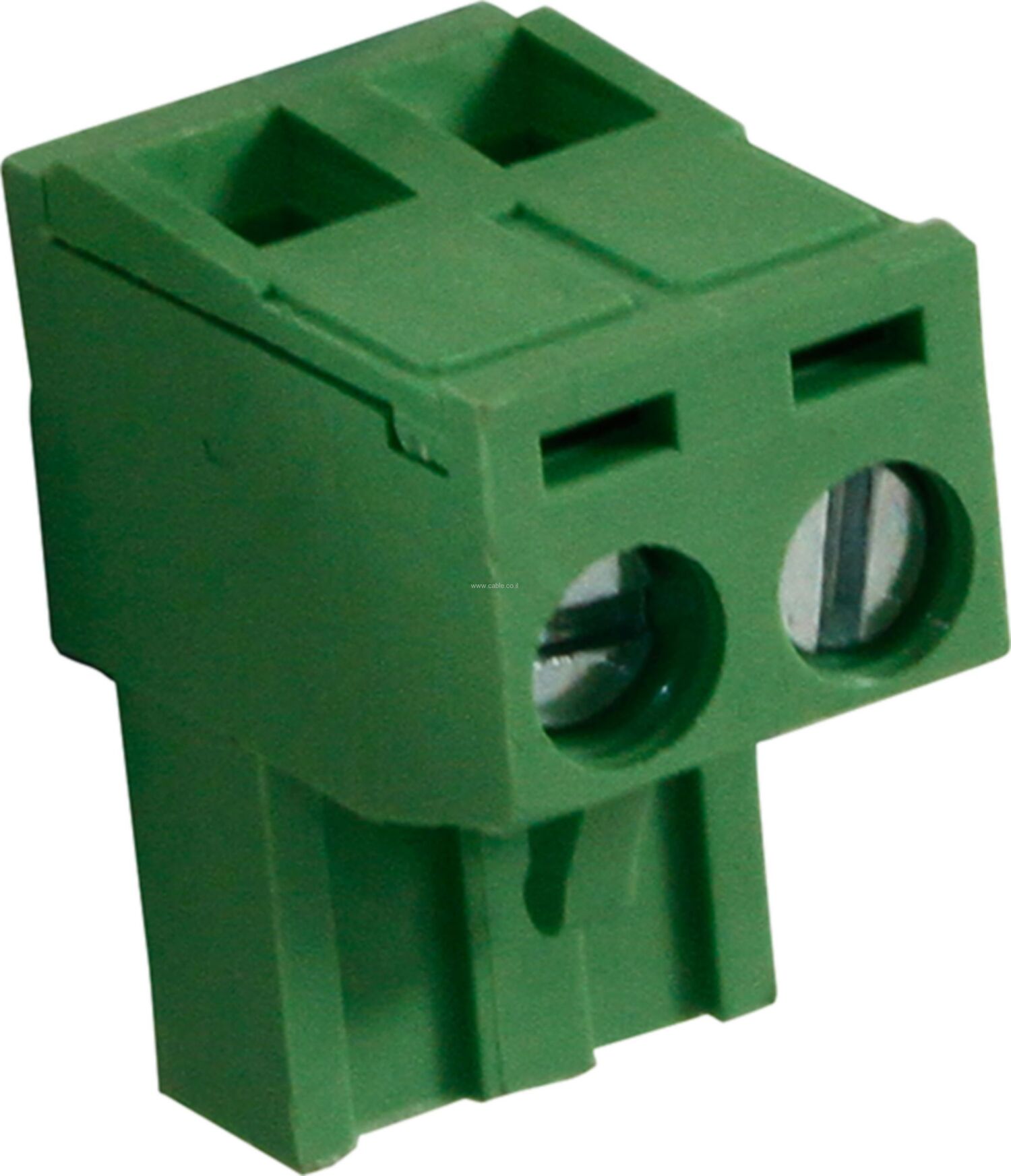

RND Connect RND 205-00177 - Female Connector Screw Terminal Screw Connection 2P
CA-860150
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
Features
- Polarised Mouldings
- Withstand Voltage - AC1500V/1min
- Pin/Terminal - Tin plated brass
- Screw/Torque - M2.5 Steel, Nickel Plated 0.4Nm
- Recommended PCB hole size ø1.7 mm
- Guided pin alignment
- cUL approved
Specifications
- Combustibility class: UL 94 V-0
- Contact resistance: 20 mΩ
- Height: 15 mm
- Cross-section min.: 0.33 mm²
- Rated current to UL: 15 A
- Connection cross-section: 0.33-2 mm² (22-14AWG)
- Max. temperature: +105 °C
- Cross-section max.: 2.0 mm²
- Poles: 2
- Component type: Wire Socket 90°
- Rated current to EN: 15 A
- Min. Temperature: -40 °C
- Connector Termination: Screw Terminal
- Insulation resistance: 1000 V / 5000 MΩ
- Connection direction: Vertical
- Rated voltage to UL: 300 V
- Rated voltage to EN: 300 V
- CalcColHead: 30043003
- Rating to EN: 15 A @ 300 V
- Temperature range: -40...+105 °C
- Rating to UL: 15 A @ 300 V
- Termination type: Screw Connection
- Pitch: 5.08
- A: 10.2
- Colour: Green
- Width: 18.1 mm
- Material: PA 66, UL94-V0
- Gender of contacts: Female
Main
Brand
RND Connect
Product code
RND 205-00177
