StarTech Triple Monitor USB-C Dock

Laptop Docking Station | Mac & Windows | 60W Power Delivery| 4K 60 DP + HDMI

This TAA compliant 4K USB-C dock for Mac and Windows laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell XPS 15, Chromebook Pixel, or another USB-C enabled PC laptop.

The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).

Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

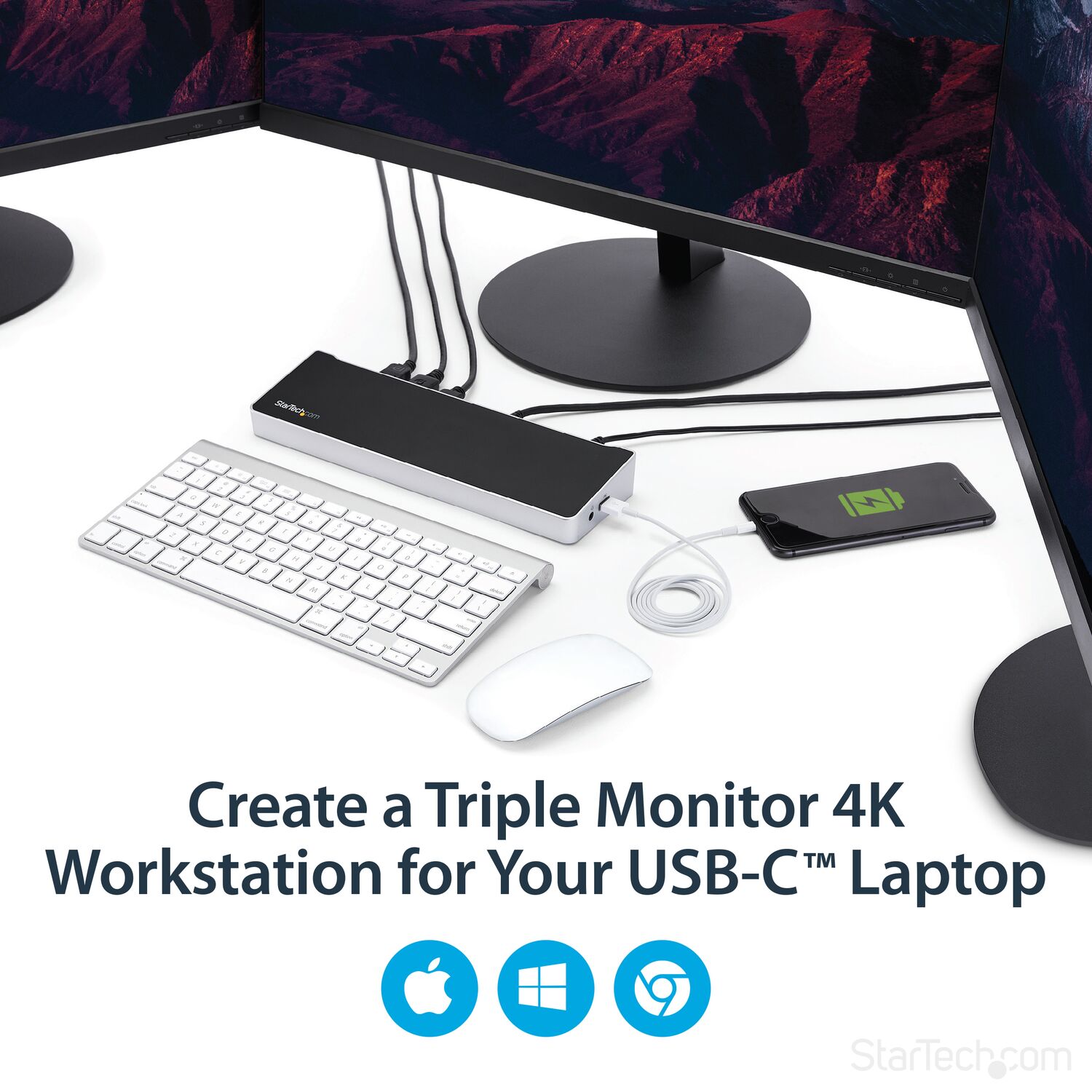

Enhance Productivity

The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:

2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and

1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.

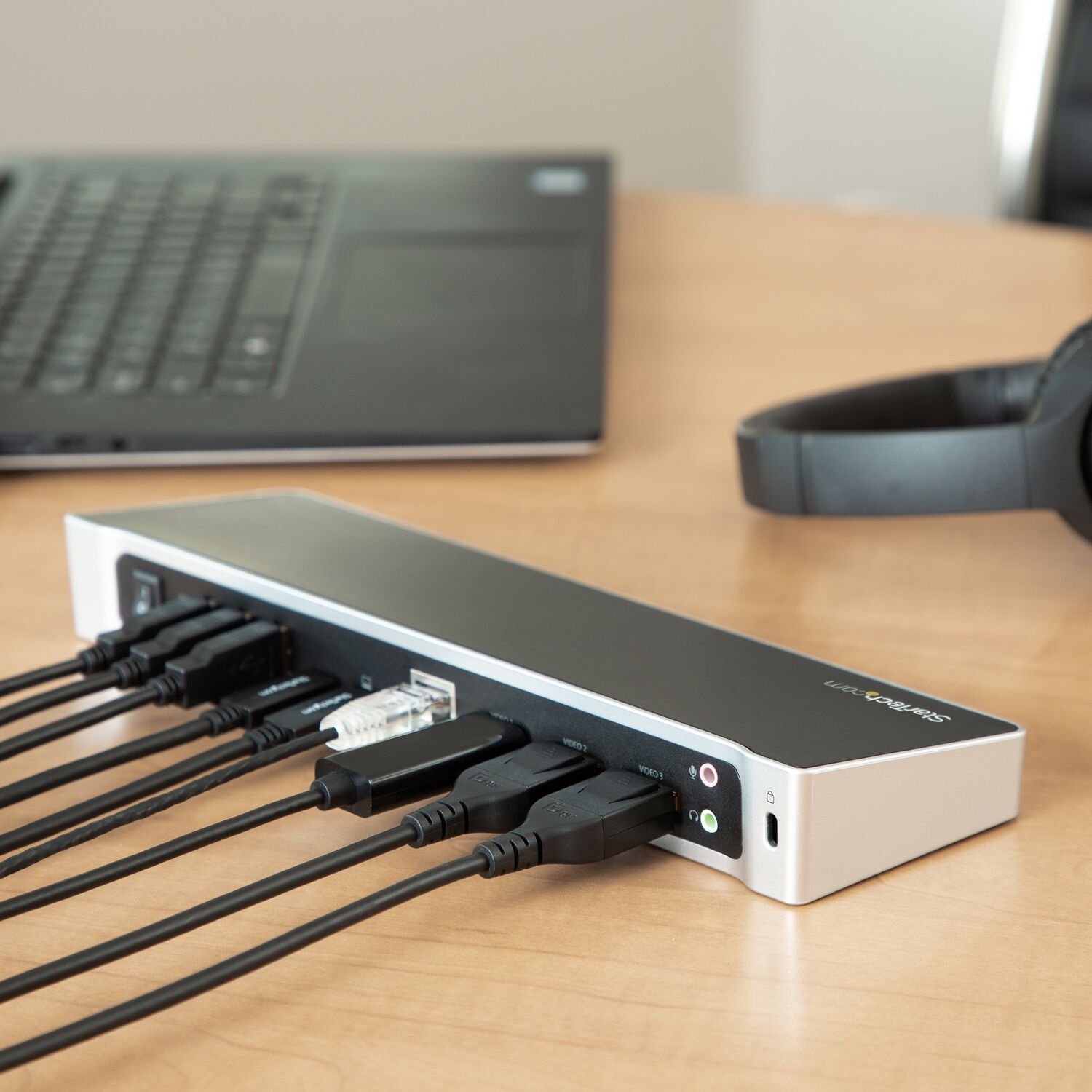

Powerful Connections

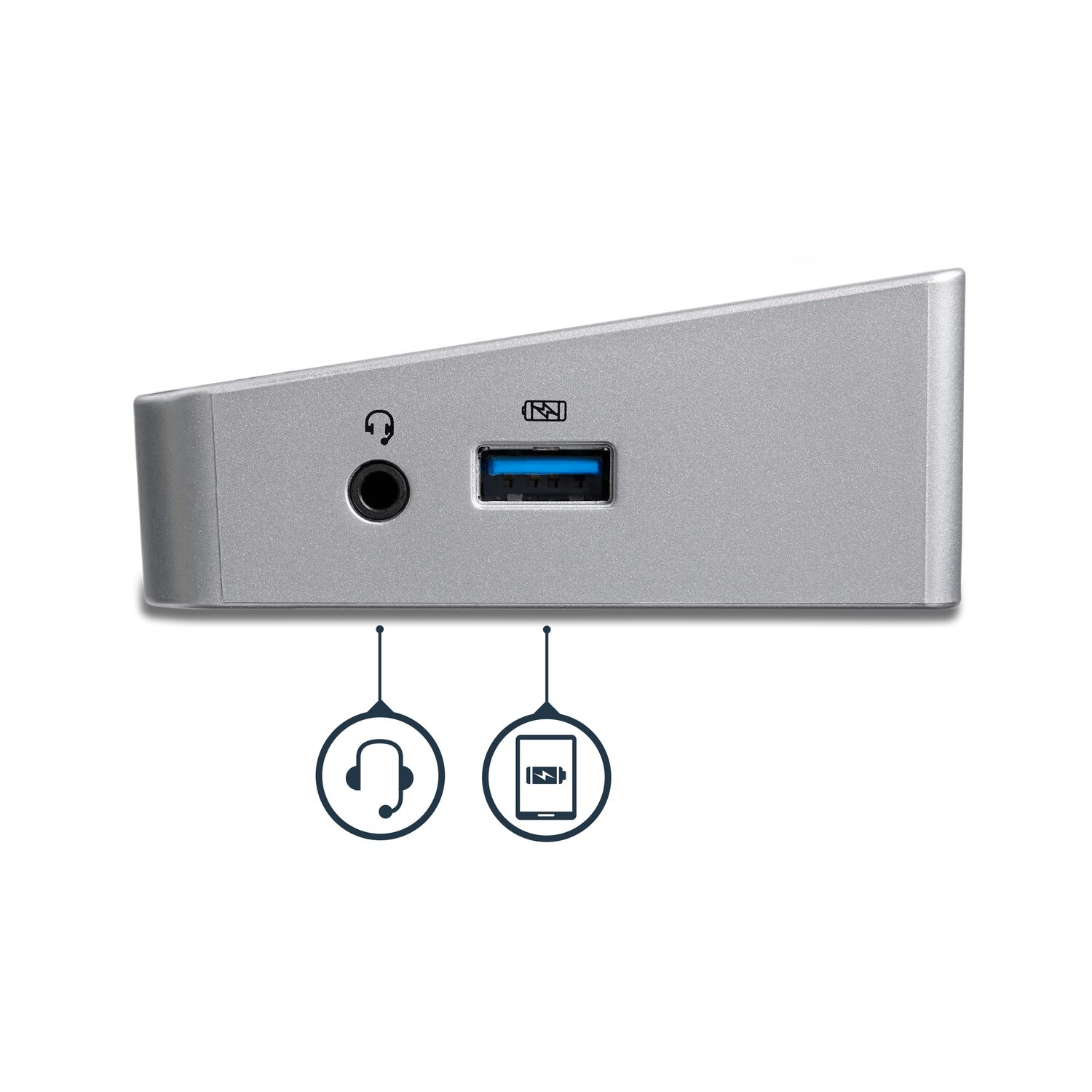

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.

60W Power Delivery

Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.

The StarTech Advantage

- Dock your USB-C equipped Mac or Windows laptop with triple 4K monitors: 2x DisplayPort (DisplayLink) and 1x HDMI (DP Alt Mode)
- Connect your USB devices with 5x USB 3.0 ports - 1x USB-C and 4x USB-A (incl 1x Fast-Charge)
- Power and charge your laptop with Power Delivery 2.0 (up to 60W)

Main

Brand

StarTech.com

Warranty

1 Year Warranty

Product code

DK30CH2DPPD

EAN/UPC code

0065030867672

Network

Auto MDI/MDI-X

Yes

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Networking standards

IEEE 802.3,IEEE 802.3ab,IEEE 802.3u

Operational conditions

Operating relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

0 - 60

Storage temperature (T-T)

-20 - 60

Other features

Chipset

DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176

Number of microphone inputs

1

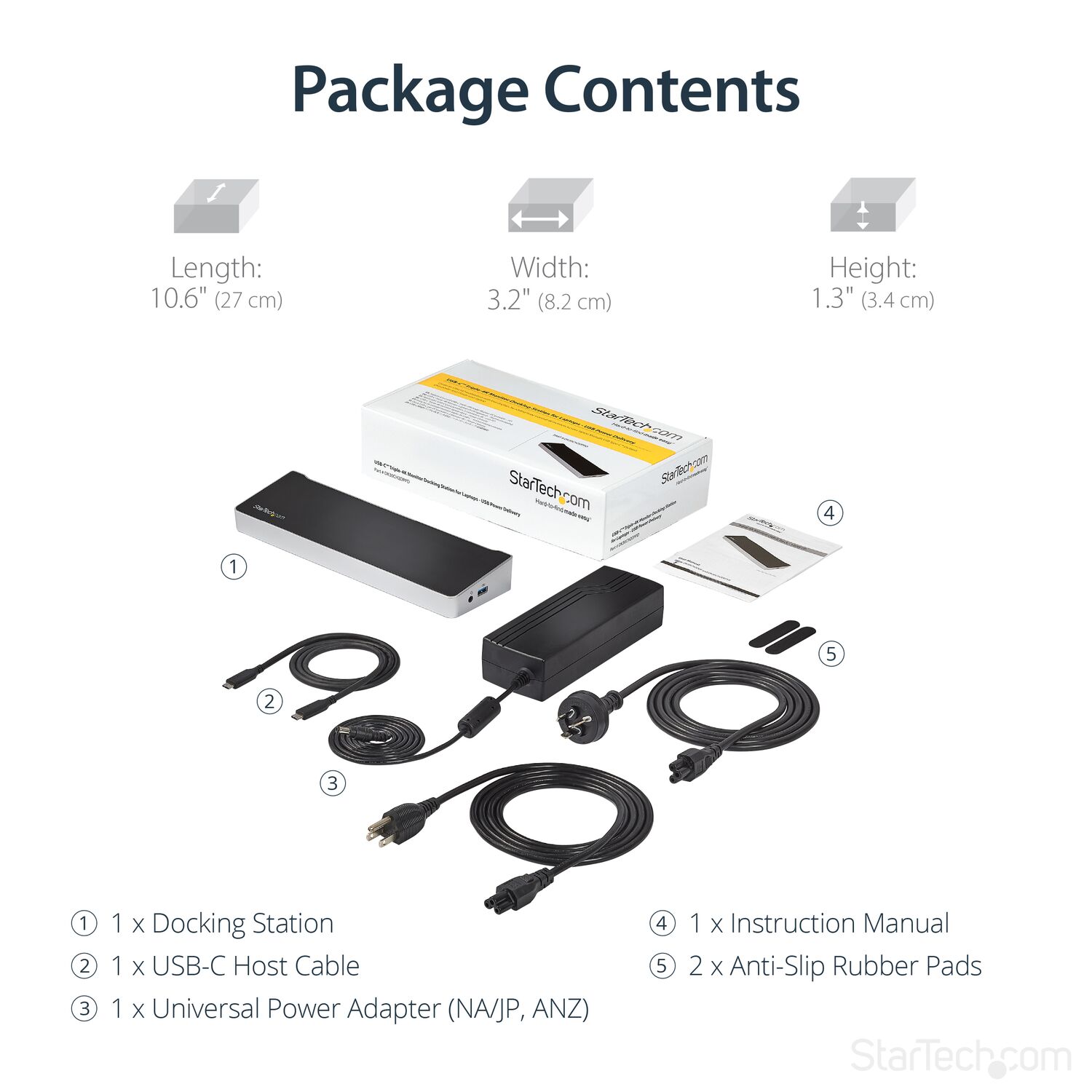

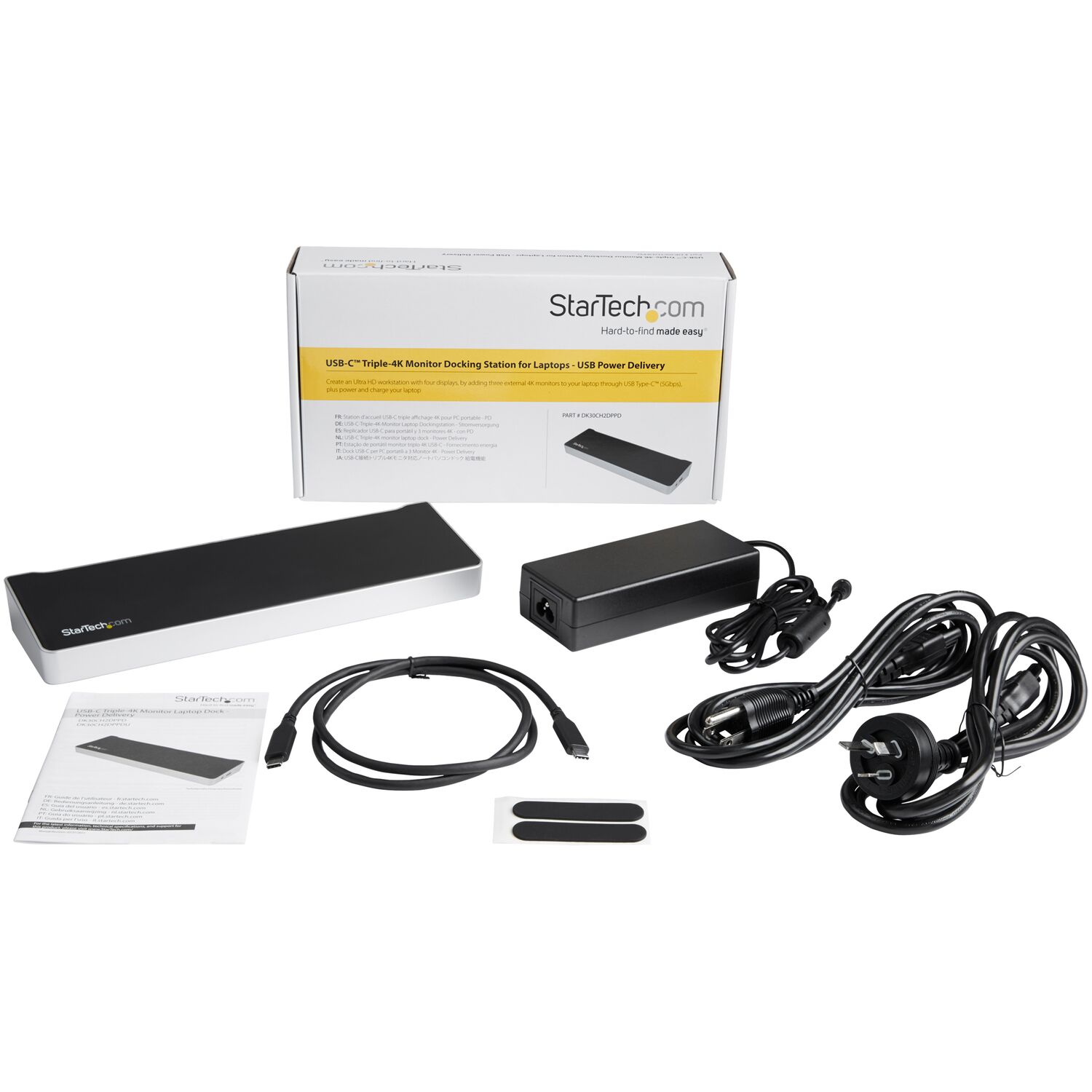

Packaging content

AC adapter included

Yes

Cables included

USB Type-C

Manual

Yes

Packaging data

Package depth

296 mm

Package height

71 mm

Package weight

1.4 kg

Package width

161 mm

Performance

Brand compatibility

Universal

Cable lock slot

Yes

Certification

CE, FCC, TAA, REACH

Data transfer rate

5 Gbit/s

Housing material

Plastic

Maximum digital resolution

4096 x 2160 pixels

On/off switch

Yes

Product colour

Black,Silver

UASP support

Yes

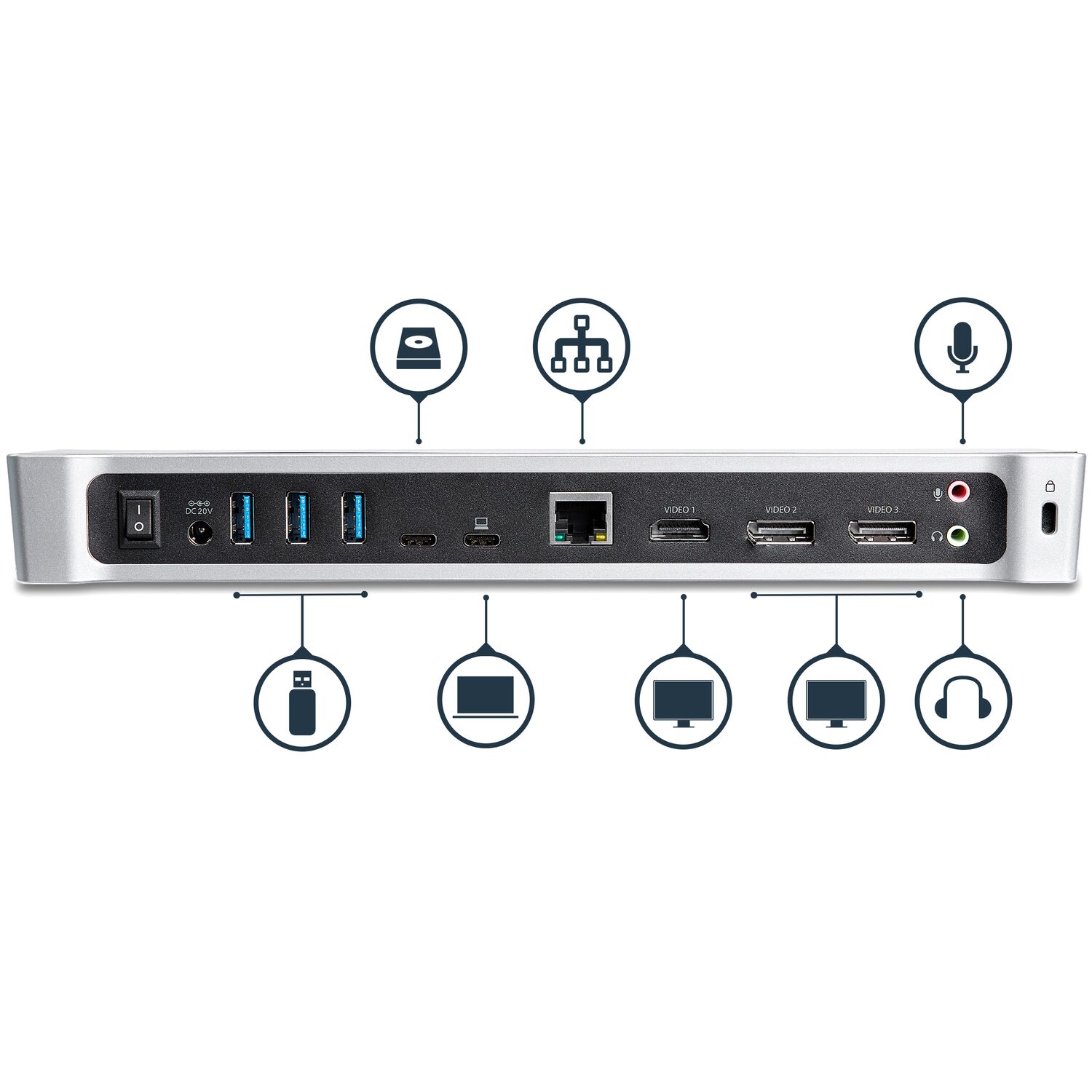

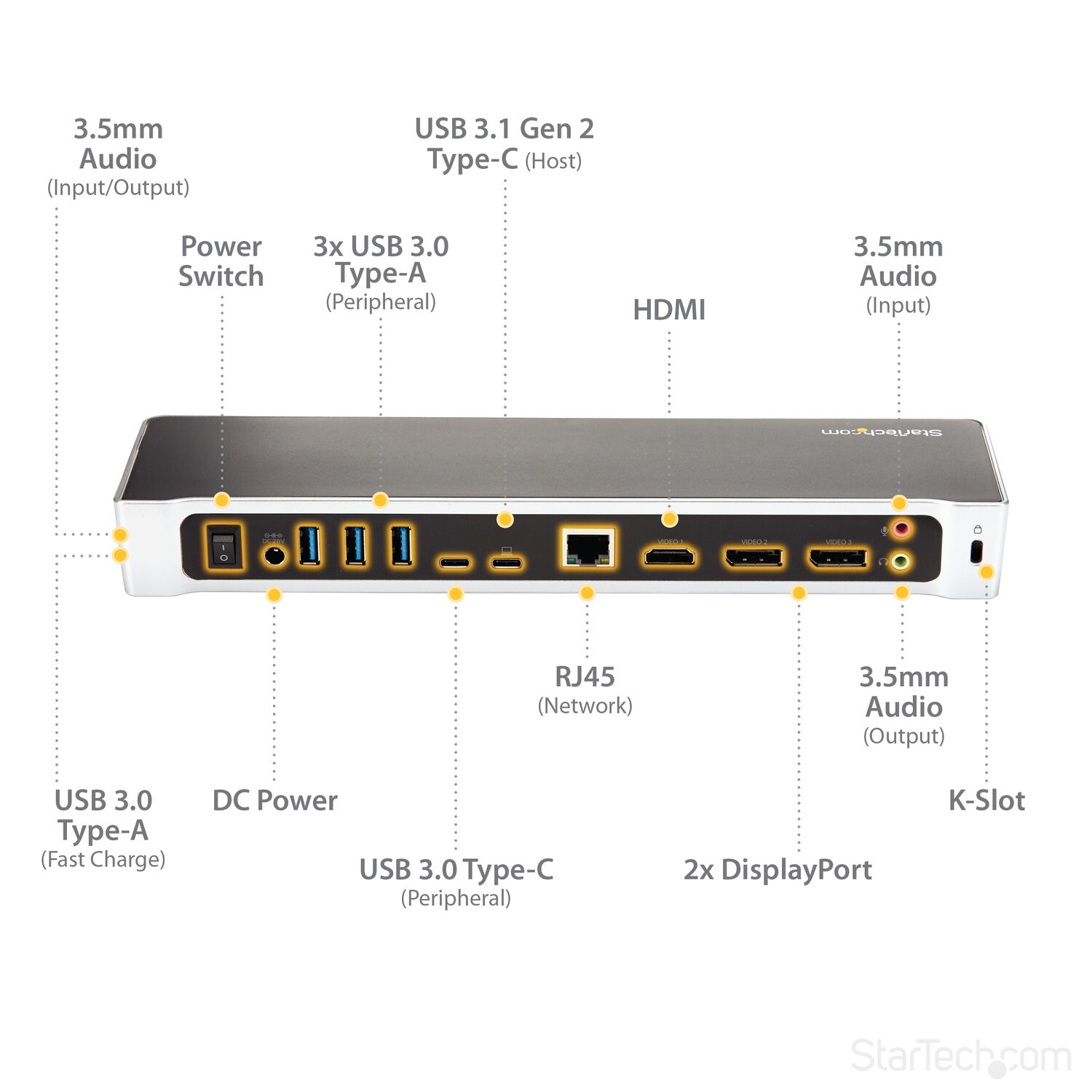

Ports & interfaces

Combo headphone/mic port

Yes

Connectivity technology

Wired

DC-in jack

Yes

DisplayPorts quantity

2

HDMI ports quantity

1

Headphone connectivity

3.5 mm

Headphone outputs

1

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Microphone in

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

Power

AC input voltage

100 - 240 V

Compatible power plug types

AU,JP

Input current

2 A

Output current

6 A

Output voltage

20 V

Power plug type

Type N

Software

Mac compatibility

Yes

Mac operating systems supported

Other operating systems supported

Chrome

Windows operating systems supported

Weight & dimensions

Depth

270 mm

Product Height

34 mm

Weight

385 g

Width

82 mm
