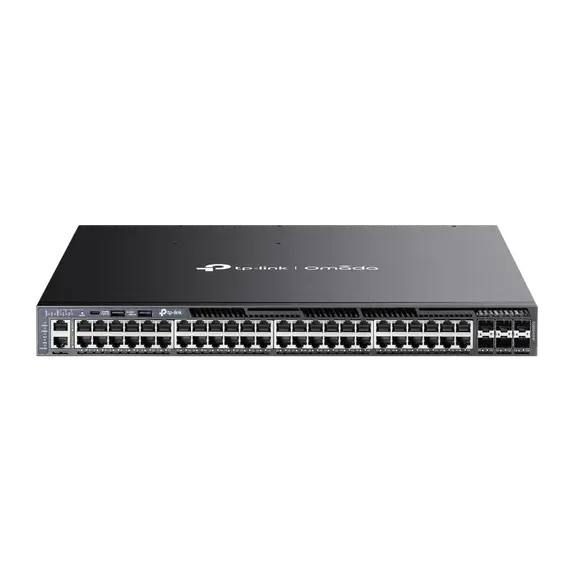

TP-Link SG6654XHP Network Switch - 48x 10/100/1000 Mbps PoE+ RJ45 Ports, Managed, 1U, AC, Black
99360-665-40
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
- BrandTP-Link
- Basic switching RJ-45 Ethernet ports quantity48
- Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
- Switch typeManaged
- Switch layerL3
- Power over Ethernet (PoE)Yes
- Switching capacity216 Gbit/s
- Rack mountingYes
- Form factor1U
- All features

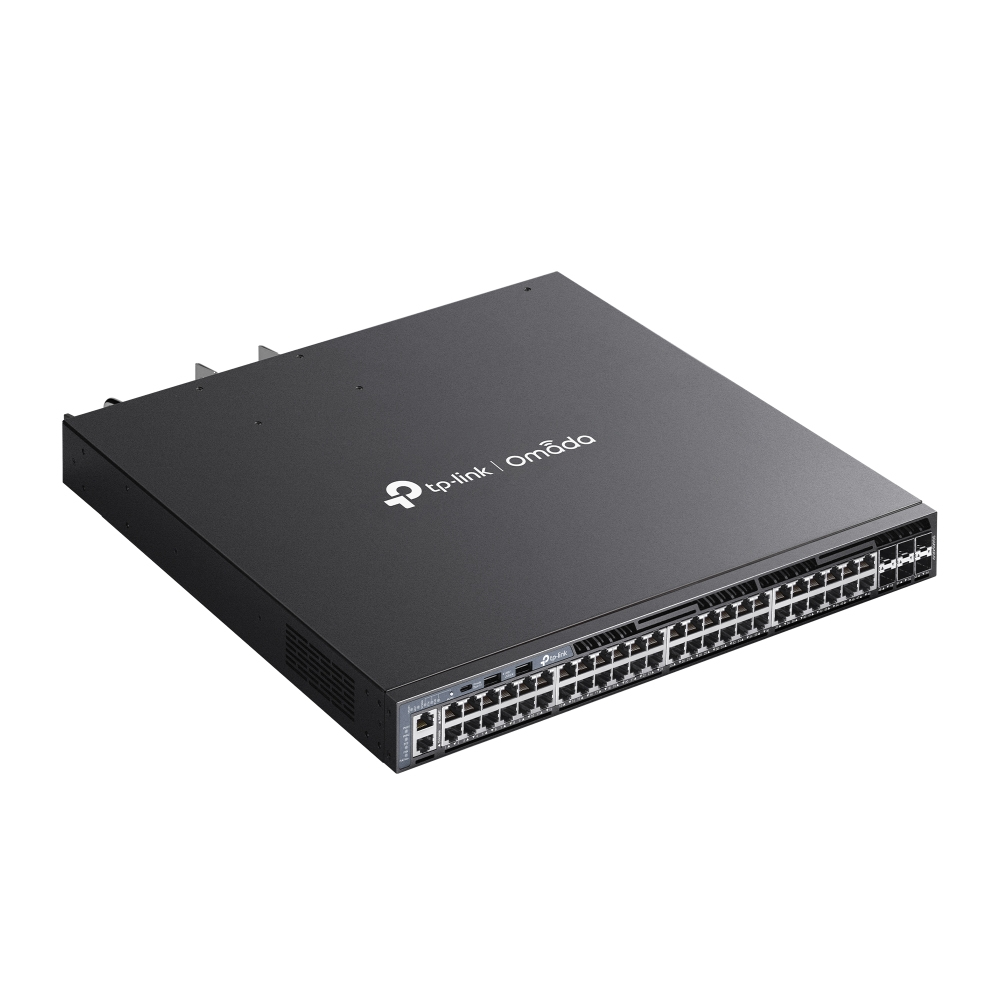

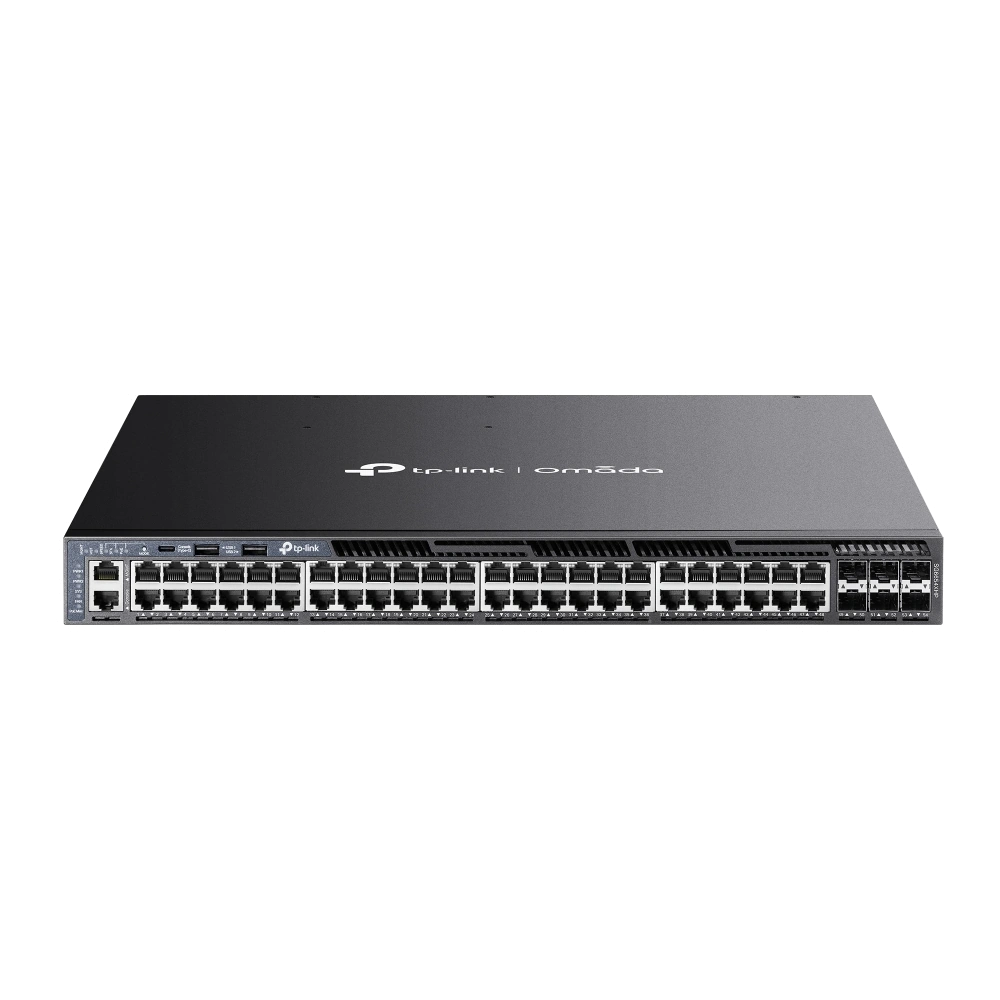

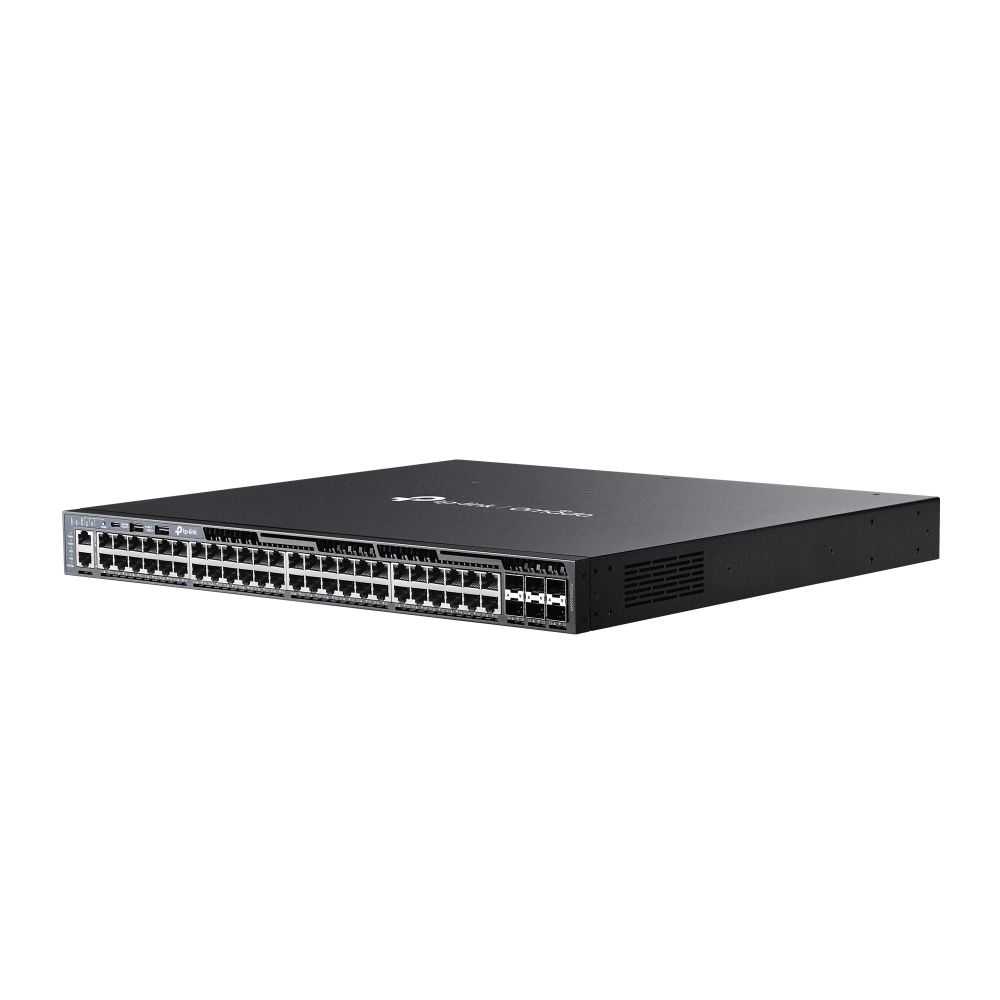

TP-Link SG6654XHP Managed Network Switch
Designed for demanding business, campus and data centre networks, the TP-Link SG6654XHP provides 48 Gigabit PoE+ ports and six 10G SFP+ slots for high-speed uplinks and stacking. This managed Layer 3 switch combines advanced routing, centralized Omada management and a PoE budget of up to 1,440 W, offering a flexible foundation for enterprise network deployments.
Key Features
- 48 Gigabit PoE+ ports: Connect compatible devices and deliver power over Ethernet.
- Six 10G SFP+ slots: Support high-speed uplinks and stacking connections.
- Layer 3 routing: Supports RIP, OSPF, ECMP, VRRP, DHCP Server/Relay and PIM-SM/DM.
- Centralized management: Manage the switch using the Omada SDN Controller, available as a cloud, hardware or software option. Omada Essentials adds cloud management, secure AWS storage and Zero-Touch Provisioning (ZTP).

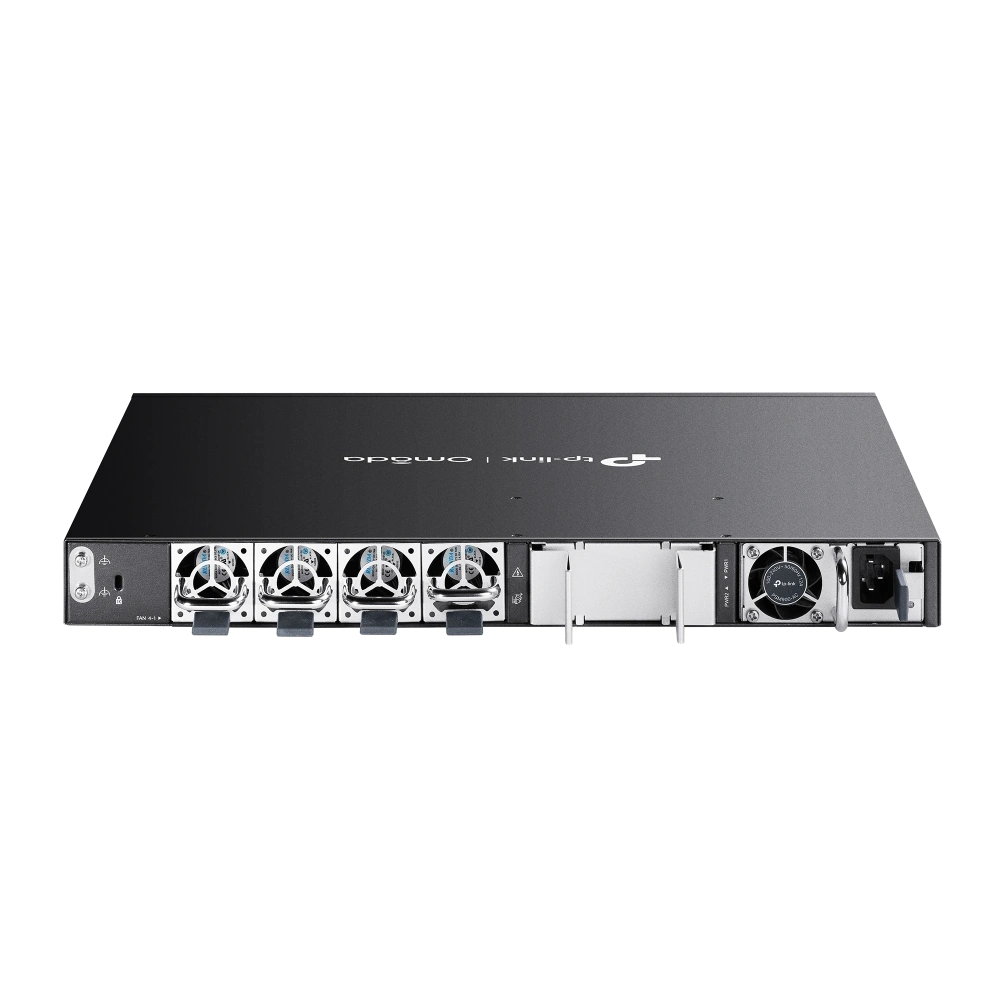

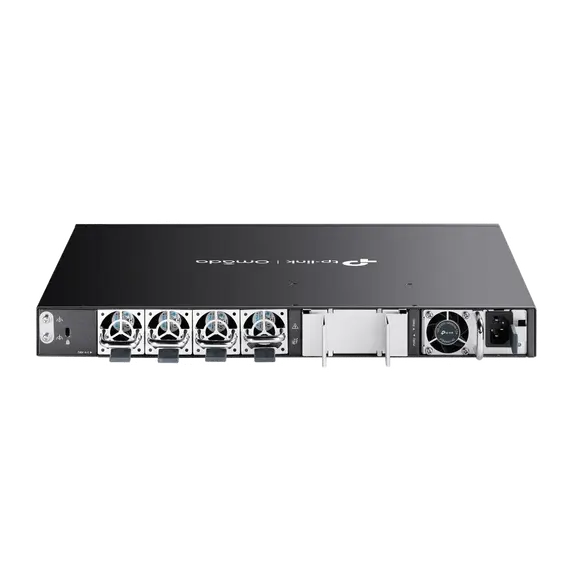

- High availability: Includes two hot-swappable power supplies and four replaceable fans.
- Flexible stacking: Stack up to eight units with bandwidth of up to 120 Gbps.
- Enterprise security: Features ACL, Port Security, 802.1X, DoS Defend and AAA.
- Advanced QoS: Includes eight queues, Voice VLAN, DSCP and 802.1p priority.

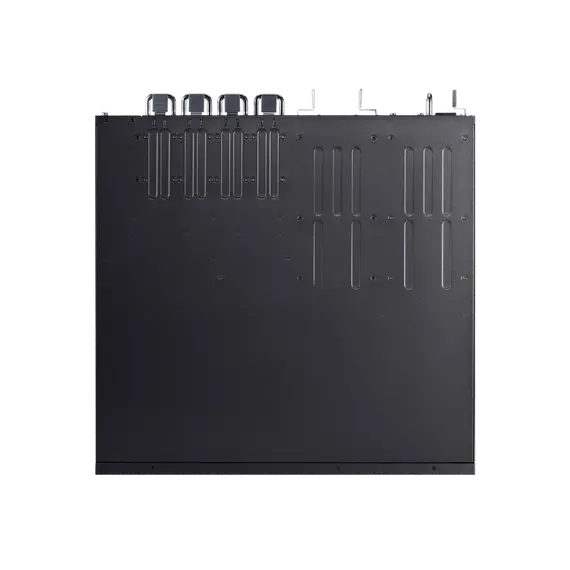

- Rack-ready construction: A rugged metal chassis in a compact 1U form factor.
Specifications
| Brand | TP-Link |
|---|---|
| Model | SG6654XHP |
| Product code | 99360-665-40 |
| Product type | Managed network switch |
| Switch layer | Layer 3 |
| RJ45 ports | 48 × 10/100/1000 Mbps Gigabit PoE+ |
| SFP+ slots | 6 × 10G |
| Maximum PoE budget | 1,440 W |
| Stacking capacity | Up to 8 units |
| Stack bandwidth | Up to 120 Gbps |
| Routing protocols and features | RIP, OSPF, ECMP, VRRP, DHCP Server/Relay, PIM-SM/DM |
| Management | Omada SDN Controller (cloud, hardware or software); Omada Essentials cloud management |
| Security features | ACL, Port Security, 802.1X, DoS Defend, AAA |
| QoS features | Eight queues, Voice VLAN, DSCP, 802.1p priority |
| Power supplies | Two hot-swappable power supplies |
| Fans | Four replaceable fans |
| Form factor | 1U rack-mountable |
| Chassis | Rugged metal |
| Power supply included | Yes |
| Included cables | AC cable, LAN (RJ-45) cable |

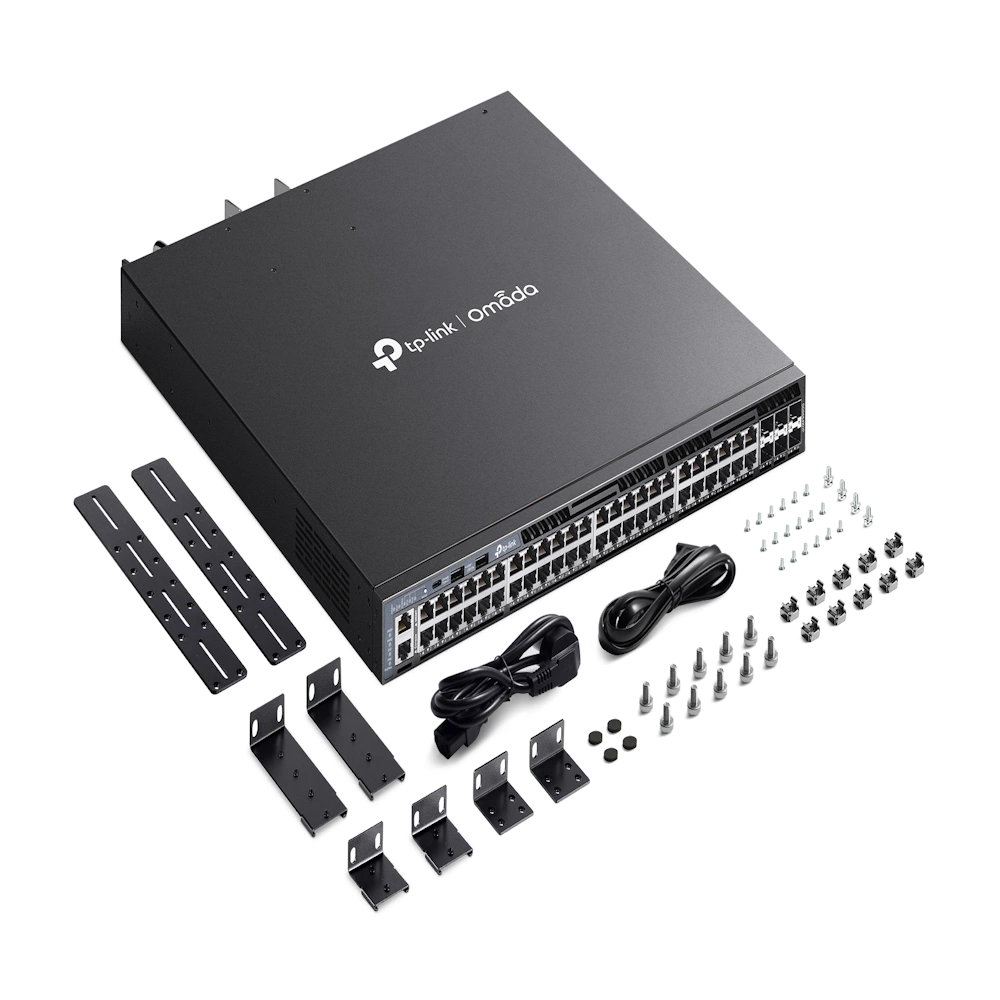

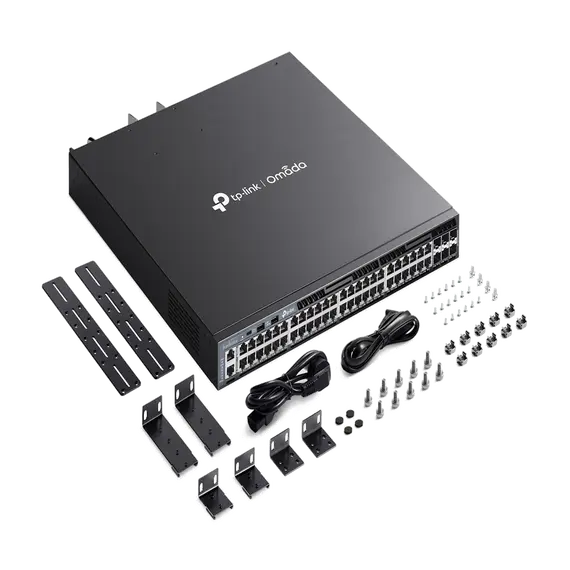

What's in the Box
- TP-Link SG6654XHP Network Switch
- AC cable
- LAN (RJ-45) cable
Networking
Broadcast storm control
Yes
Flow control support
Yes
Number of VLANs
4000
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
48
Total Power over Ethernet (PoE) budget
1440 W
Virtual LAN features
VLAN support
Yes
Data transmission
Forwarding rate
160.7 Mpps
Jumbo frames
9000
Jumbo frames support
Yes
MAC address table
32000 entries
Packet buffer memory
3 MB
Switching capacity
216 Gbit/s
Design
Form factor
1U
LED indicators
Yes
Number of fans
4 fan(s)
Rack mounting
Yes
Stackable
Yes
Management features
ARP inspection
Yes
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
Quality of Service (QoS) support
Yes
Switch layer
L3
Switch type
System event log
Yes
Web-based management
Yes
Multicast features
Multicast support
Yes
Network
IP routing
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Static route
Yes
Operational conditions
Heat dissipation
6027.86 BTU/h
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
-5 - 40 °C
Storage relative humidity (H-H)
5 - 90%
Storage temperature (T-T)
-40 - 70 °C
Packaging content
Cables included
AC, LAN (RJ-45)
Manual
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports type
Console port
RJ-45/USB Type-C
SFP+ module slots quantity
6
USB 2.0 ports quantity
2
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
1767.7 W
Power source
AC
Power supply included
Yes
Security
Access Control List (ACL)
Yes
Authentication type
RADIUS
IGMP entries
2048
IGMP snooping
Yes
Loop protection
Yes
SSH/SSL support
Yes
Weight & dimensions
Depth
420 mm
Height
44
mm
Width
440 mm
