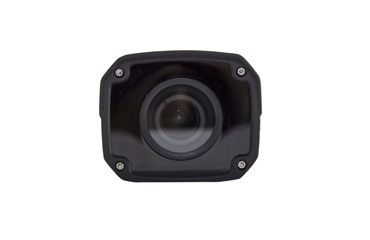

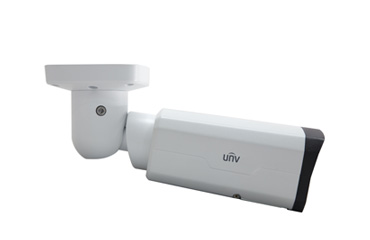

UNIVIEW Bullet IPC2322EBR-P 2MP VF Network IR Bullet Camera
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
|
Camera |
|
|
Sensor |
1/2.7", 2 Megapixel, progressive scan CMOS |
|
Lens |
2.8~12mm@F1.4 |
|
Angle of View(H) |
90° ~ 28° |
|
Zoom/Focus |
Manual |
|
Shutter |
Auto/Manual, 1/6~1/8000s |
|
Min. Illumination |
Colour: 0.06 Lux (F1.4, 50IRE) Black & White: 0.03Lux (F1.4, 50IRE) |
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|
S/N |
>52dB |
|
Video |
|
|
Max. Resolution |
1920 × 1080 |
|
Video Compression |
H.264,MJPEG |
|
Frame Rate |
1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps |
|
Video Streaming |
Triple |
|
9:16 Corridor Mode |
Supported |
|
ROI |
Supported |
|
OSD |
Up to 8 OSDs |
|
Privacy Mask |
Up to 4 areas |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Two-way audio |
Supported |
|
Storage |
|
|
Edge Storage |
Micro SD, up to 128 GB |
|
Network |
|
|
Protocols |
L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP |
|
Compatible Integration |
ONVIF, API |
|
Interface |
|
|
Audio I/O |
Audio cable |
|
Input: impedance 35 kΩ; amplitude 2 V [p-p] |
|
|
Output: impedance 600 Ω; amplitude 2 V [p-p] |
|
|
Alarm I/O |
1 / 1 |
|
Network |
10M/100M Base-TX Ethernet |
|
General |
|
|
Power |
12 V DC, or PoE (IEEE802.3 af) |
|
Power consumption: Max 8W |
|
|
Dimensions (L × W × H) |
253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”) |
|
Material |
Cast aluminum |
|
Weight |
0.58kg (1.28lb) |
|
Working Environment |
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) |
|
Ingress Protection |
IP66 |
