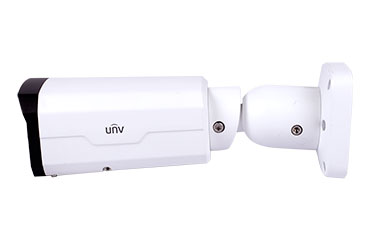

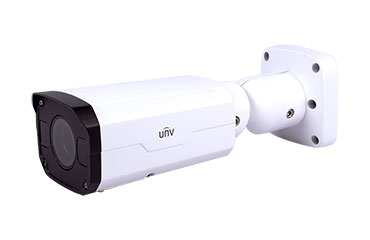

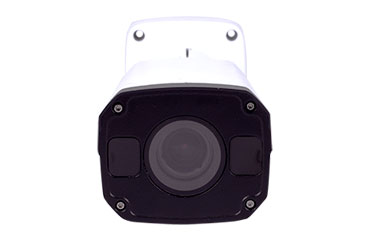

UNIVIEW Bullet IPC2324EBR-DP 4MP VF Network IR Bullet Camera

Camera

Sensor

1/3", progressive scan, 4megapixel, CMOS

Lens

2.8~12mm，AF automatic focusing and motorized zoom lens

Angle of View(H)

91°~27°

Shutter

Auto/Manual, 1/6~1/100000 s

MinimumIllumination

Colour: 0.02 Lux (F1.4, AGC ON)

0 Lux with IR on

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 30m (98 ft) IR range

Defog

Digital Defog

WDR

Optical WDR (up to 120 dB)

Video

Video Compression

Ultra 265,H.265, H.264,MJPEG

Frame Rate

Main Stream:4MP (2592×1520): Max. 20 fps，4MP (2560×1440): Max. 25 fps，3MP (2048×1520): Max. 30 fps;

Sub Stream:2MP (1920×1080): Max. 30 fps;

Third Stream:D1(720×576) : Max. 30fps

9:16 Corridor Mode

Supported

HLC

Supported

BLC

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Smart

Behavior Detection

Intrusion, cross line, motion detection

Exception Detection

Audio detection

Intelligent Identification

Face detection, Defocus, Scene Change

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8 KHZ

Storage

Edge Storage

Micro SD, up to 128 GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP

Compatible Integration

ONVIF(Profile S, Profile G),API

Interface

Audio I/O

Audio cable

Input: impedance 35 kΩ; amplitude 2 V [p-p]

Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O

1/ 1

Network

10M/100M Base-TX Ethernet

Video Output

1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

General

Power

12 V DC±25%, PoE (IEEE802.3 af)

Power consumption: Max 8W

Dimensions (L × W × H)

253.4 ×86 ×71.7 mm (9.98” × 3.4” × 2.8”)

Weight

0.58kg (1.28lb)

Working Environment

-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)

Ingress Protection

IP67
