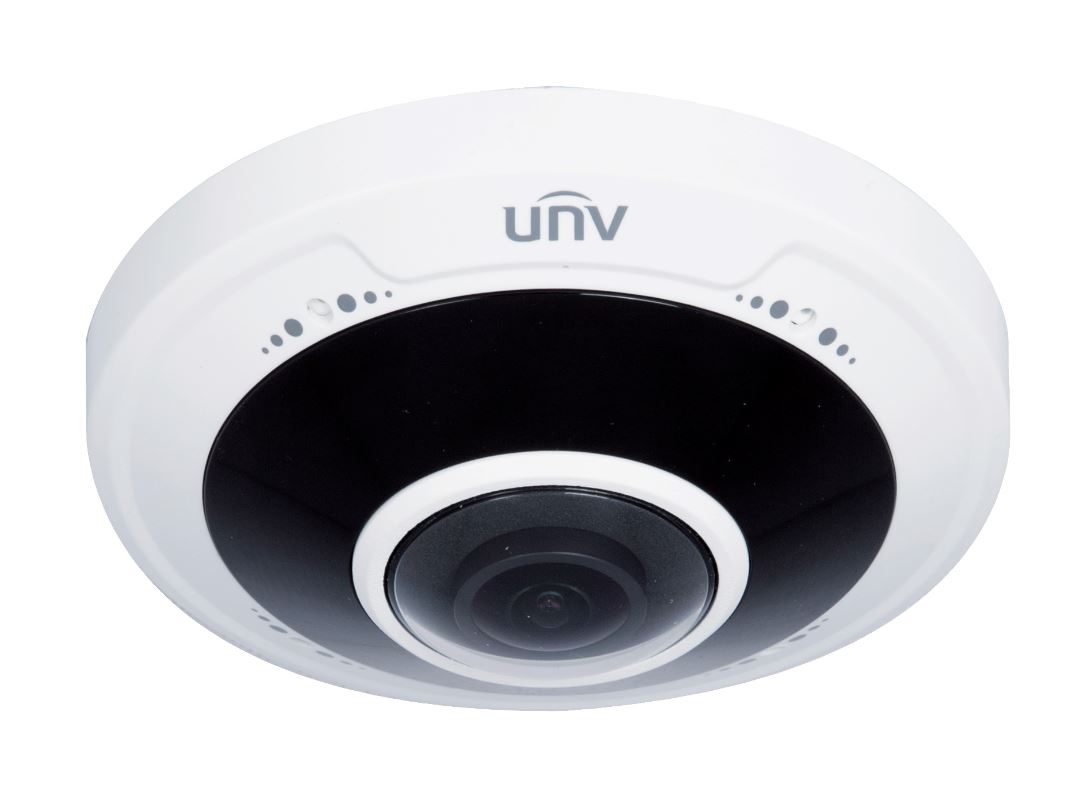

UNIVIEW IPC814SR-DVSPF16 4MP Fisheye Fixed Dome Network Camera
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
|
Image sensor |
1/3", 4 megapixel, progressive scan, CMOS |
|
Aperture |
F1.6 |
|
Shutter |
Auto/Manual，shutter time：1/6 s ~1/100000 s |
|
Minimum Illumination |
Colour: 0.02 Lux (F1.6, AGC ON) 0 Lux with IR |
|
S/N Ratio |
>55dB |
|
Day / Night |
IR-cut filter for day & night function |
|
WDR |
120 dB |
|
Video |
|
|
Max. Resolution |
2592×1520 |
|
Video Compression |
H.265, H.264, MJPEG |
|
Frame Rate |
4MP (2560×1440): Max.25 fps |
|
ROI(Region of Interest) |
Supported |
|
Maximum Streams |
|
|
Evaluative Metering |
Supported |
|
OSD |
Up to 8 OSD |
|
Privacy Mask |
Supported |
|
Storage |
|
|
Edge Storage |
Micro SD, up to 128GB |
|
Network |
|
|
Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x |
|
Compatible Integration |
ONVIF, API |
|
Interface |
|
|
Network |
10M/100M Base-TX Auto-adaptive Ethernet |
|
Reset |
1 Reset Button |
|
General |
|
|
Power |
DC12V±25%,PoE(IEEE 802.3af) |
|
Power consumption: Max. 11 W |
|
|
Dimensions (Ø x H) |
Φ125x 43.7 mm (Φ4.9” x 1.7”) |
|
Weight |
0.39kg(0.86lb) |
|
Working Environment |
-40°C ~60°C (-40°F ~ 140°F), Humidity≤95% RH |
|
Vandal Resistant |
IK10 |
|
Ingress Protection |
IP66 |
Singlestream (1 panoramic view)
