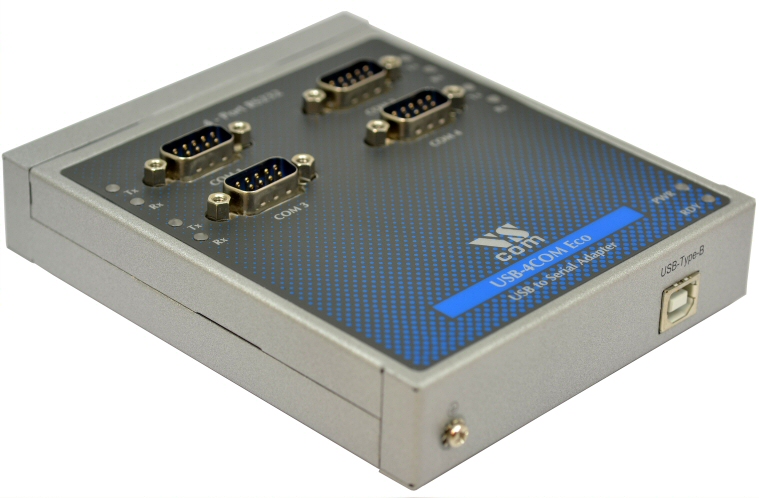

VSCOM USB-4COM ECO - USB to 4x RS232 Ports DSub-9 male

The USB-4COM ECO provides easy serial port expansion over USB 2.0 connecting to high-speed RS232 devices. All USB-xCOM Eco converters are fully ESD and surge-protected, bus powered, and accommodated in a small metal case. Furthermore, it can operate across a large range of temperatures to cope with harsh operating conditions. Lastly, DIN-Rail and wall-mounting options are available.

Easy Serial Ports Configuration
The serial ports support all 9 signals of the RS232 protocol. LEDs for PWR, RDY, and TxD/RxD for each port clearly show the activity status for the user. Com Port drivers are available for Windows, Linux, and Mac OS X. "USB COM Configuration Utility" allows easy access to special Windows driver options to optimize settings and performance.

High-Speed Rates and ESD Protection
USB 2.0 High-Speed connection allows serial data rates of up to 460.8kbps. Every non-standard bitrate (e.g. 31250bps for MIDI) can easily be set up. USB-xCOM ECO systems are fully ESD protected at the USB and serial port interfaces.

Specifications

• USB-Input: USB 2.0 High Speed, USB 1.1 compliant
• Connector: USB type B
• Circuits: FTDI FT4232H / Genesys GL850G
• No. of Ports/Type: 4 x RS232
• Connector: DB-9 male
• Protection: 16kV ESD surge protection
• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Data Bits: 7, 8
• Stop Bits: 1, 2
• Parity: None, Even, Odd, Mark, Space
• Flow Control: RTS/CTS, XON/XOFF
• Baudrate: 180bps - 460.8/500kbps
• LEDs: TxD/RxD for each port
• Drivers: Windows 2000 to Windows 10 (x86 and x64) / Windows Server 2000 to 2016 (x86 and x64) / Linux (Kernel 3.4 and later built-in)/ Mac OS X
• Input Voltage: 5V (USB)
• Power Consumption: max 250mA, 1.25W
• Connector: USB Type B, bus-powered, no external supply
• Case: 0.8mm sheet metal
• Weight: 150g, w/h box 0.6kg
• Dimensions:108×129×25 mm³ (W×L×H)
• Packaged: 155×168×58 mm³
• Mounting: Desktop use / DIN-Rail (optional) / Wall mount (optional)
• Operating Temp: −25°C - 75°C
• Storage Temp: −30°C – 85°C
• Ambient Humidity: 5-95% non-condensing
• Declarations: CE, FCC
• EMI: EN 55022 Class B/ 47 CFR FCC Part 15 Subpart B
• EMS (EN 55024): EN 61000-4-3: Radiated RFI / EN 61000-4-4: Electrical Fast Transient / EN 61000-4-5: Surge /
• EN 61000-4-6: Induced RFI / EN 61000-4-8: Power Frequency Magnetic Field
• EN 61000-4-11: Power supply dips
• ESD: EN 61000-4-2 4kV contact 8kV air for Serial Ports / USB
• MTBF: 39.4 Years @ 25°C / 22.7 Years @ 45°C
• Standard: Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7
• Packing list: USB-4COM ECO device / USB 2.0 High-Speed cable / 4 rubber feet for table mode
