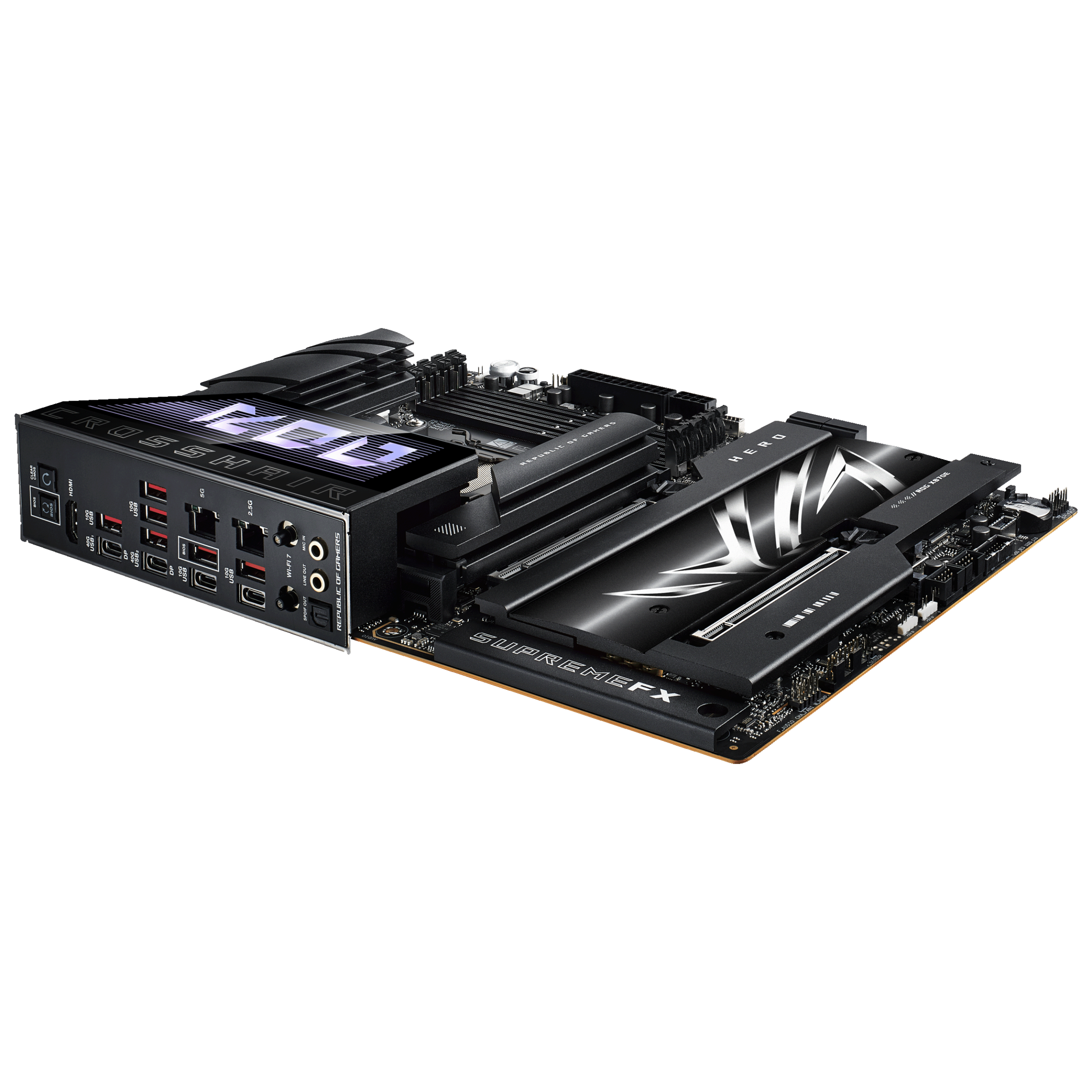

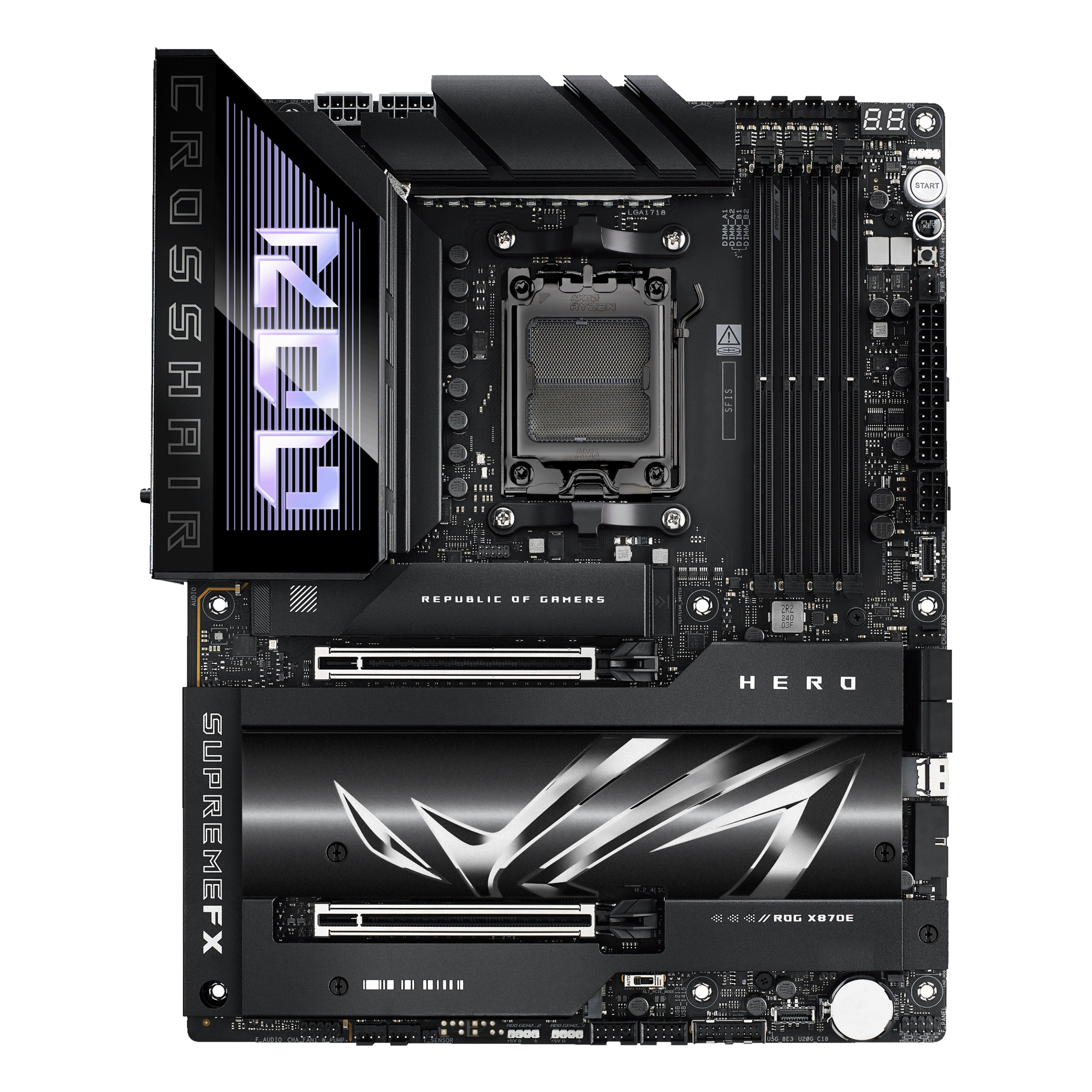

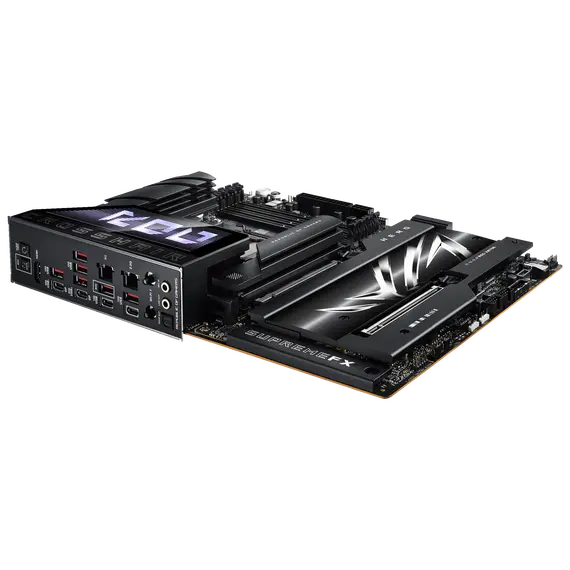

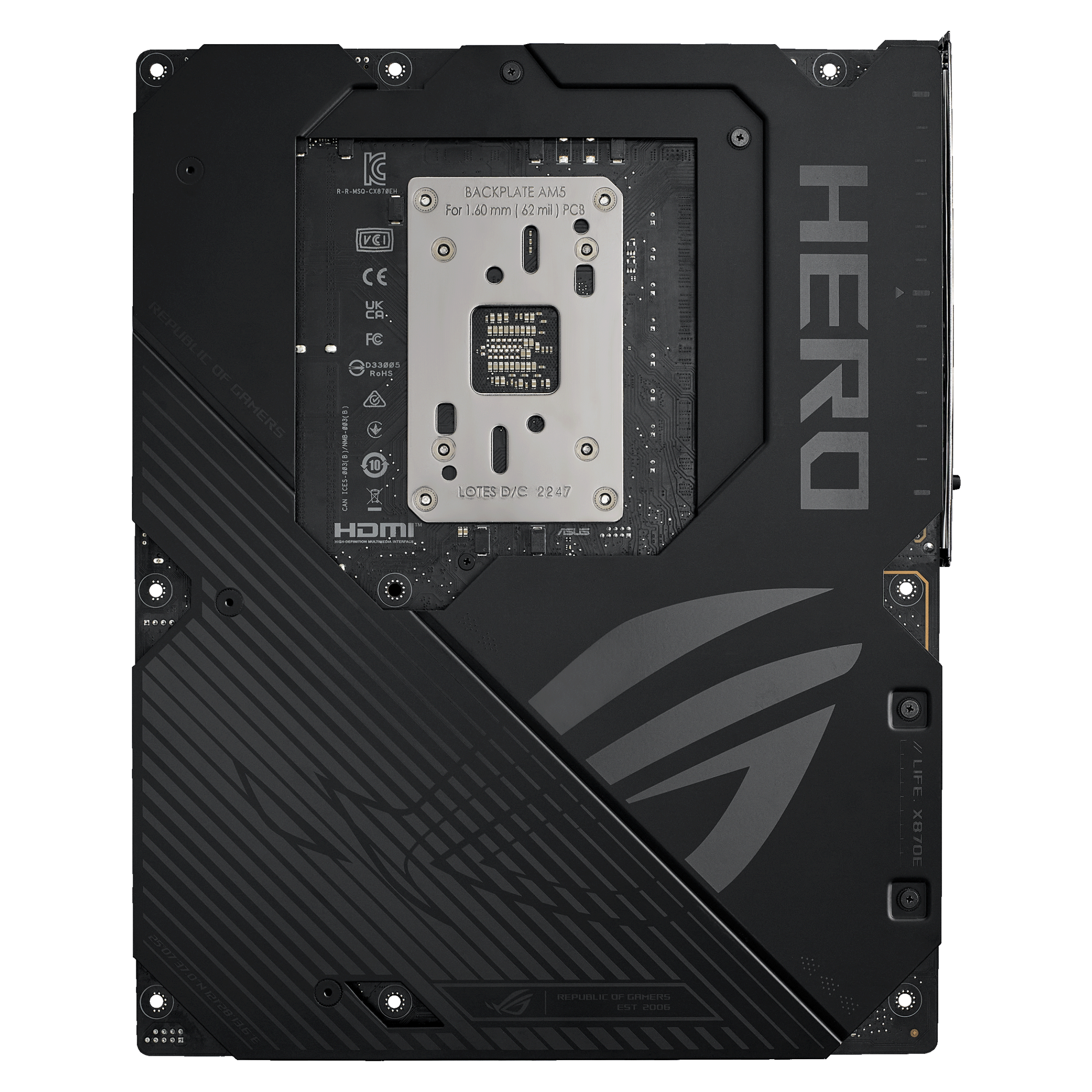

ASUS ROG CROSSHAIR X870E HERO - Motherboard, AMD X870E, Socket AM5, ATX
90MB1IE0-M0EAY0
Delivery
Payment options
Our advantages
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
Find similar
ASUS ROG CROSSHAIR X870E HERO -…Processor socketAM5Motherboard chipsetAMD X870ESupported memory typesDDR5-SDRAM
7 more parts to a full buildEquip →
- BrandASUS
- Processor socketAM5
- Motherboard chipsetAMD X870E
- Motherboard form factorATX
- Supported memory typesDDR5-SDRAM
- Number of memory slots4
- Number of M.2 (M) slots5
- Maximum internal memory192 GB
- Compatible processor seriesAMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
- Video outputsHDMI
- Top Wi-Fi standardWi-Fi 7 (802.11be)
- BluetoothYes
- USB-C ports (rear)USB4, USB 3.2 Gen 2
- Weight2.6 kg
- Warranty1 Year Warranty
- All features

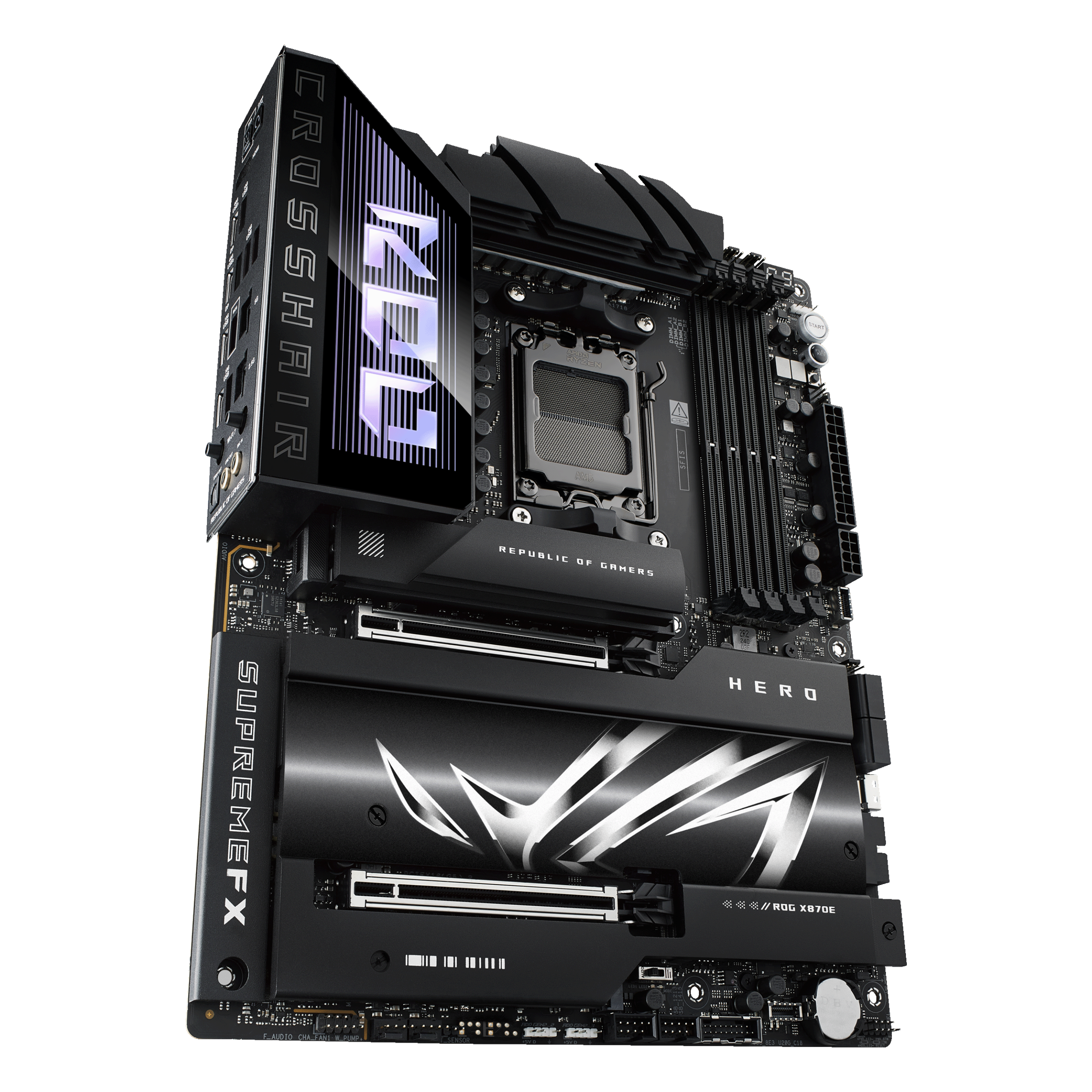

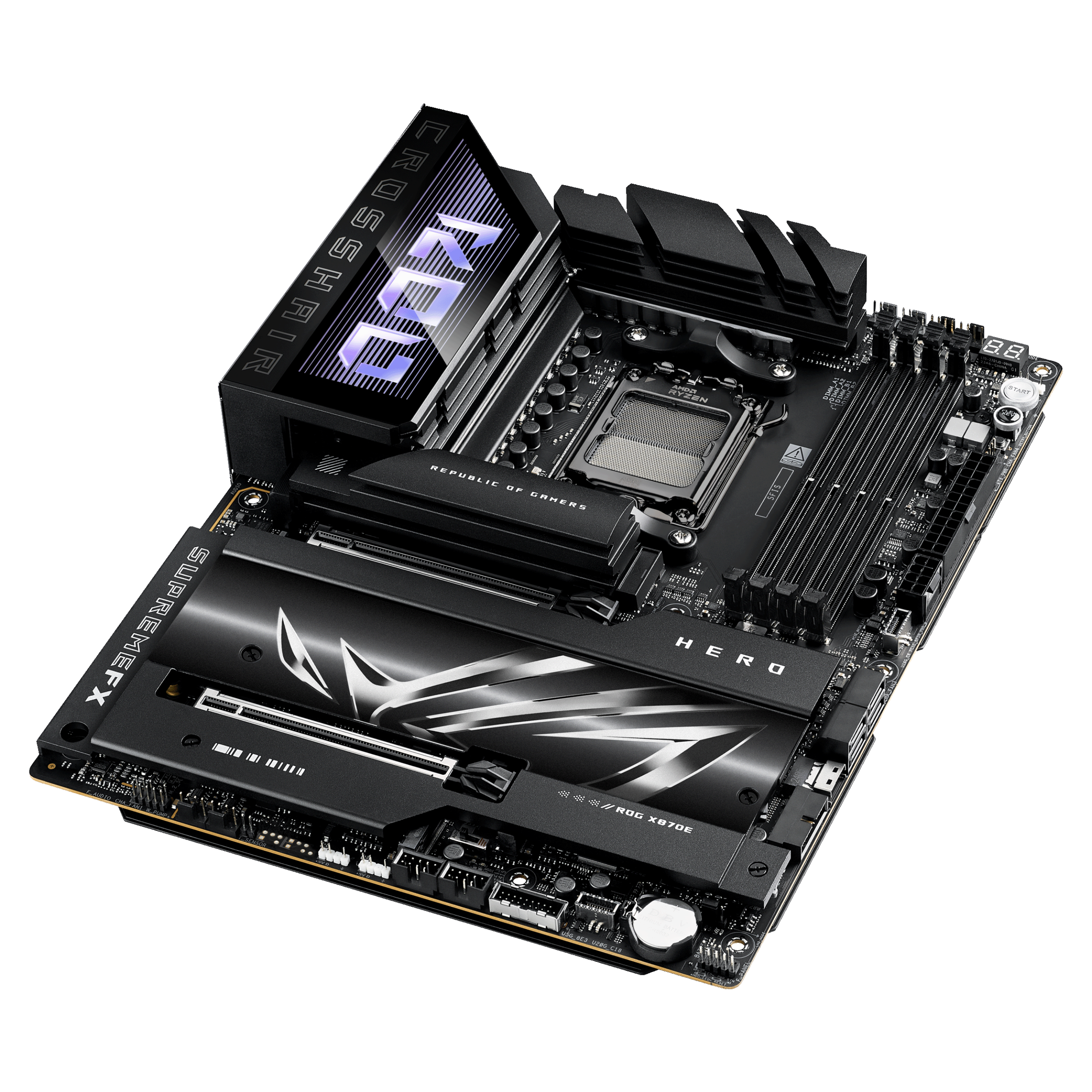

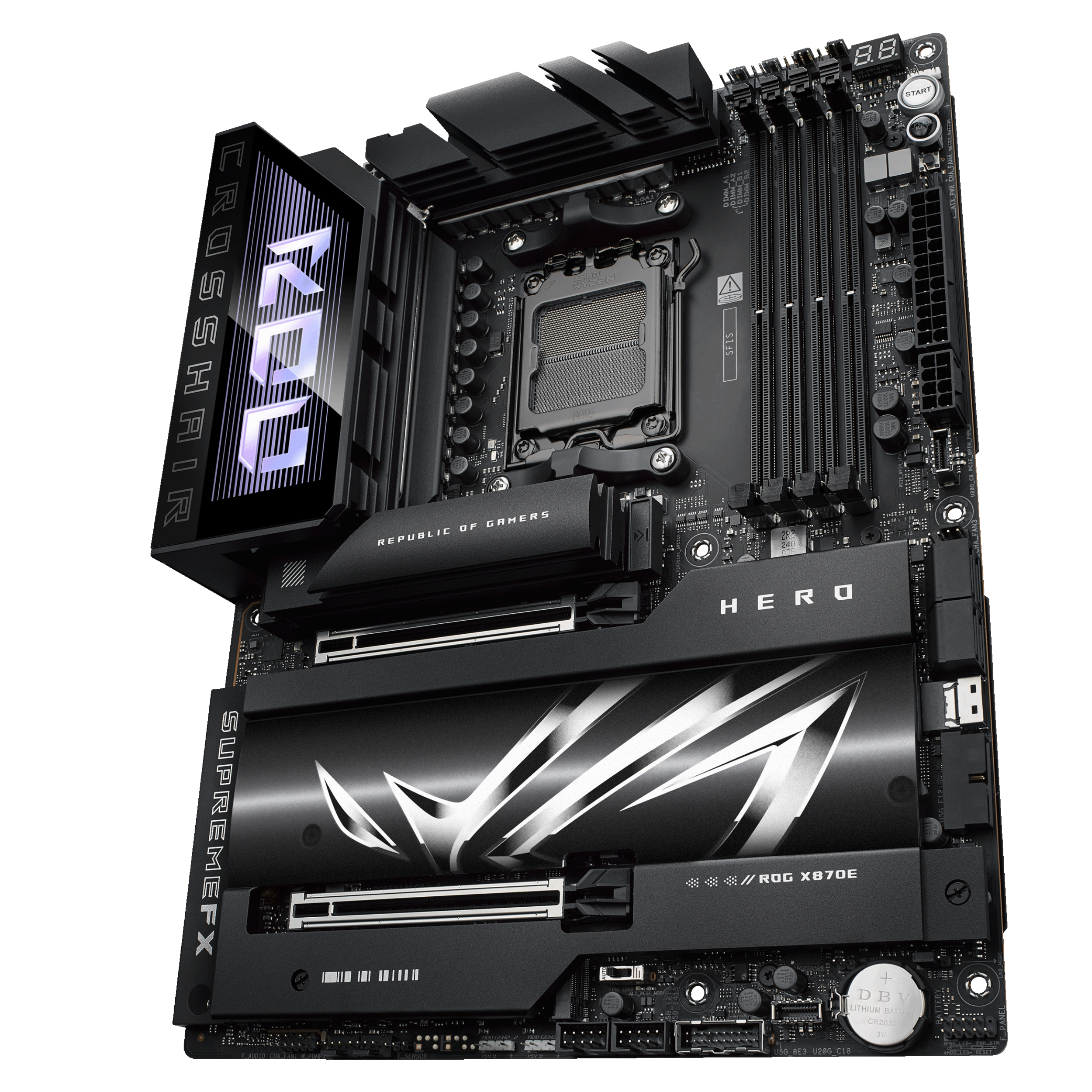

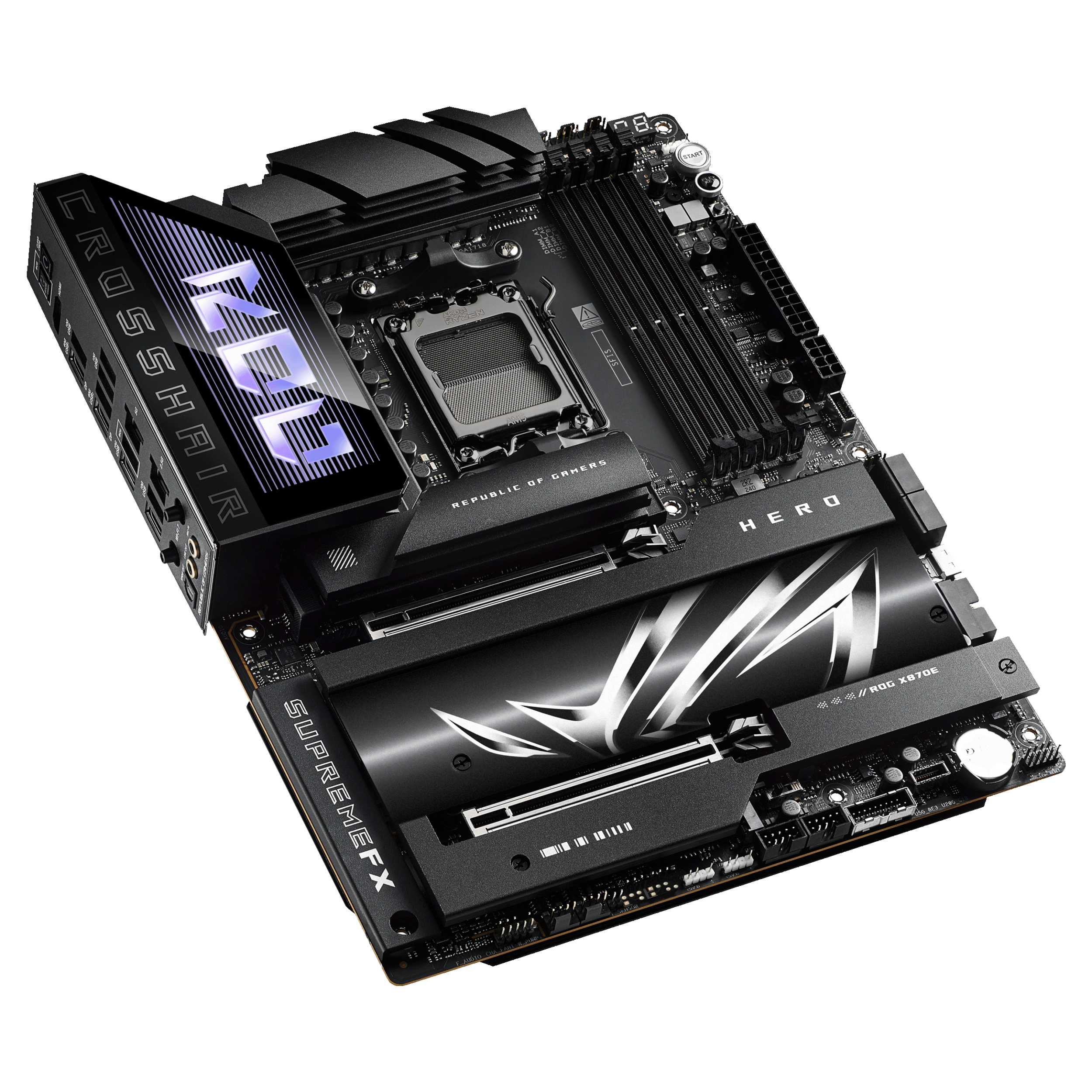

ASUS ROG CROSSHAIR X870E HERO Motherboard
Elevate your gaming rig to the next level with the ASUS ROG CROSSHAIR X870E HERO motherboard, designed for unparalleled performance and seamless connectivity. Built on the robust AMD X870E chipset, this motherboard is compatible with the latest Socket AM5 processors, ensuring you get the most out of your high-performance components.
Advanced AI Technologies
- AI Networking II: Utilizes intelligent technology to continuously optimize network performance, providing reliable and high-speed connectivity capable of unleashing the full potential of WiFi 7.
- AI Overclocking: Experience faster and smarter tuning to push your CPU to its limits with ease.
- AI Cooling II: Achieve optimal thermal and acoustic balance for your build with just a single click.
Performance Features
- Dynamic OC Switcher: Maximize your CPU's performance by automatically switching between manual overclocks for demanding multithreaded tasks and Precision Boost Overdrive for efficiency in single-threaded workloads.
- Overclocking Load Guard: This enhanced current protection mechanism prevents system crashes, allowing you to overclock with confidence.
Key Specifications
- Product Code: 90MB1IE0-M0EAY0
- Form Factor: ATX
- Socket Type: AM5
- Chipset: AMD X870E
Whether you're building a powerhouse for gaming or content creation, the ASUS ROG CROSSHAIR X870E HERO motherboard offers all the features you need to create an exceptional system. Unlock your potential and take control of your gaming experience with cutting-edge technologies designed for enthusiasts.
Audio
Audio chip
Realtek ALC4082
BIOS
BIOS memory size
256 Mbit
BIOS type
UEFI AMI
Clear CMOS button
Yes
Expansion slots
Number of M.2 (M) slots
5
PCI Express x16 (Gen 4.x) slots
4
PCI Express x16 (Gen 5.x) slots
2
Features
Audio output channels
7.1 channels
Component for
PC
Motherboard chipset family
AMD
Motherboard form factor
Windows operating systems supported
Windows 11
Graphics
Parallel processing technology support
Not supported
Internal I/O
12V power connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Front panel audio connector
Yes
Number of chassis fan connectors
4
Number of SATA III connectors
4
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2x2 connectors
2
Memory
ECC сompatibility
ECC & Non-ECC
Maximum internal memory
192 GB
Memory channels
Dual-channel
Memory slots type
DIMM
Number of memory slots
4
Supported memory types
DDR5-SDRAM
Unbuffered memory
Yes
Network
Bluetooth
Yes
Bluetooth version
5.4
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Ethernet LAN
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi
Yes
Wi-Fi standards
Wi-Fi 7 (802.11be)

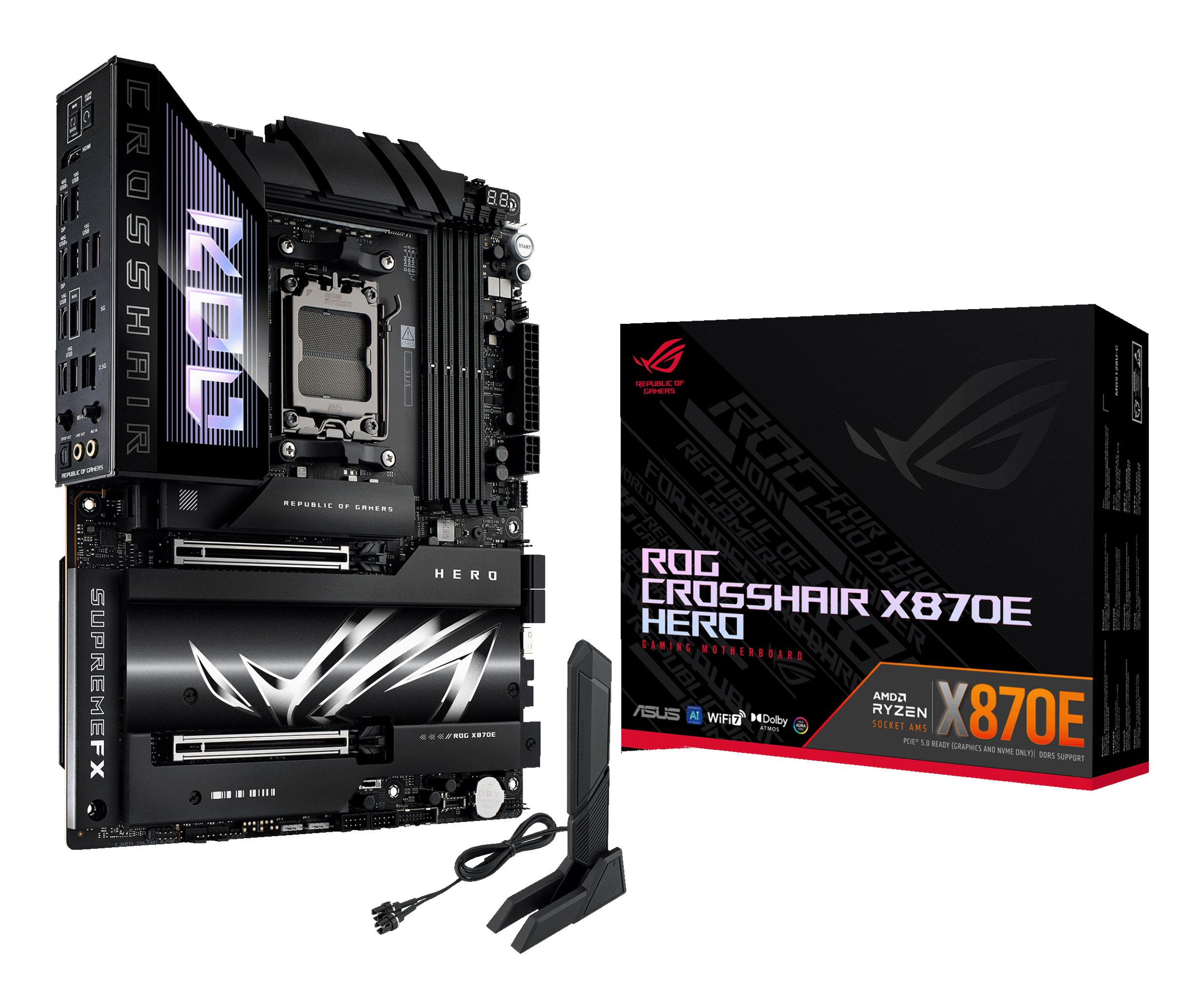

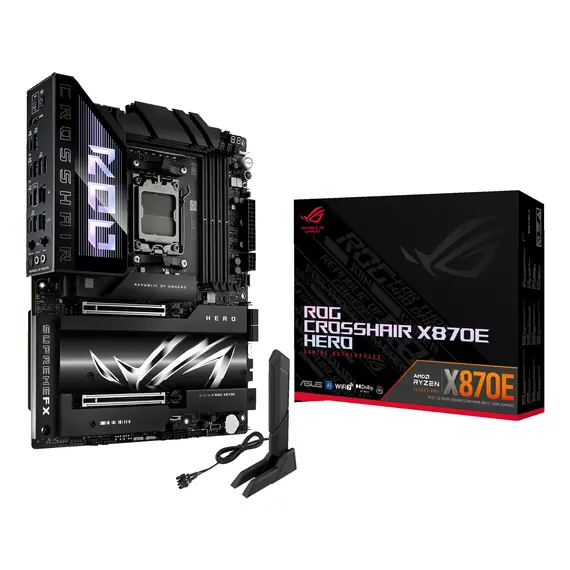

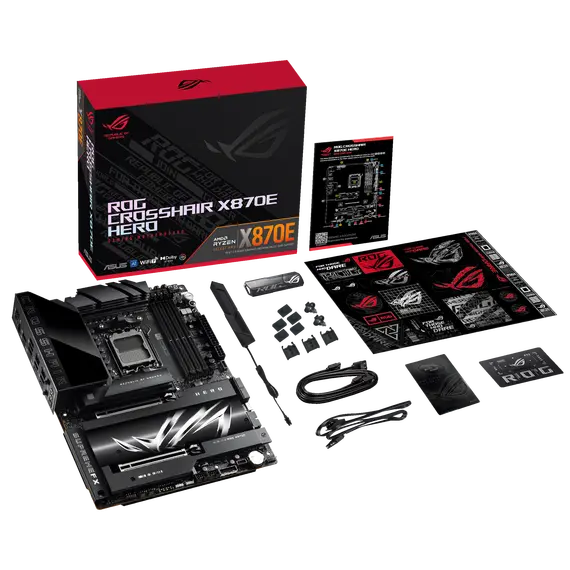

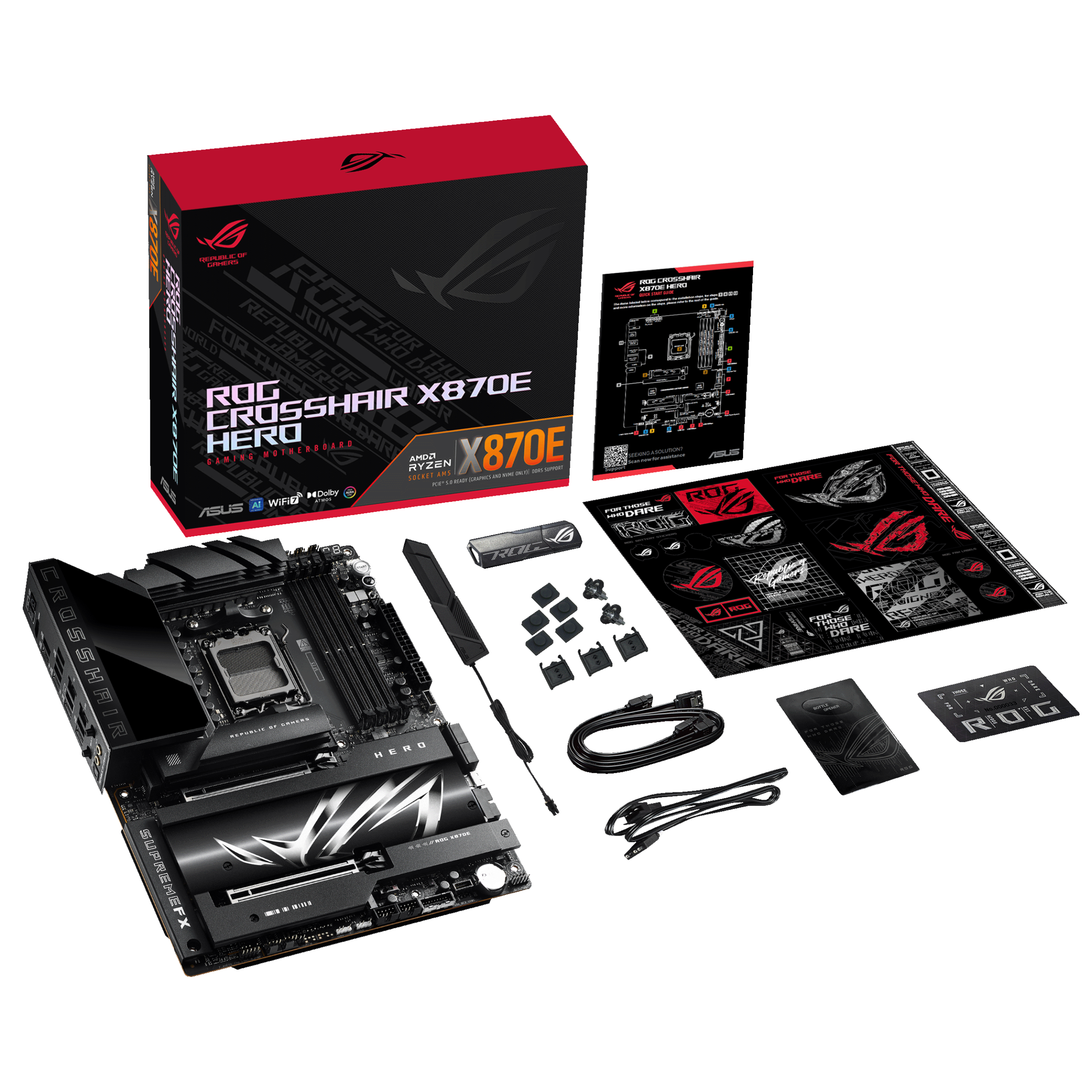

Packaging content
Cables included
SATA
Drivers included
Yes
Packaging data
Package depth
312 mm
Package height
108 mm
Package weight
4.26 kg
Package width
370 mm
Performance
Motherboard chipset
AMD X870E
Ports & interfaces
Ethernet LAN (RJ-45) ports
2
HDMI ports quantity
1
Headphone outputs
1
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB-C ports (rear)
- USB4 ,
- USB 3.2 Gen 2
USB4 Gen 2x2 ports quantity
2
Video outputs
- HDMI
Processor
Processor socket
Compatible processor series
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
Processor manufacturer
Supported processor sockets
- AM5

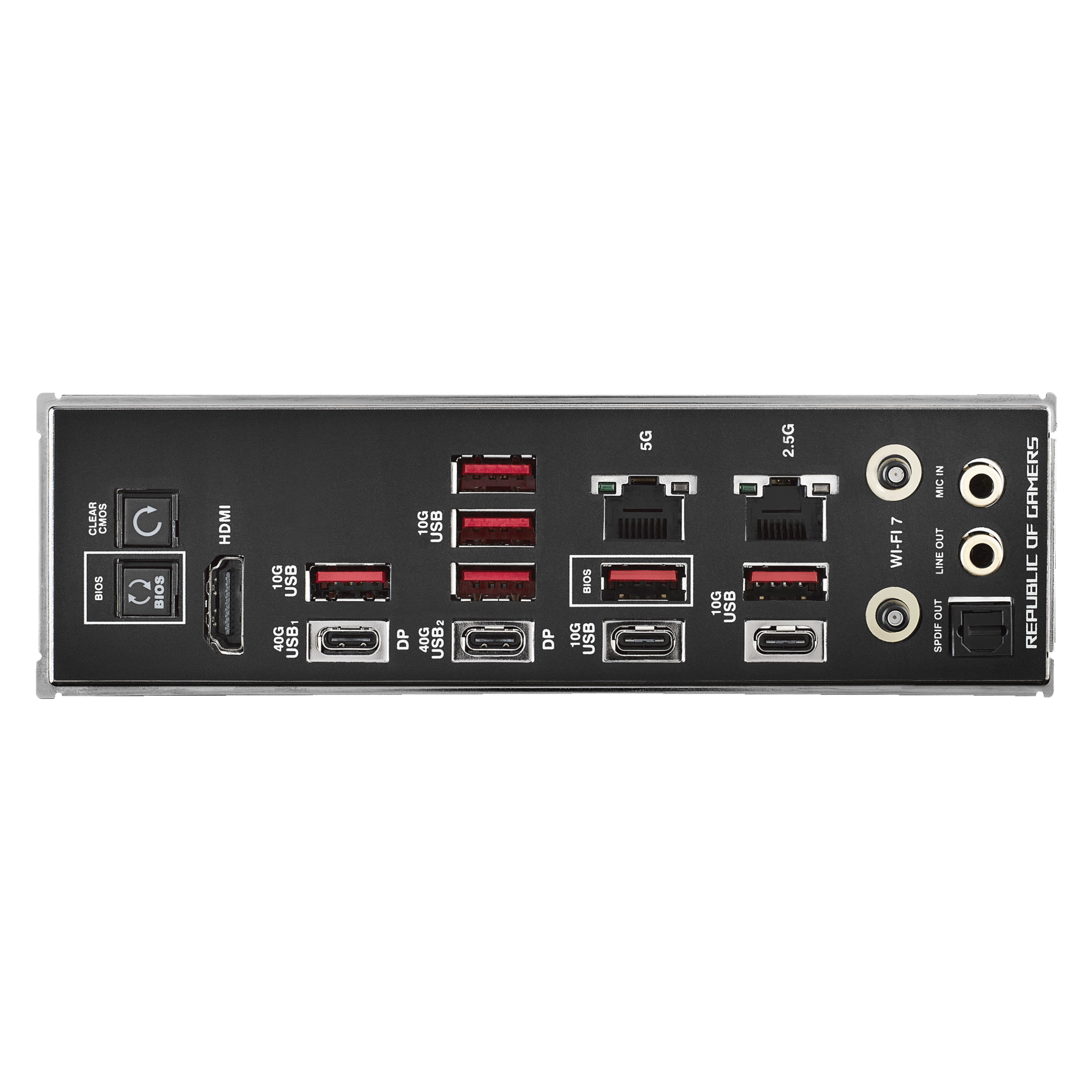

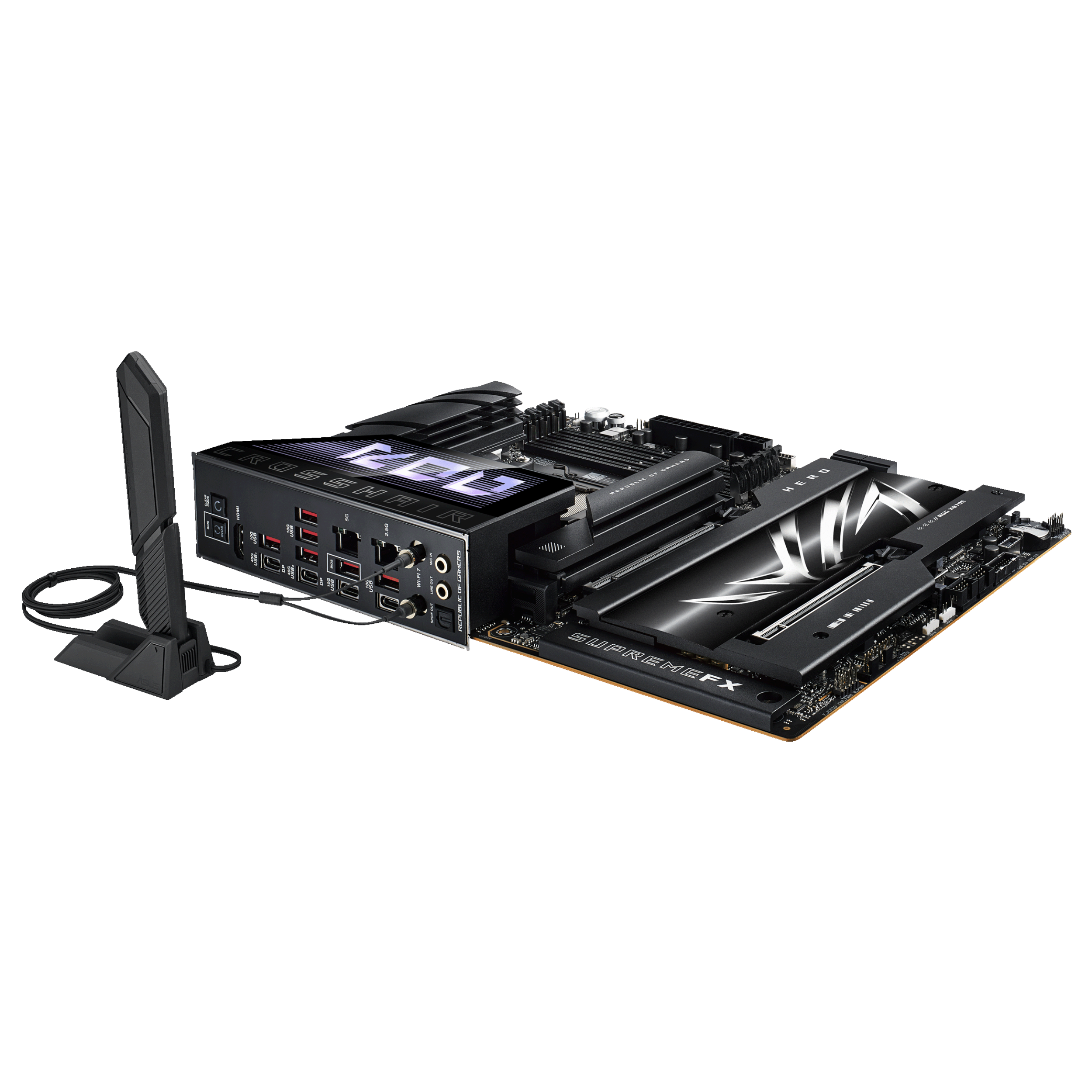

Rear panel I/O ports
S/PDIF out port
Yes
WiFi-AP antenna jack
1
Storage controllers
Number of HDDs supported
5
Number of storage drives supported
10
RAID levels
0, 1, 10, 5
RAID support
Yes
Supported storage drive interfaces
M.2, SATA III, SlimSAS
Supported storage drive types
HDD & SSD
Weight & dimensions
Depth
244 mm
Height
50
mm
Weight
2.6 kg
Width
305 mm
