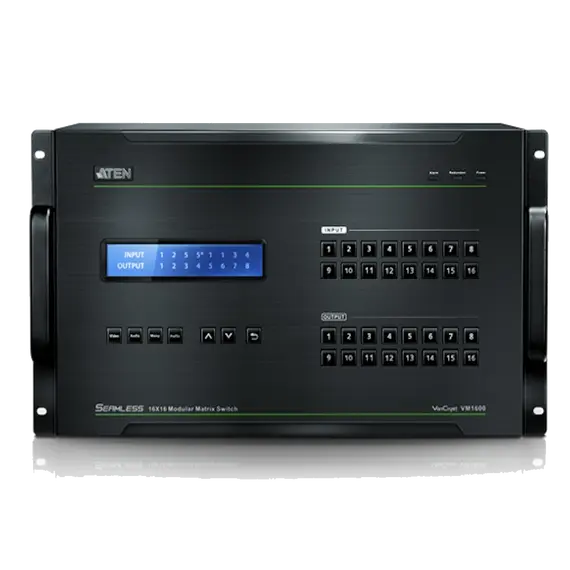

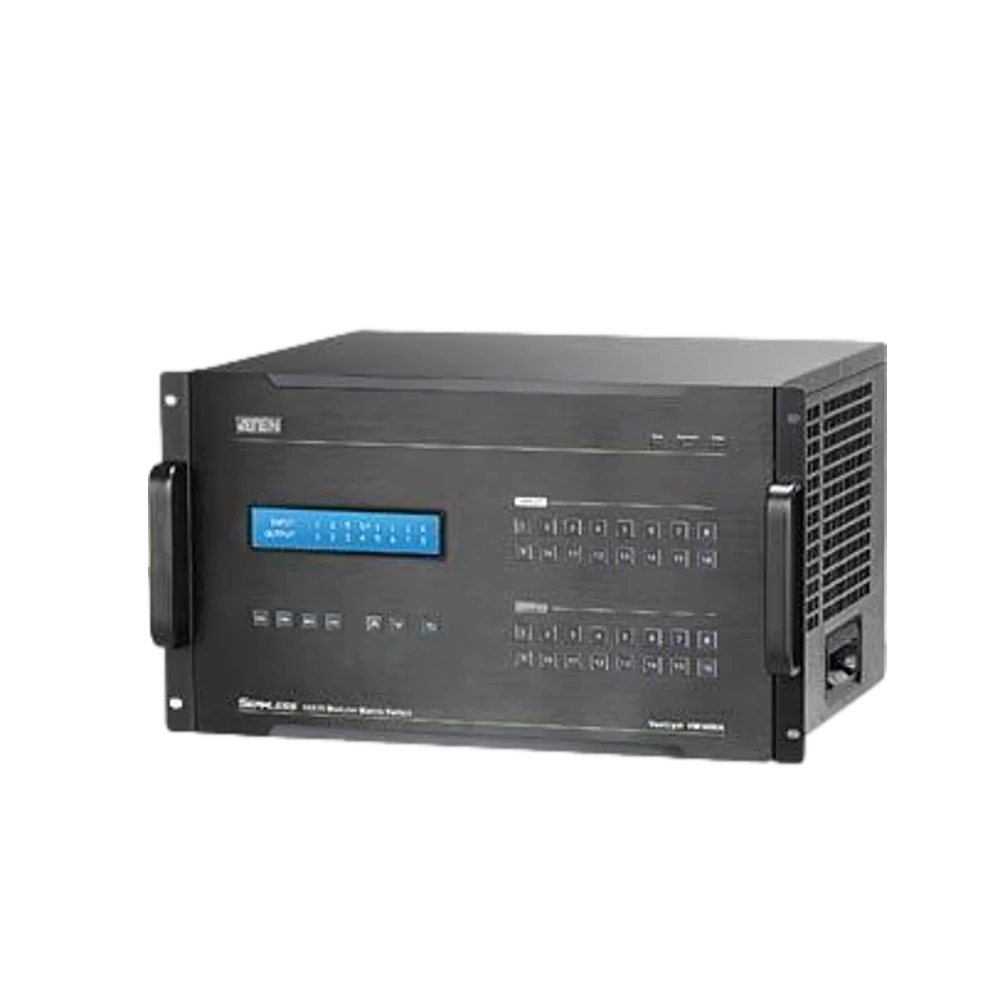

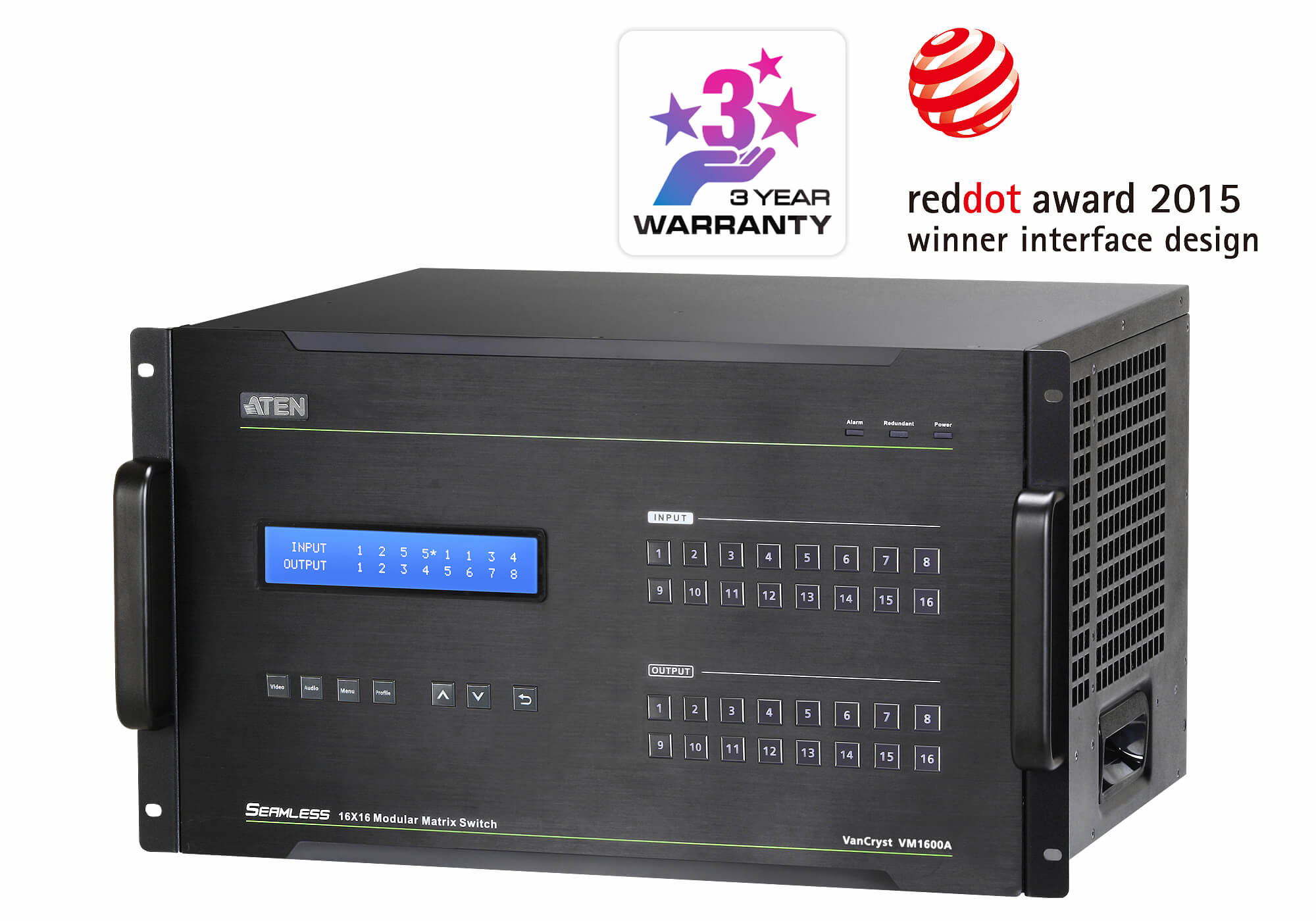

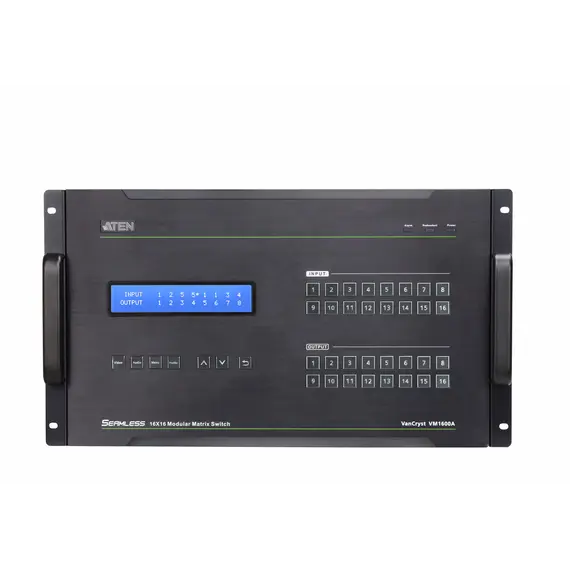

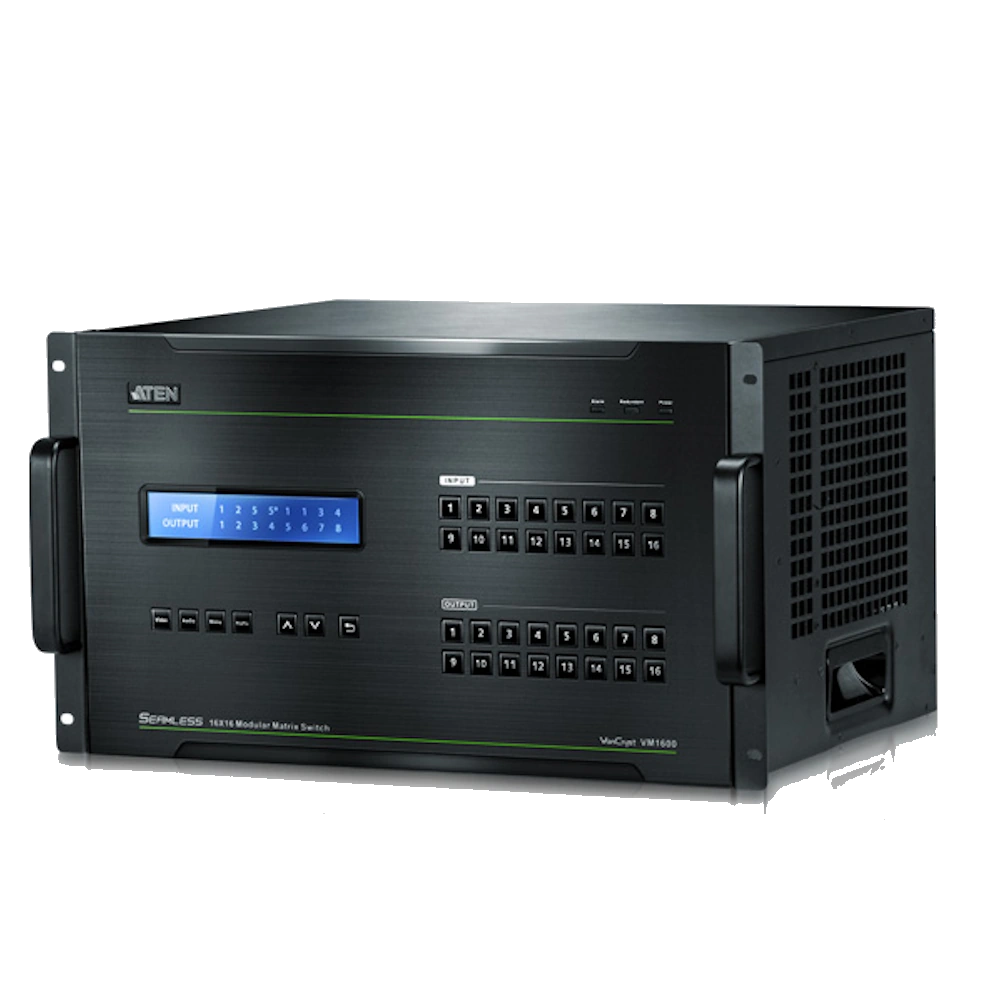

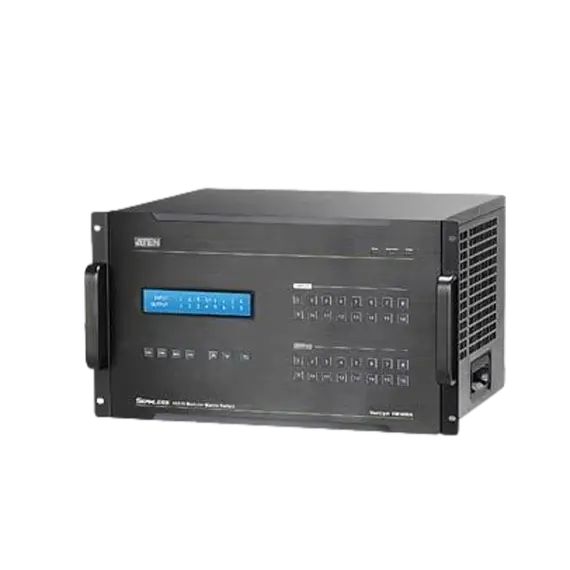

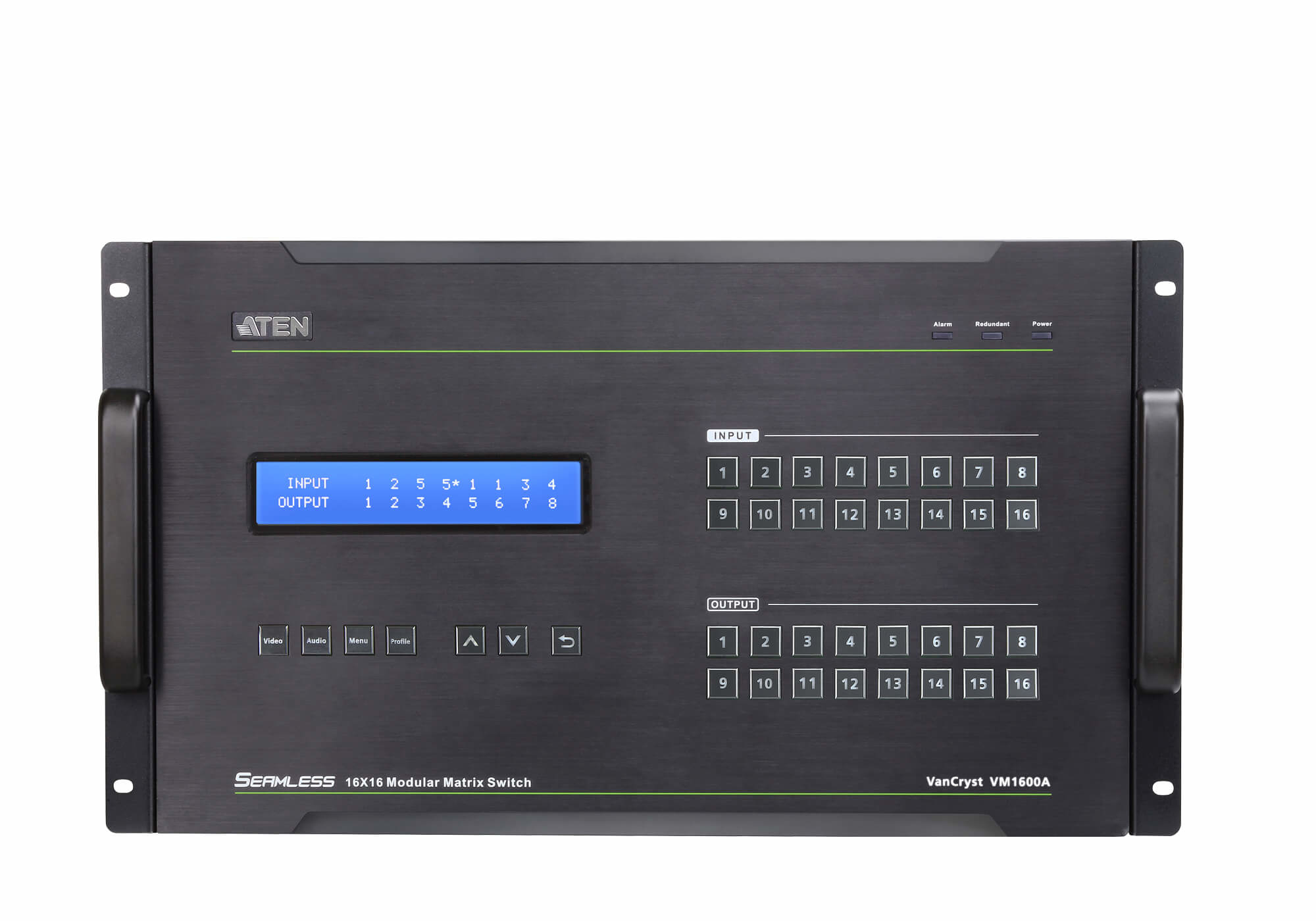

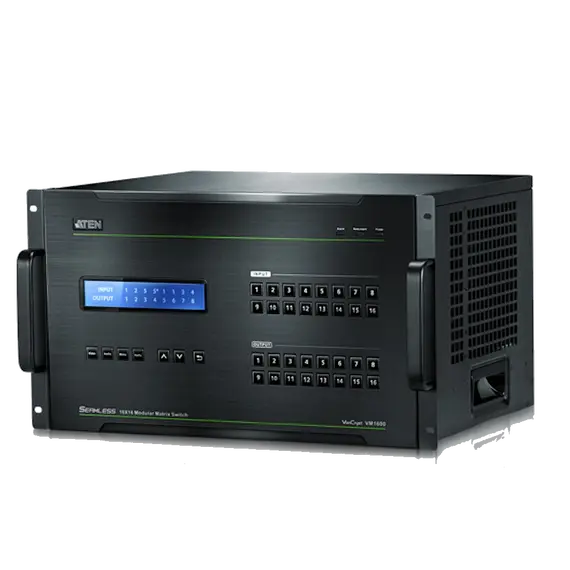

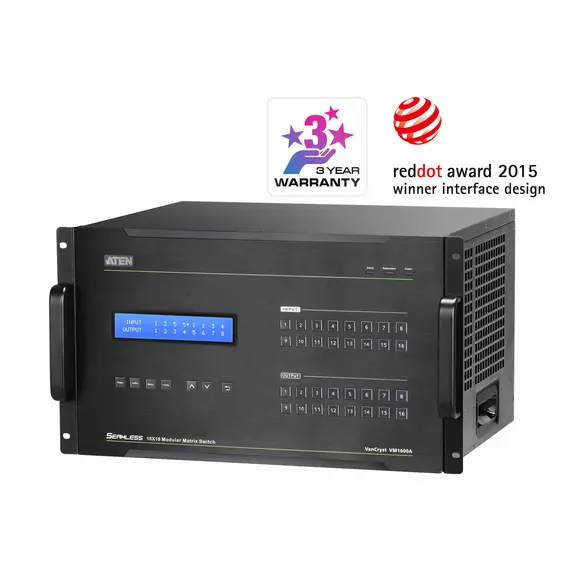

ATEN VM1600A-AT-G Modular AV Matrix Switcher
The ATEN VM1600A-AT-G is a modular 16 × 16 AV matrix switcher designed to route video and audio from up to 16 sources to 16 displays. Its flexible, hot-swappable input and output boards support a range of signal formats, while built-in scaling and seamless switching help deliver clear, consistent visuals and smooth source changes in real time.
Designed for control rooms, broadcast environments, transportation hubs and other mission-critical spaces, the VM1600A supports video wall layouts with up to 32 custom profiles. It also offers flexible audio management, including audio de-embedding and embedding with HDMI and built-in stereo audio.
Key Features

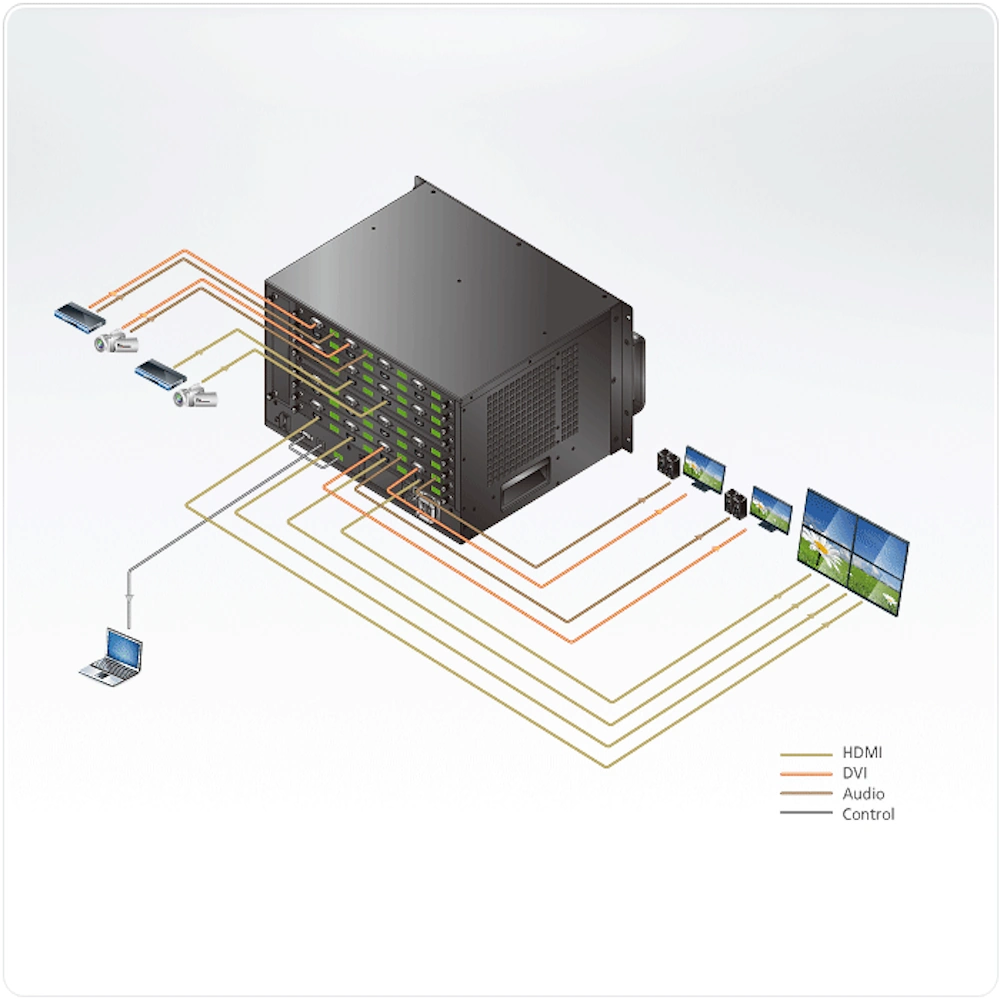

- Routes up to 16 sources to 16 displays with comprehensive control
- Modular design supports HDMI, DVI, VGA, HDBaseT and 3G-SDI
- Built-in scaler on every output for consistent display across resolutions
- Video wall support with up to 32 custom profiles
- Seamless Switch technology enables smooth, real-time source transitions

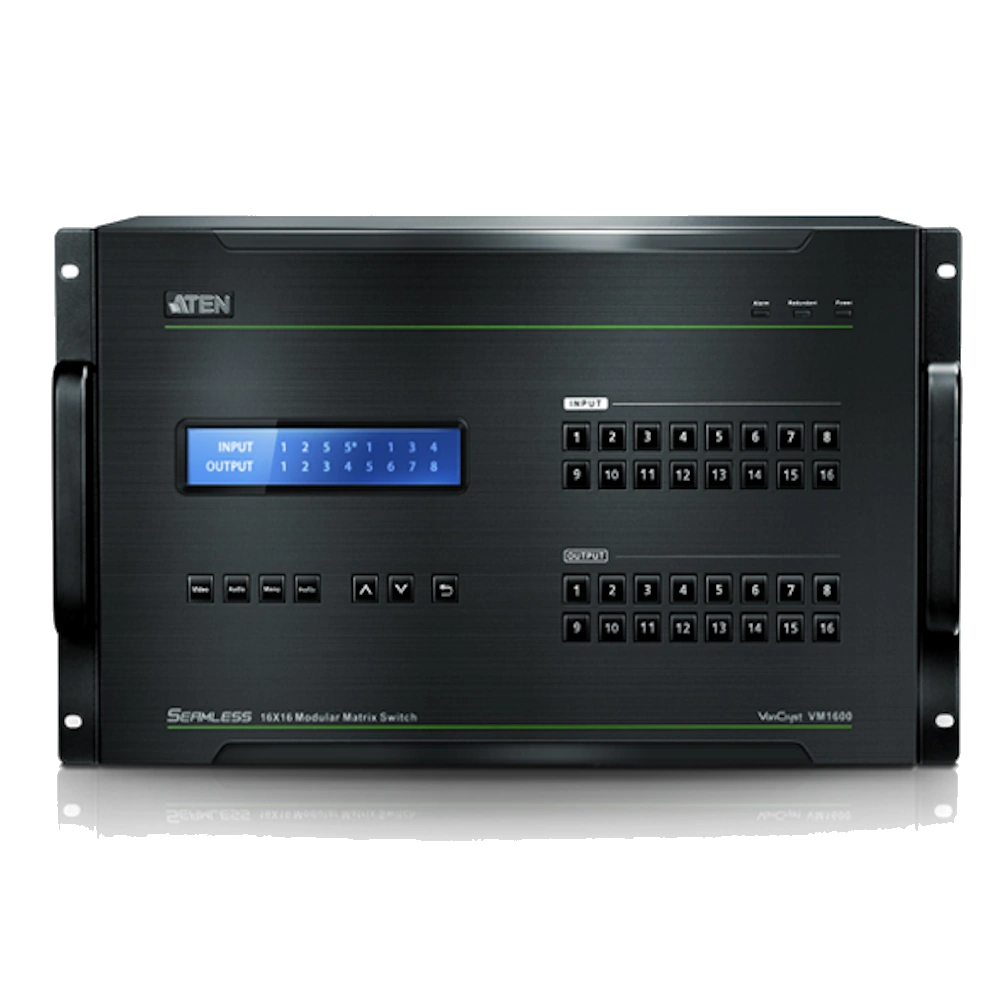

- Control options include front-panel buttons, RS-232, Telnet and a web GUI
- Flexible audio embedding and de-embedding with HDMI and built-in stereo audio
Specifications
| Product type | Modular AV matrix switcher |
|---|---|
| Product code | 99366-006-65 |
| Matrix configuration | 16 × 16 |
| Maximum routing capacity | Up to 16 sources to 16 displays |
| Supported formats | HDMI, DVI, VGA, HDBaseT and 3G-SDI |

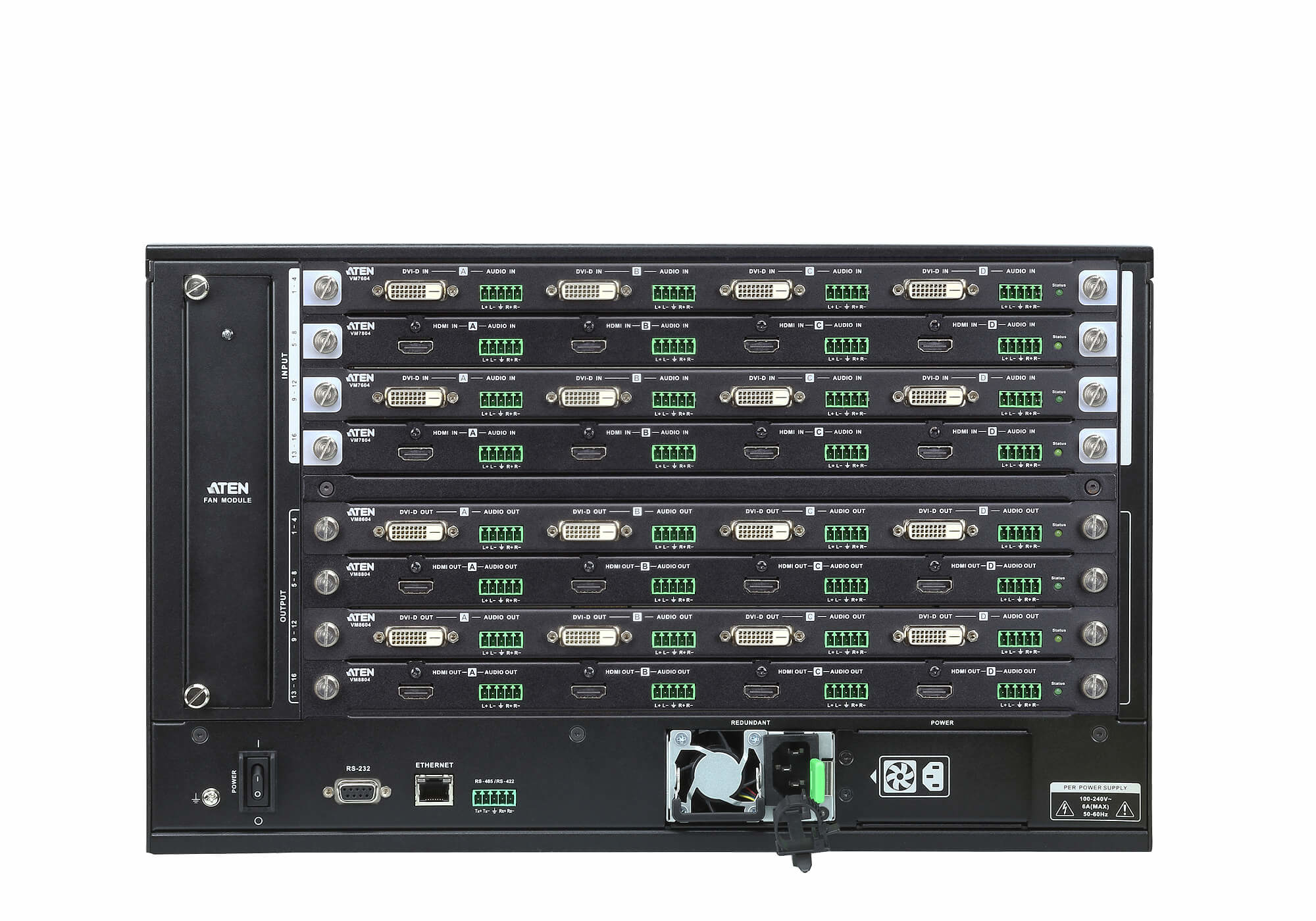

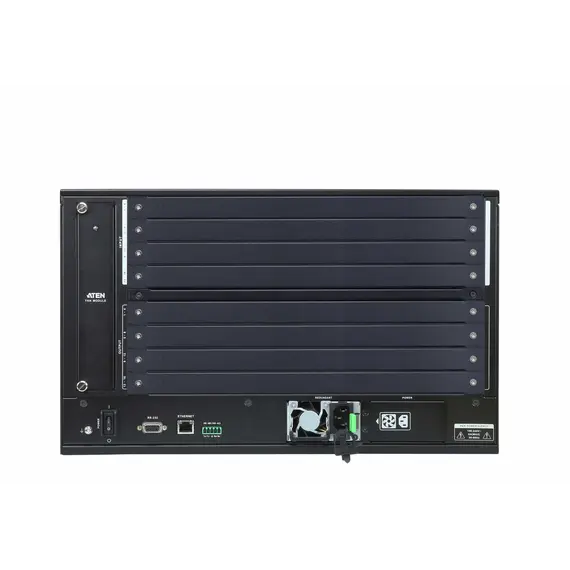

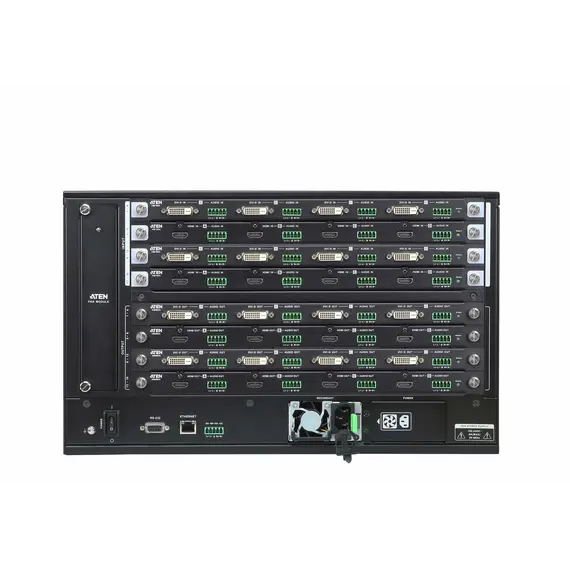

| Input/output boards | Hot-swappable, modular boards |
| Video processing | Built-in scaler on every output |
| Video wall profiles | Up to 32 custom profiles |
| Switching technology | Seamless Switch |
| Audio features | Audio embedding and de-embedding; HDMI and built-in stereo audio |
| Control methods | Front-panel buttons, RS-232, Telnet and web GUI |
What's in the Box
- ATEN VM1600A-AT-G Modular AV Matrix Switcher
- AC cable
Data transfer rate
15.2 Gbit/s
Package depth
579 mm
Package height
390 mm
Package weight
18.3 kg
Package width
518 mm
Design
Housing colour
Black
Housing material
Metal
LED indicators
Yes
Rack capacity
6U
Rack mounting
Yes
Features
Built-in display
Yes
EDID management
Yes
Product type
Modular AV matrix switchers
Logistics data
Harmonized System (HS) code
85299097
Master (outer) case height
390 mm
Master (outer) case length
579 mm
Master (outer) case net weight
17.6 kg
Master (outer) case weight
18.3 kg
Master (outer) case width
518 mm
Quantity per master (outer) case
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Packaging content
Cables included
AC

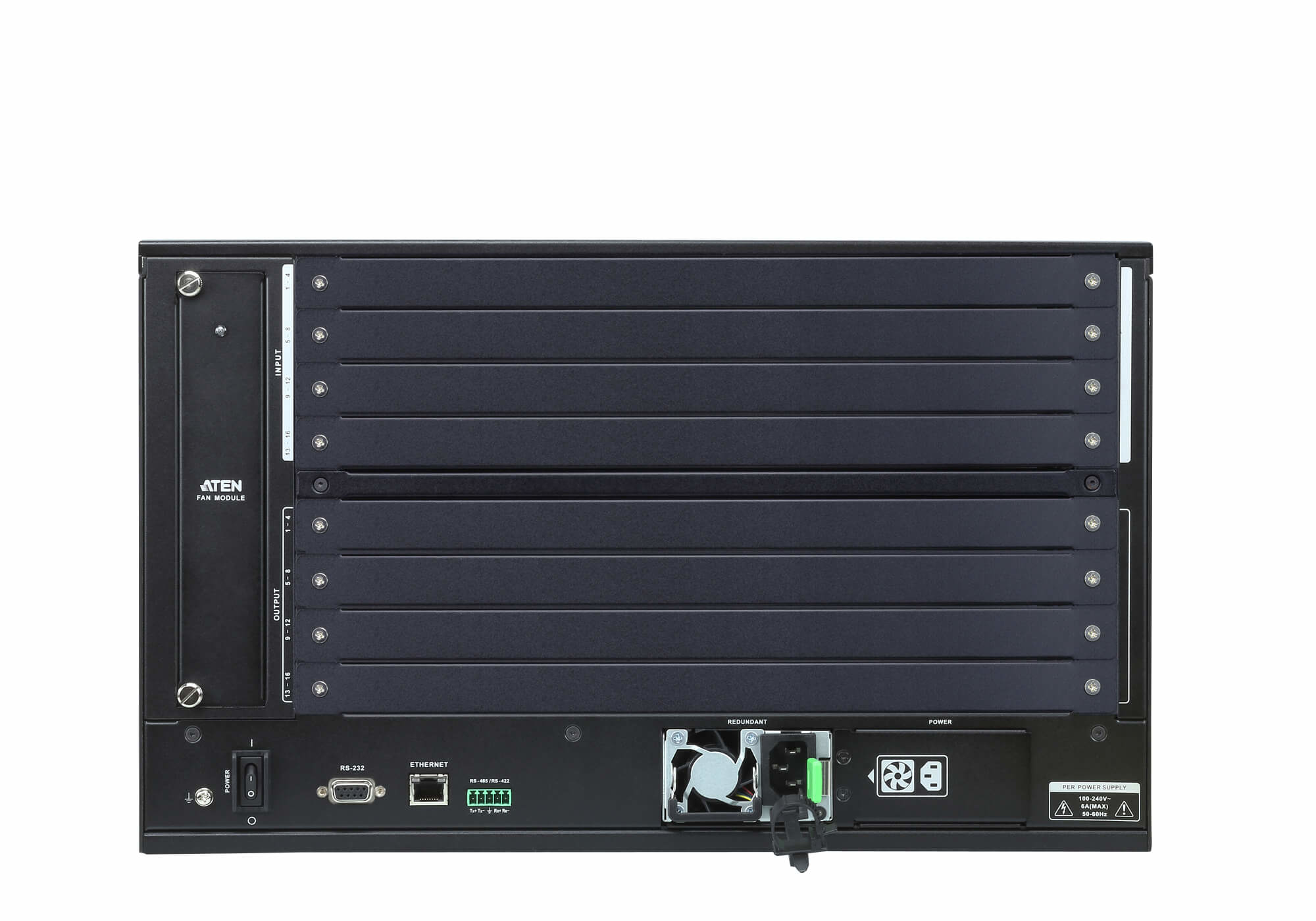

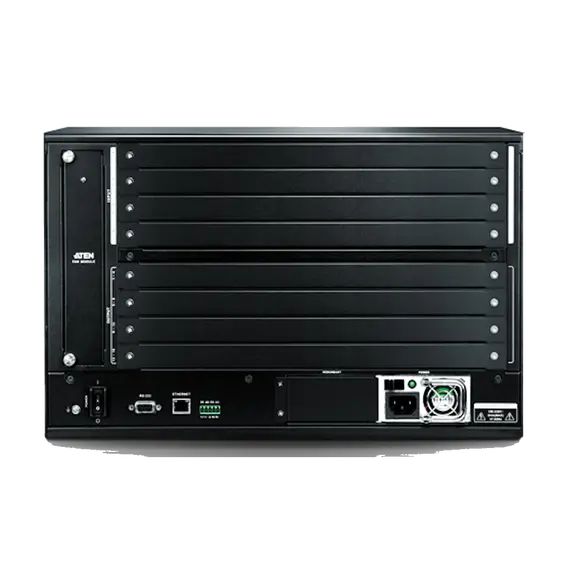

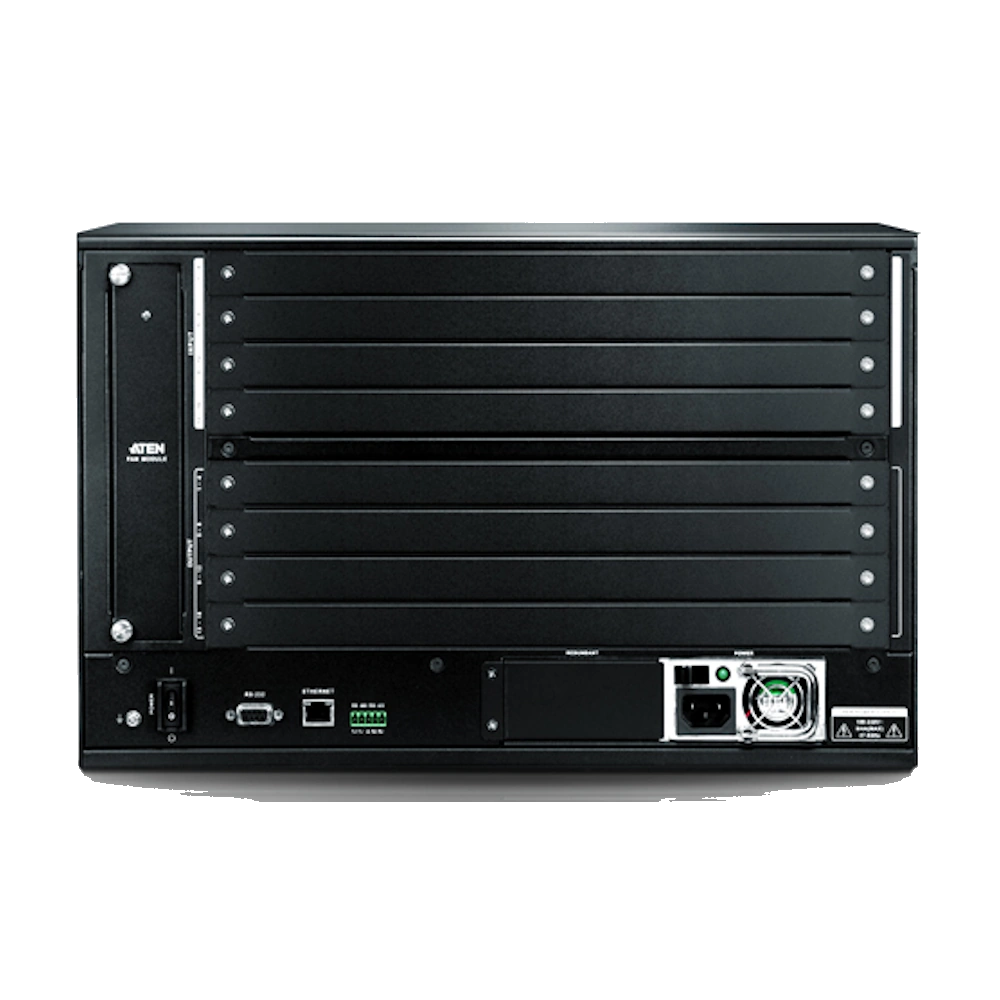

Ports & interfaces
RJ-45 input ports
1
RS-232 ports
1
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Input current
6 A
Power consumption (max)
460 W
Weight & dimensions
Depth
482 mm
Height
265.9
mm
Weight
17.6 kg
Width
466.6 mm
