ATEN VM6809H-AT-G Scaling Matrix Switcher - 10.2 Gbit/s, 4096 x 2160 pixels, HDMI 2.0
- — Warranty: 1 Year Warranty
- — Return and exchange up to 30 days
- — Best price
- BrandATEN
- Weight7.35 kg
- All features

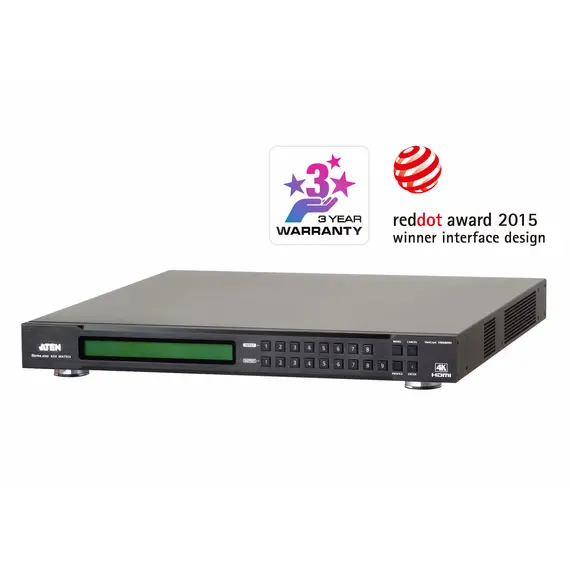

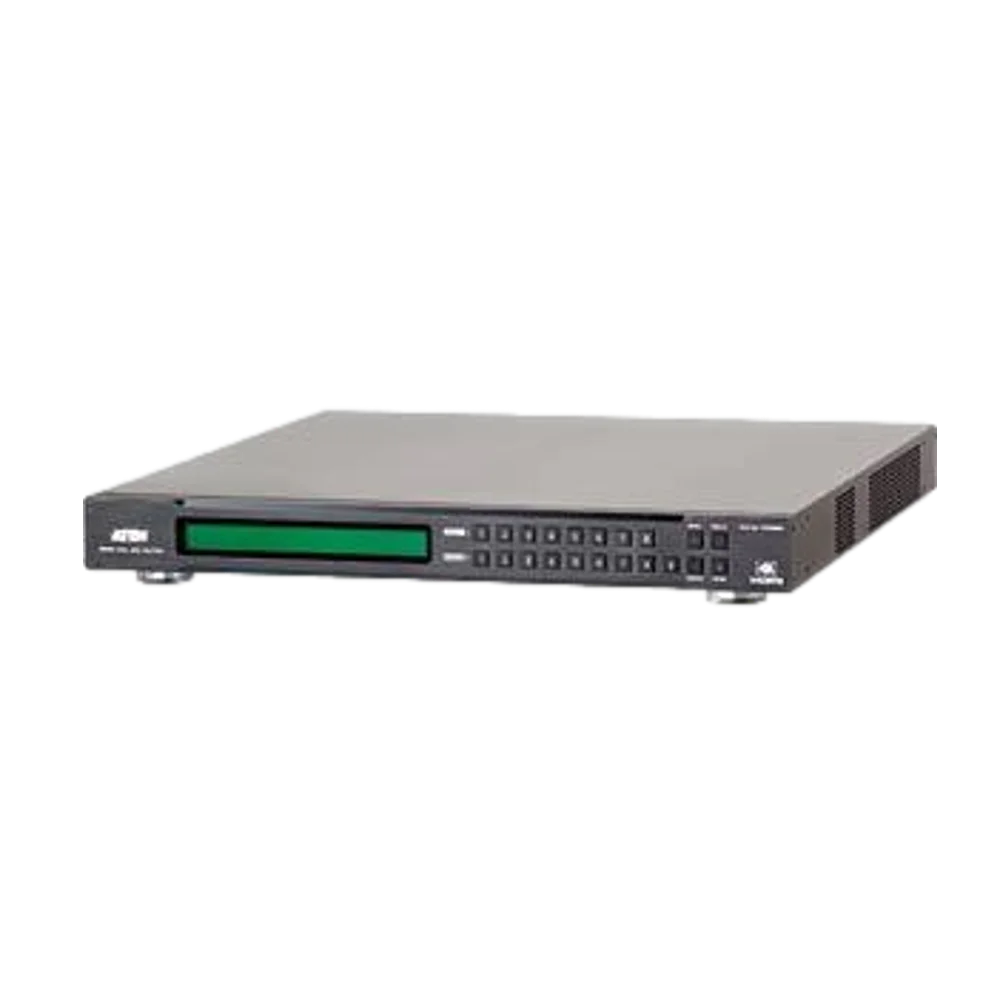

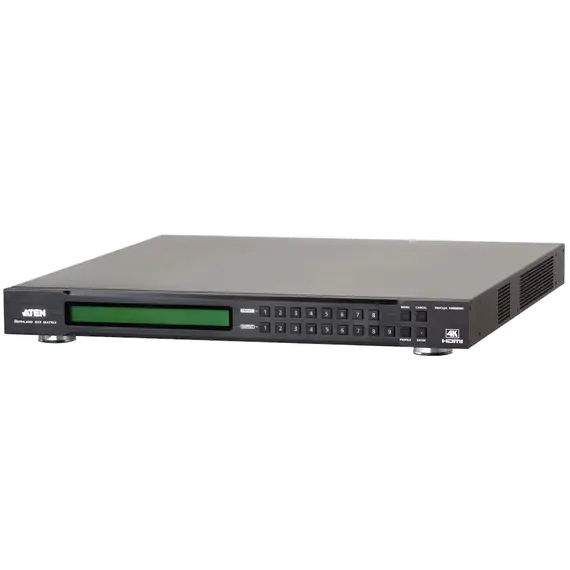

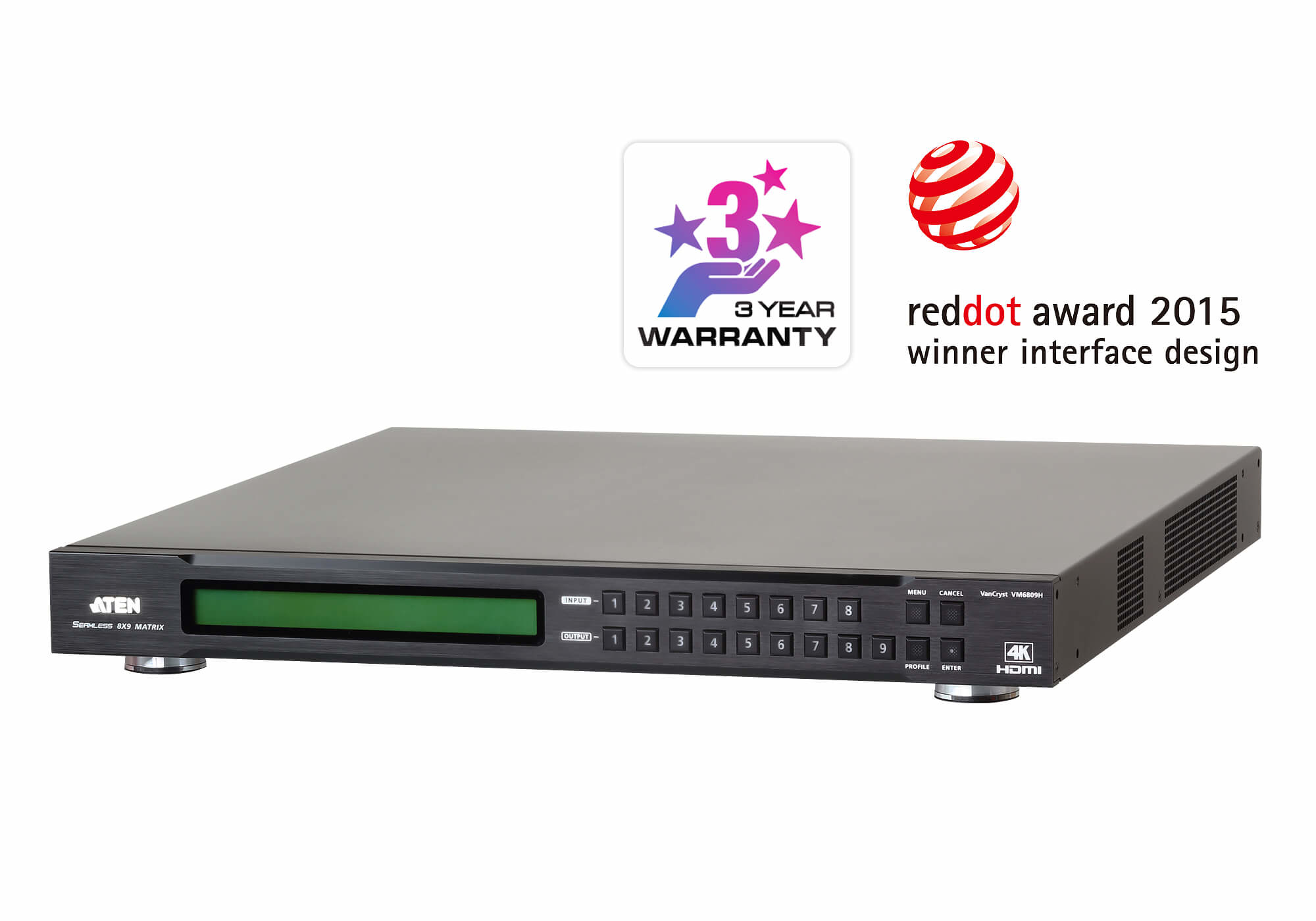

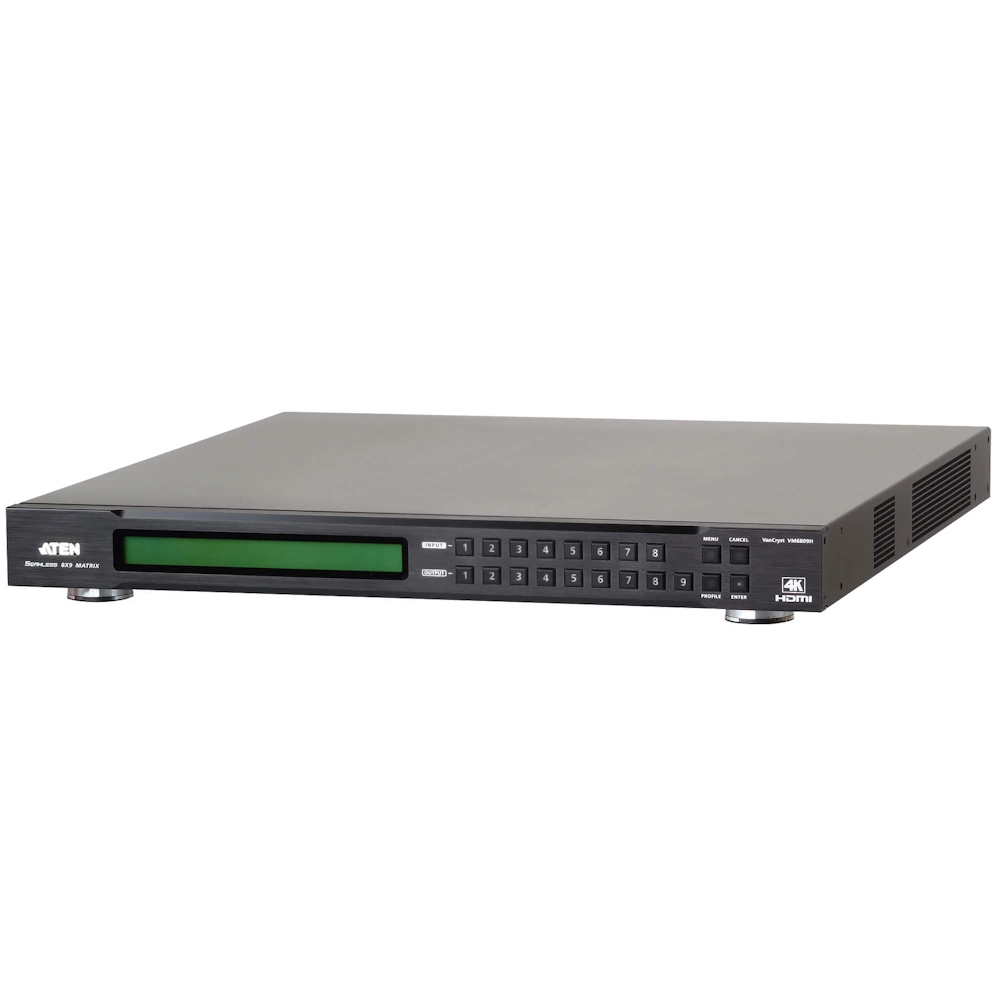

ATEN VM6809H-AT-G Scaling Matrix Switcher
The ATEN VM6809H-AT-G is an HDMI matrix switcher and scaler designed for professional audiovisual installations. It routes up to eight HDMI sources to nine displays, with built-in scaling that automatically adjusts each source to the resolution of the connected display. Its 4K support, customisable video wall features and flexible control options make it a practical solution for presentations, smart classrooms and control rooms.
Flexible 4K Video Distribution
Support for 4K at 60 Hz with 4:2:0 chroma sampling and 4K at 30 Hz with 4:4:4 chroma sampling helps deliver clear, detailed video across multiple screens. FPGA-based Seamless Switch technology enables real-time source switching without transition delay, while built-in audio de-embedding provides additional flexibility for audiovisual setups.
Video Wall and Control Features

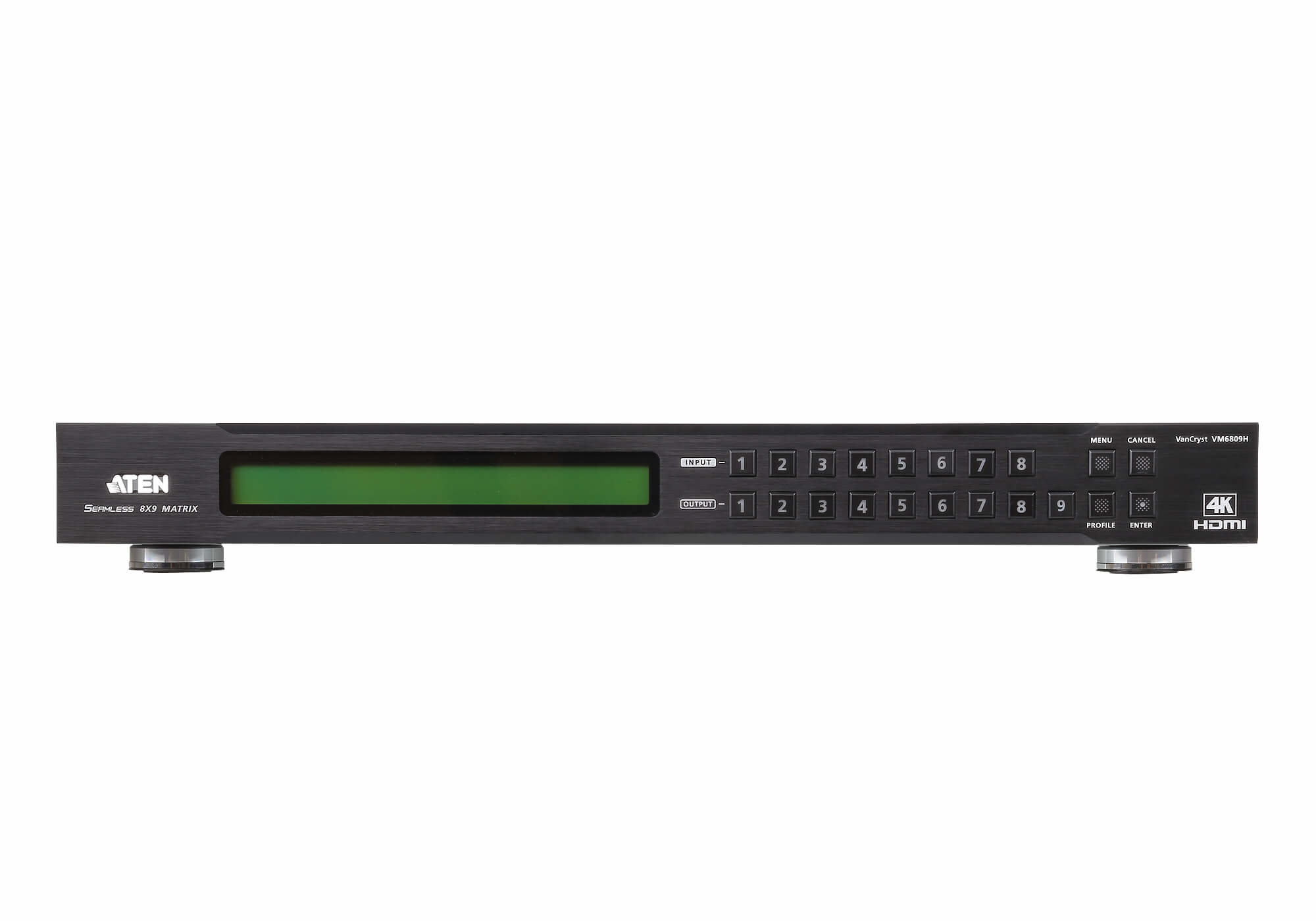

Create tailored video wall layouts with support for up to 17 custom profiles. Operators can manage the switcher using the front-panel buttons, RS-232, Telnet, the web GUI or an app. EDID Wizard and HDCP 2.2 support help simplify display and content compatibility.
Product Specifications
| Product type | Scaling matrix switcher |
|---|---|
| Product code | 99366-006-78 |

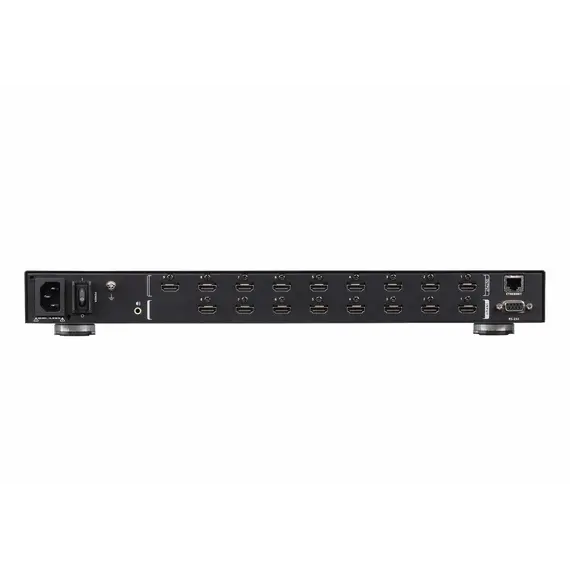

| HDMI inputs | 8 |
| HDMI outputs | 9 |
| Maximum supported data rate | 10.2 Gbit/s |
| Maximum resolution | 4096 × 2160 pixels |
| HDMI standard | HDMI 2.0 |
| 4K at 60 Hz | Supported at 4:2:0 |
| 4K at 30 Hz | Supported at 4:4:4 |
| Scaling | Built-in scaler automatically adjusts each source to the display resolution |
| Video wall | Supported, with up to 17 custom profiles |
| Switching technology | FPGA-based Seamless Switch for real-time switching without transition delay |
| Audio features | Built-in audio de-embedding; Dolby TrueHD and DTS-HD Master Audio support |
| Content protection | HDCP 2.2 |
| Display management | EDID Wizard |
| Control options | Front-panel buttons, RS-232, Telnet, web GUI and app |
What's in the Box
- ATEN VM6809H-AT-G Scaling Matrix Switcher
- AC cable
