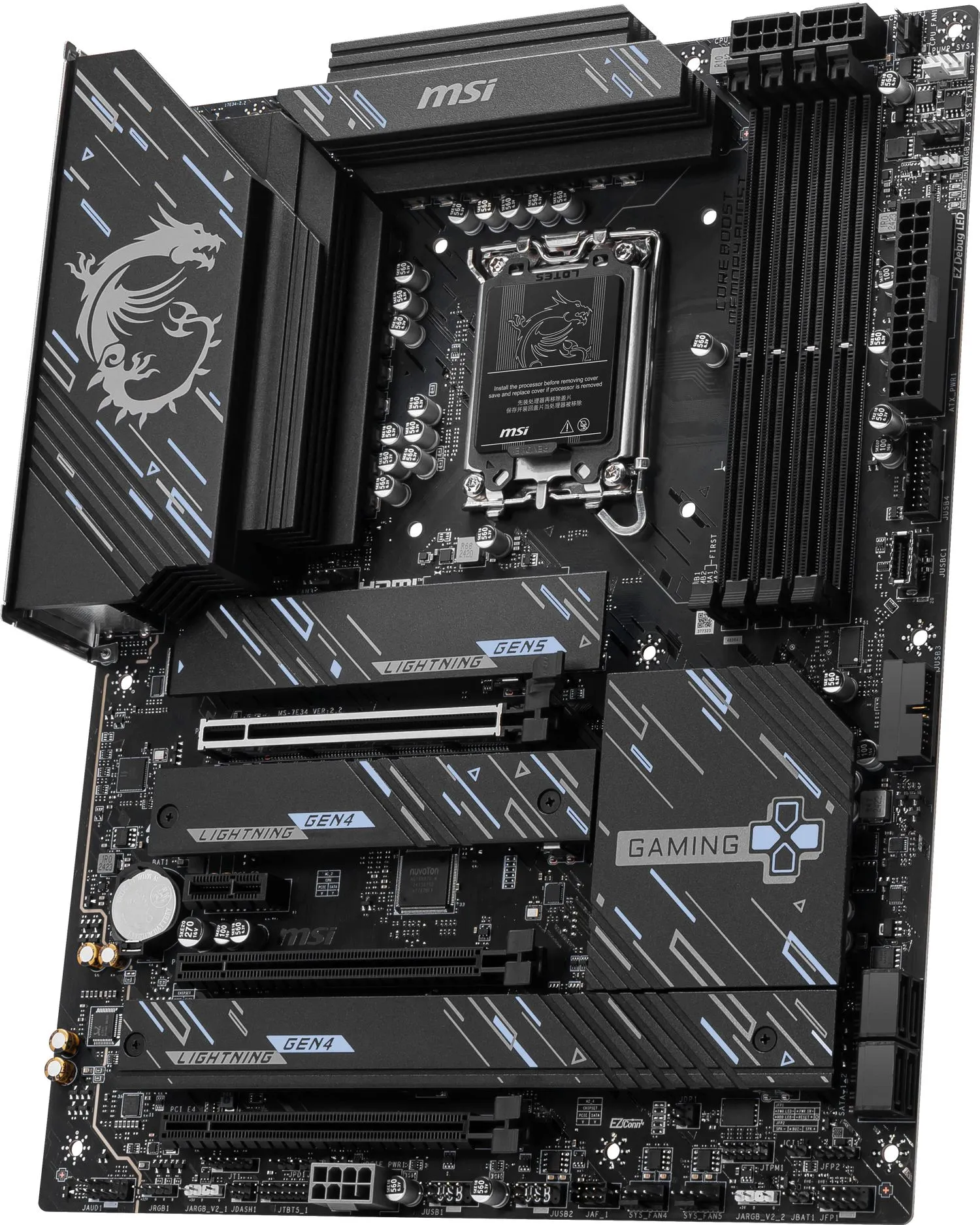

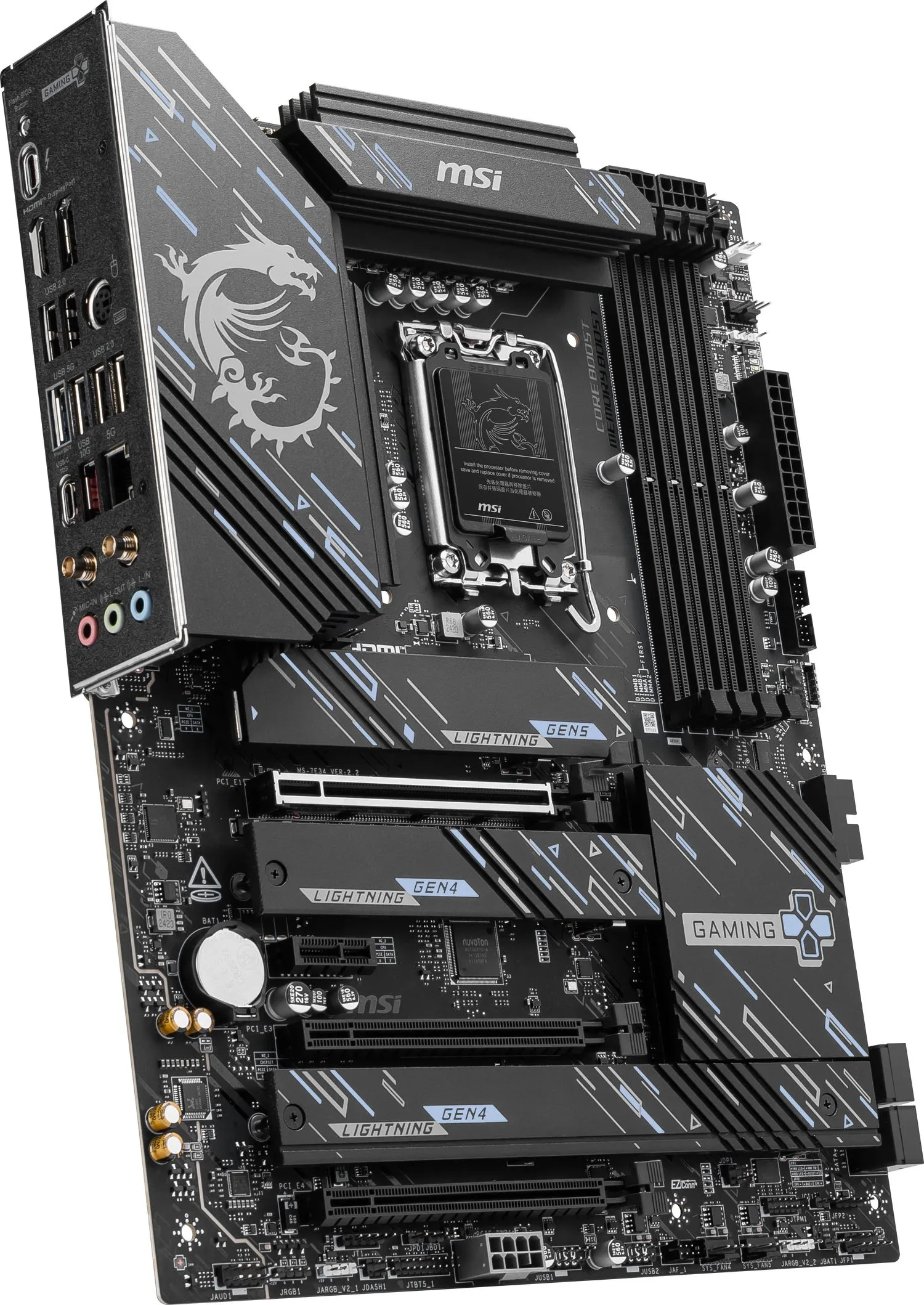

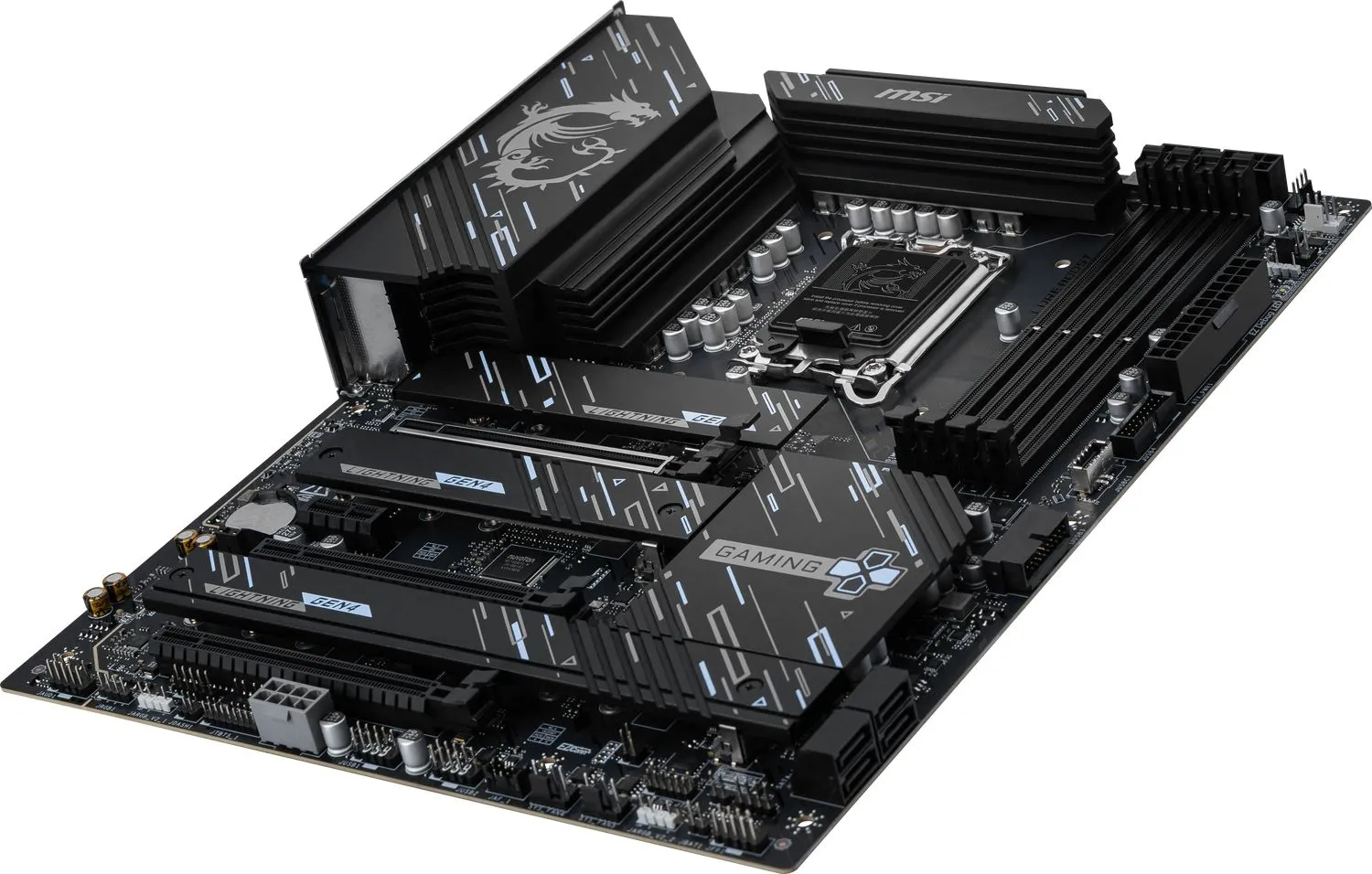

MSI Z890 GAMING PLUS WIFI motherboard Intel Z890 LGA 1851 (Socket V1) ATX, Z890 GAMING PLUS WIFI

Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Motherboard chipsetIntel Z890
Supported memory typesDDR5-SDRAM
Number of memory slots4
Motherboard form factorATX
All features

Z890 GAMING PLUS WIFI
Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

14+1+1+1 DRPS POWER DESIGN
Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+1+1+1 digital power phases. Combining dual power connectors and 55A DrMOS, Z890 GAMING PLUS WIFI is ready for the challenge of high-end processors.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.

Manufacturer site

Main

Brand

MSI

Warranty

1 year warranty

Product code

4711377257718

EAN/UPC code

4711377257718

Expansion slots

Number of M.2 (M) slots

4

PCI Express x1 slots

1

PCI Express x16 slots

3

Features

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Motherboard chipset

Intel Z890

Motherboard chipset family

Intel

Motherboard form factor

ATX

Product colour

Black

Windows operating systems supported

Internal I/O

Number of SATA III connectors

4

Total number of SATA connectors

4

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

4

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Memory

ECC сompatibility

Non-ECC

Maximum internal memory

256 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Number of memory slots

4

Supported memory clock speed (max)

9200 MHz

Supported memory clock speeds

6400,9200 MHz

Supported memory types

DDR5-SDRAM

Network

Bluetooth

Yes

Bluetooth version

5.4

Ethernet interface type

5 Gigabit Ethernet

Ethernet LAN

Yes

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

WLAN controller model

Killer Wi-Fi 7 BE1750

Processor

Maximum internal memory supported by processor

256 GB

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Supported processor sockets

Intel LGA1851

Compatible processor series

Intel Core Ultra (Series 2)

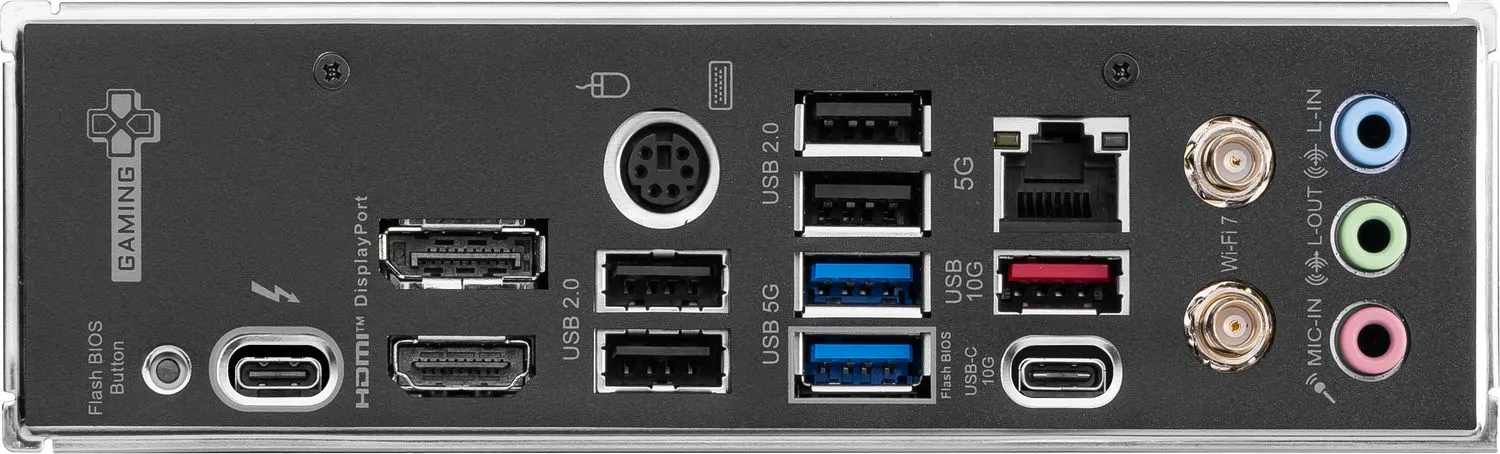

Rear panel I/O ports

DisplayPort version

1.4

DisplayPorts quantity

1

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

HDMI version

2.1

Thunderbolt ports quantity

1

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Storage controllers

Number of HDDs supported

8

Number of storage drives supported

4

RAID levels

0, 1, 5, 10

RAID support

Yes

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Weight & dimensions

Depth

304.8 mm

Width

243.8 mm
