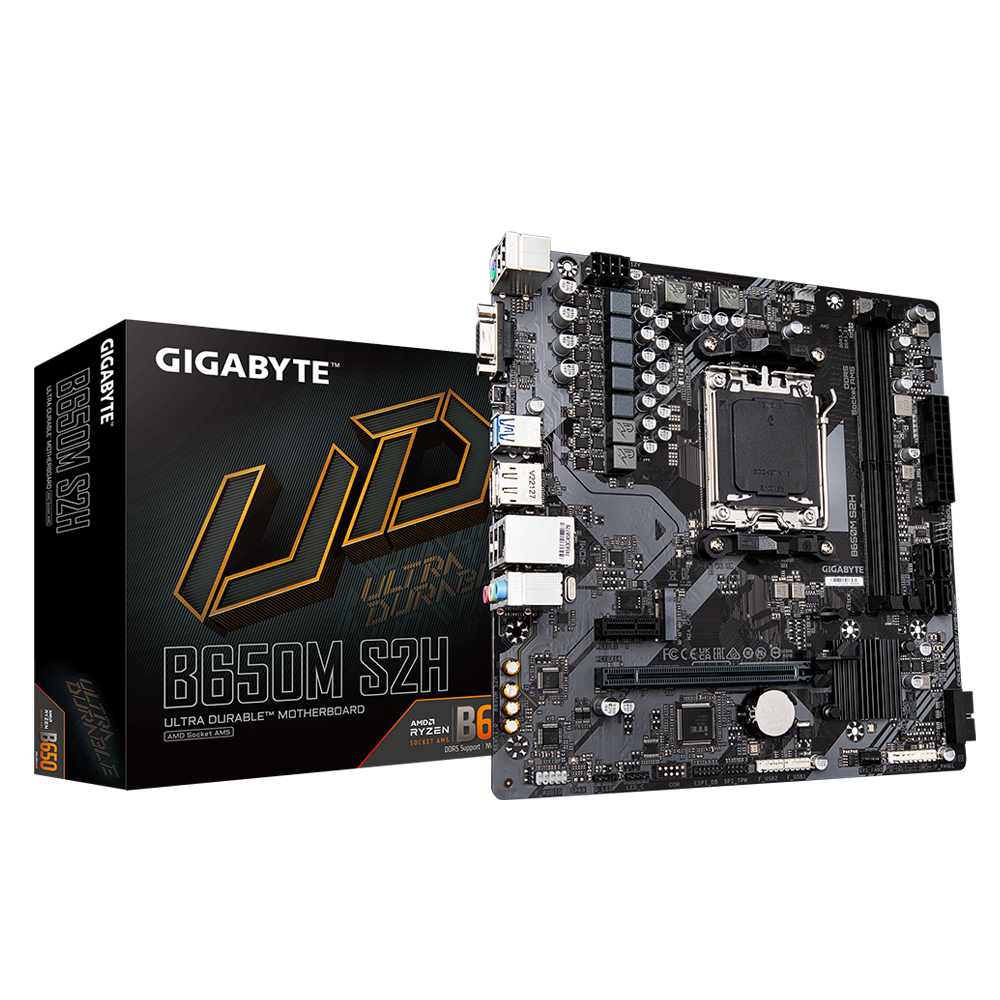

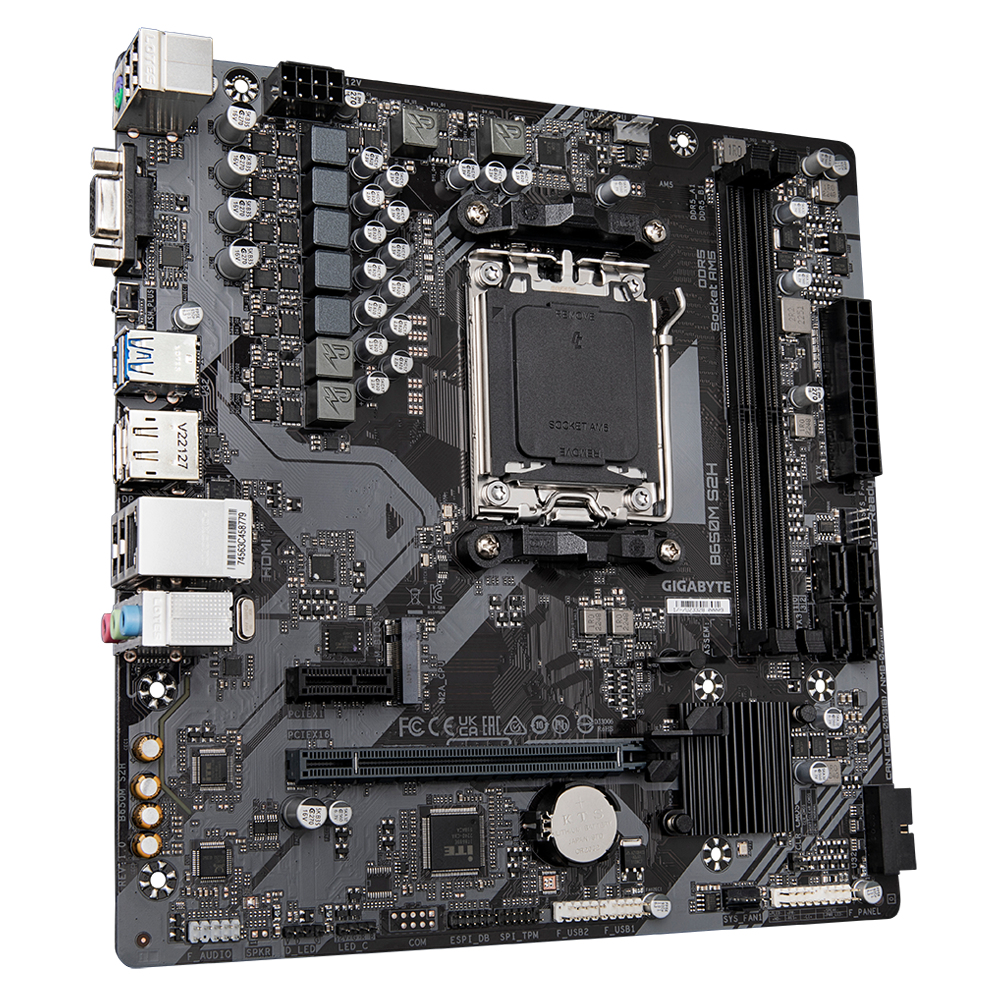

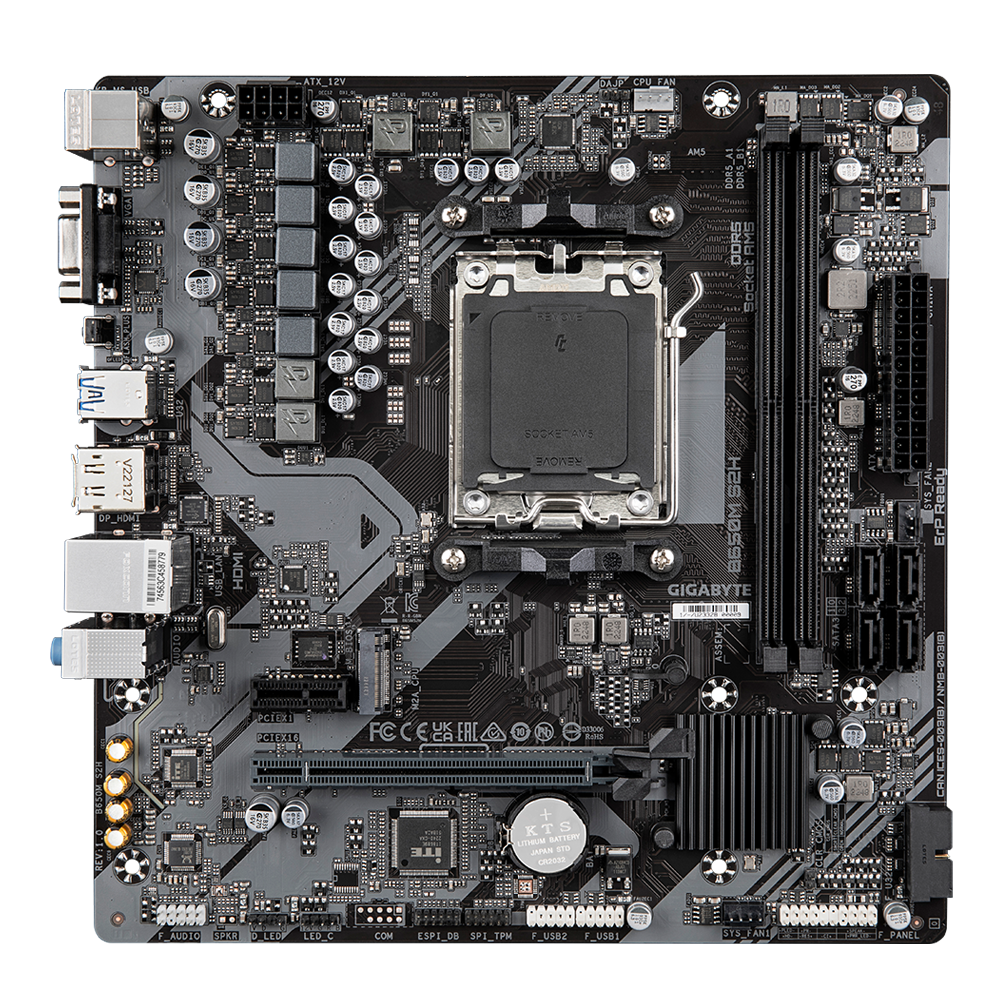

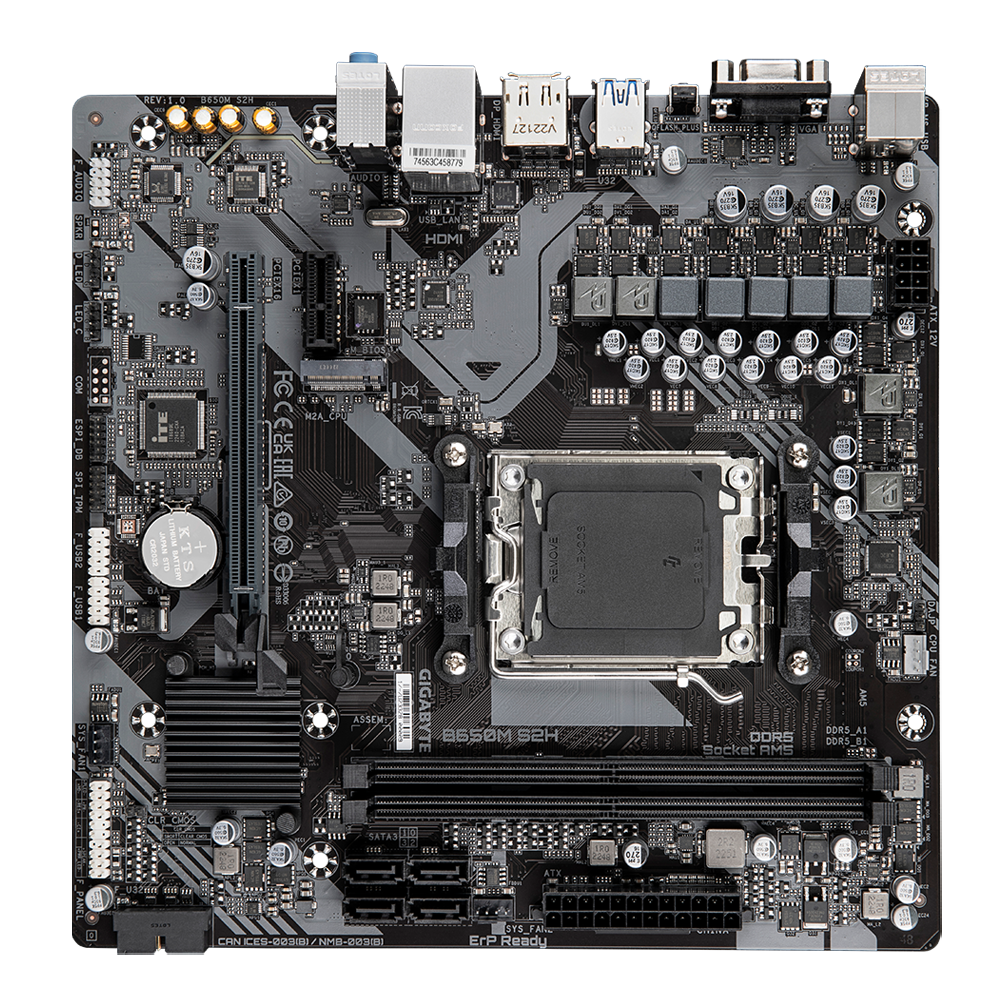

Gigabyte B650M S2H - Motherboard, AMD B650, Socket AM5, micro ATX
- — אחריות: 3 שנות אחריות
- — החזרה והחלפה עד 14 יום
- — המחיר הטוב ביותר
מאפיינים עיקריים
- מותגGigabyte
- סוקט מעבדAM5
- מערכת שבבים בלוח האםAMD B650
- סוג זיכרוןDDR5-SDRAM
- כמות חריצי זיכרון2
- מספר חריצי M.21
- זיכרון פנימי מקסימלי96GB
- מעבדים תואמיםAMD Ryzen 7000 Series
- יציאות וידאוHDMI, DisplayPort, VGA
- פרופיל ביצועיםAMD EXPO
- אחריות3 שנות אחריות
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
EXPO & XMP Support
DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
EXPO & XMP Support
Unlock DDR5 Voltage
Secure Mode
MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
- GIGABYTE exclusive circuit design unlocks Native DDR5 voltage control
- Transforms Native DDR5 memory module to Overclocked DDR5 memory
- Increases DDR5 memory overclocking performance and capability
- Supports all PMIC vendors for maximum compatibility
EXPO & XMP Support
GIGABYTE Exclusive DDR5 Circuit Design
Programmable Mode
GIGABYTE’s exclusive design unlocks Native DDR5 PMIC secure mode into programmable mode and control Native DDR5 voltage with wide range.
EXPO & XMP Support
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
EXPO & XMP Support
EXPO and XMP Dual Support
GIGABYTE AM5 MB supports both AMD EXPO™ and Intel® XMP overclocking memory modules for maximal compatibility. MB will automatically detect both profiles format in SPD, users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.
EXPO & XMP Support
DDR5 Auto Booster
Automatically Boost the Native DDR5 frequency to 5000MHz while the system is under heavy loading by a single click.
EXPO & XMP Support
AMD EXPO™ and Intel® XMP 3.0 User Profile
- SPD Re-defined or retrieve from database
- Performance Simulation
- Save/Load Profile
- Overclocked Performance
- Profile Clearance
Define and create your own SPD profile into Native, AMD EXPO™ and Intel® XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
Hi-Fi Audio
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
- STEP 1: Plug 24pin & 8pin power supply cable on motherboard
- STEP 2: Download motherboard BIOS file and rename to ""gigabyte.bin"", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
- STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
- High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
- Precision Control: Multiple temperature/fan speed control points for precise fan curve
- Dual Curve Mode: Slope/Stair dual mode for different user scenario
- Fan Stop: Fan can stop completely below users' specified temperature point
Smart Fan 6 BIOS UI
- Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
- Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
- Manual Input: For advanced users, we provide fan speed manual input for more precise control.
- EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
- Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
Manufacturer site
חיפוש מוצרים דומים לפי המאפיינים העיקריים
כל המאפיינים 64
כללי3
- אחריות
- 3 שנות אחריות
- מותג
- Gigabyte
- קוד פריט
- GB650MS2H
מעבד5
ביצועים2
- מערכת שבבים בלוח האם
- AMD B650
- פרופיל ביצועים
- AMD EXPO
זכרון9
- זיכרון Unbuffered
- כן
- זיכרון פנימי מקסימלי
- 96GB
- כמות חריצי זיכרון
- 2
- ללא ECC
- כן
- מהירויות שעון זיכרון נתמכות
- 4400,4800,5200,5600,6000,6200,6400 MHz
- מהירות שעון זיכרון נתמכת (מרבית)
- 6400 MHz
- סוג זיכרון
- DDR5-SDRAM
- סוג חריצי הזיכרון
- DIMM
- ערוצי זיכרון
- Dual-channel
חריצי הרחבה3
- PCI Express 16X חריצים
- 1
- PCI Express 1X חריצים
- 1
- מספר חריצי M.2
- 1

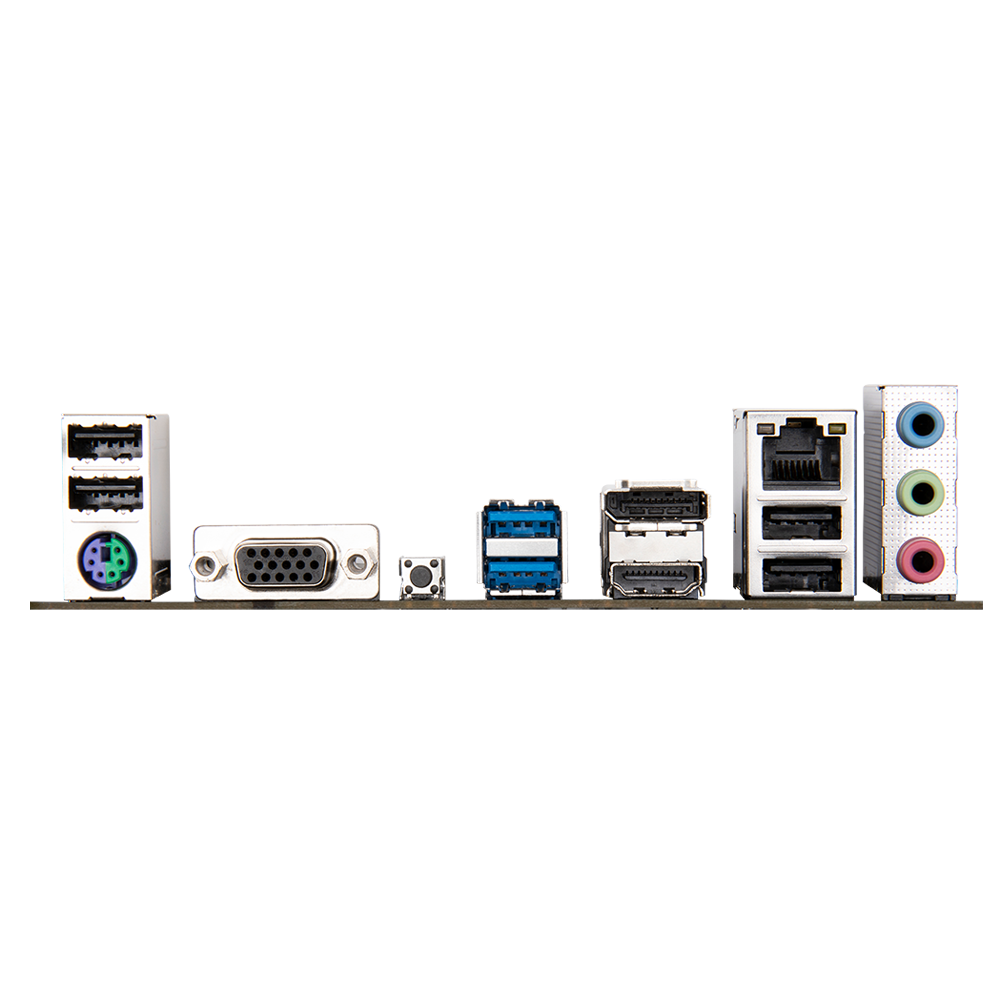

יציאות וממשקים13
- HDCP
- כן
- גירסת DisplayPort
- 1.4
- גירסת HDMI
- 2.1
- יציאות אוזניות
- 3
- יציאות וידאו
- HDMIDisplayPortVGA
- כמות יציאות ( Ethernet LAN (RJ-45
- 1
- כמות יציאות USB 2.0
- 4
- מחבר USB
- USB Type-A
- מיקרופון , שקע חיבור
- כן
- מספר יציאות Display Port
- 1
- מספר יציאות HDMI
- 1
- מספר יציאות USB 3.2 Gen 1 Type-A
- 2
- מספר יציאות VGA D-Sub
- 1
כללי1
- תוכנות באריזה
- Norton Internet Security
BIOS6
- ACPI גירסה
- 5.0
- גודל זיכרון BIOS
- 256 Mbit
- גרסת DMI
- 2.7
- גרסת SMBIOS
- 2.7
- מגשר איפוס CMOS
- כן
- סוג BIOS
- UEFI AMI
בקרי אחסון4
- ממשקי כונן דיסק נתמכים
- M.2, PCI Express 4.0, SATA III
- מספר כוננים נתמכים
- 5
- סוגי כונני אחסון נתמכים
- HDD & SSD
- רמות RAID
- 0, 1, 10
גרפיקה2
- מספר מסכים נתמכים
- 3
- תומך בטכנולוגיית עיבוד מקביל
- Not supported
יציאות קלט/פלט בפאנל האחורי1
- כמות יציאות PS/2
- 1
מאפיינים3
- משפחת שבבי לוח האם
- AMD
- ניטור תקינות המחשב
- Fan, Temperature, Voltage, Water cooling
- ערוצי שמע
- 7.1 channels
משקל ומידות2
- עומק
- 225 מ"מ
- רוחב
- 230 mm
קלט/פלט פנימי8
- TPM מחבר
- כן
- חיבור כח EPS (שמונה פינים)
- כן
- מחבר אודיו פאנל קדמי
- כן
- מחבר חשמל (24פינים) ATX
- כן
- מחבר פן CPU
- כן
- מחברי USB 2.0
- 2
- מחברי USB 3.2 Gen 1 (3.1 Gen 1)
- 1
- מספר מחברי SATA III
- 4
רשת1
- סוג ממשק Ethernet
- Gigabit Ethernet
תוכן האריזה1
- כבלים כלולים
- SATA
