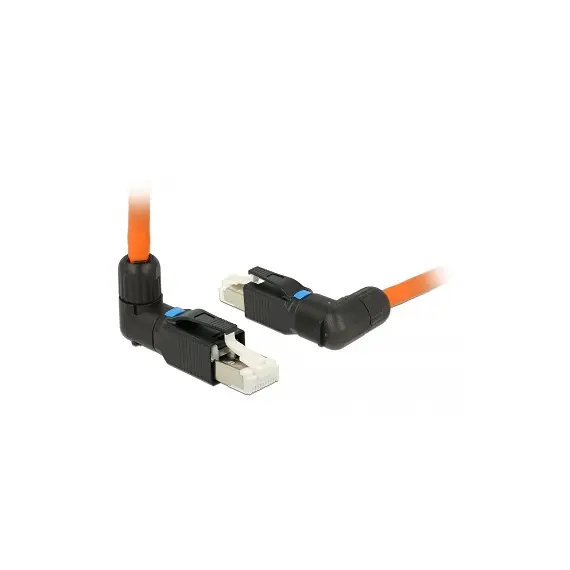

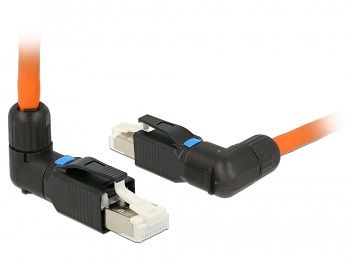

Delock RJ45 - NetWork Cable, Cat.6A, Angled
- — אחריות: שנה אחריות
- — החזרה והחלפה עד 30 יום
- — המחיר הטוב ביותר

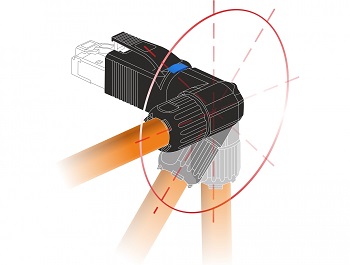

This RJ45 plug by Delock can be used to connect network cables. Installation of the plug to various cable types is toolfree and time-saving. The strain relief can be applied in 8 different directions. Thereby all applications where angled mounting is required can be covered with a single connector.
Specification
• Connector: 1 x RJ45 plug angled
• Shielded (STP)
• Compliant with Cat.6A requirements of ISO/IEC 11801 Edition 2.2, EN 50173-1:2011
and EN 60603-7-51, and ANSI/TIA 568-C.2
• Supports PoE / PoE+
• TIA-568B pinout
• For solid or stranded wire up to 0.644 mm (22 - 26 AWG)
• For cable diameter from 6.0 - 8.5 mm
• Dimensions (LxWxH): ca. 58.0 x 32.4 x 14.8 mm
Package content

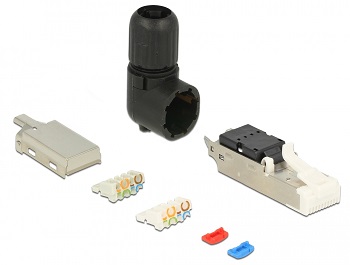

• RJ45 plug
• 2 x cable manager
• 2 x color icon marker
• Installation manual
