- תצוגה אלכסוני23 אינץ
- יחס המימדים16:9
- סוג פאנלLCD
- מספר יציאות HDMI1
- כל התכונות

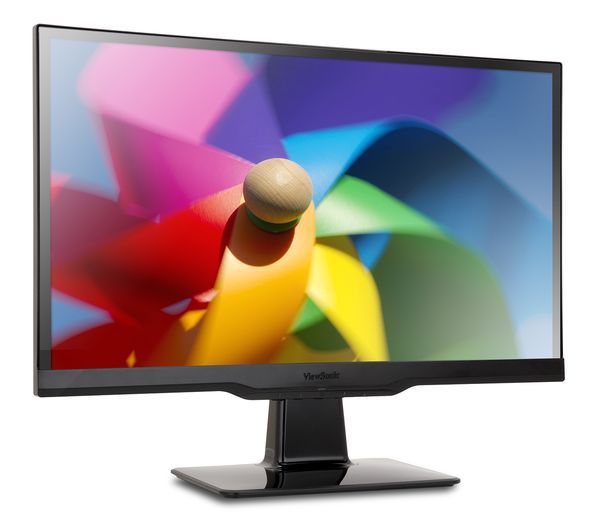

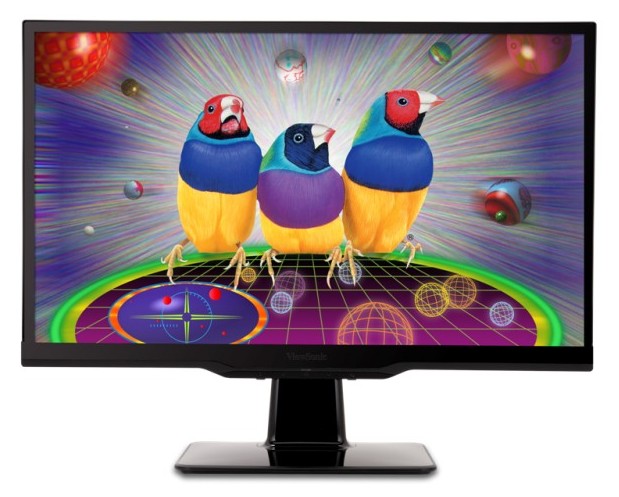

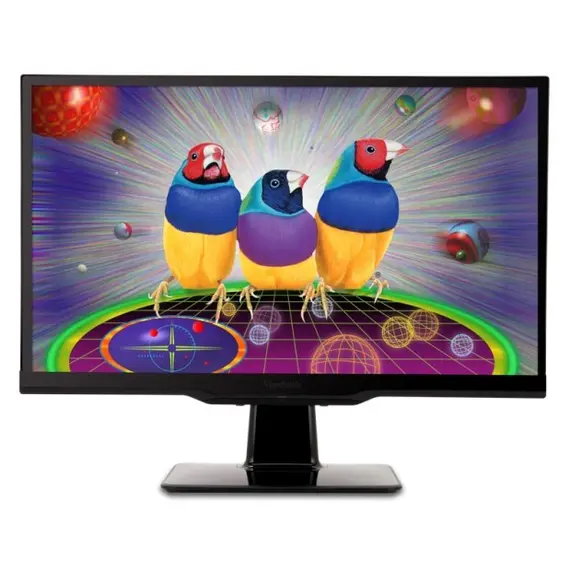

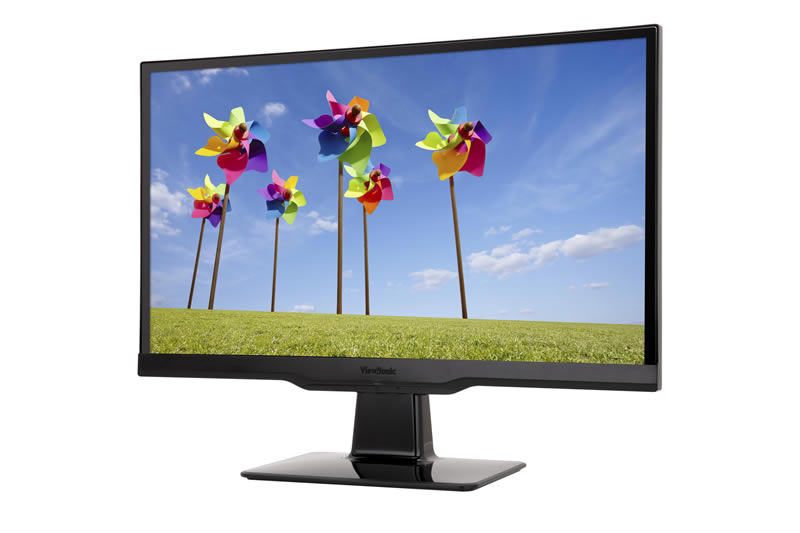

The ViewSonic VX2363S is a high-performance 23" (23" viewable) Full HD LED value display designed for home entertainment and work applications. The VX2363S features SuperClear® image enhancement technology and wide viewing angles to deliver superior, consistent color performance. With Full HD 1920 x 1080 native resolution, color management, 2ms (GTG Delta) response times and our exclusive one-touch game mode hotkey, this display provides clearer, more accurate images for web surfing, photo sharing, movie watching and gaming. The VX2363S features a 100mm x 100mm VESA-compliant mount for flexible installation, Eco-mode for increased energy savings, and a premium frameless bezel design with glossy finish in black. D-Sub/DVI inputs are also included for more versatile connectivity.
Panel/Display
|
Type
|
Wide Color a-Si TFT Active Matrix IPS LED
|
Viewable Size
|
23" Display Area: 20.0 x 11.3" (50.8 x 28.7 cm)
|
Backlight
|
WLED
|
Brightness
|
250 cd/m²
|
Contrast Ratio
|
1,000:1 Dynamic: 50,000,000:1
|
Viewing Angle
|
178°/178°
|
Panel Surface
|
Anti-glare, hard coating (3H)
|
Response Time
|
5 ms (typical), 2 ms (GTG)
|
Panel Life
|
30,000 hours
|
Signal
|
Frequency
|
Horizontal: 24-82 kHz Vertical: 50-75 Hz
|
Sync Type
|
Separate Sync
|
Resolution
|
1920 x 1080
|

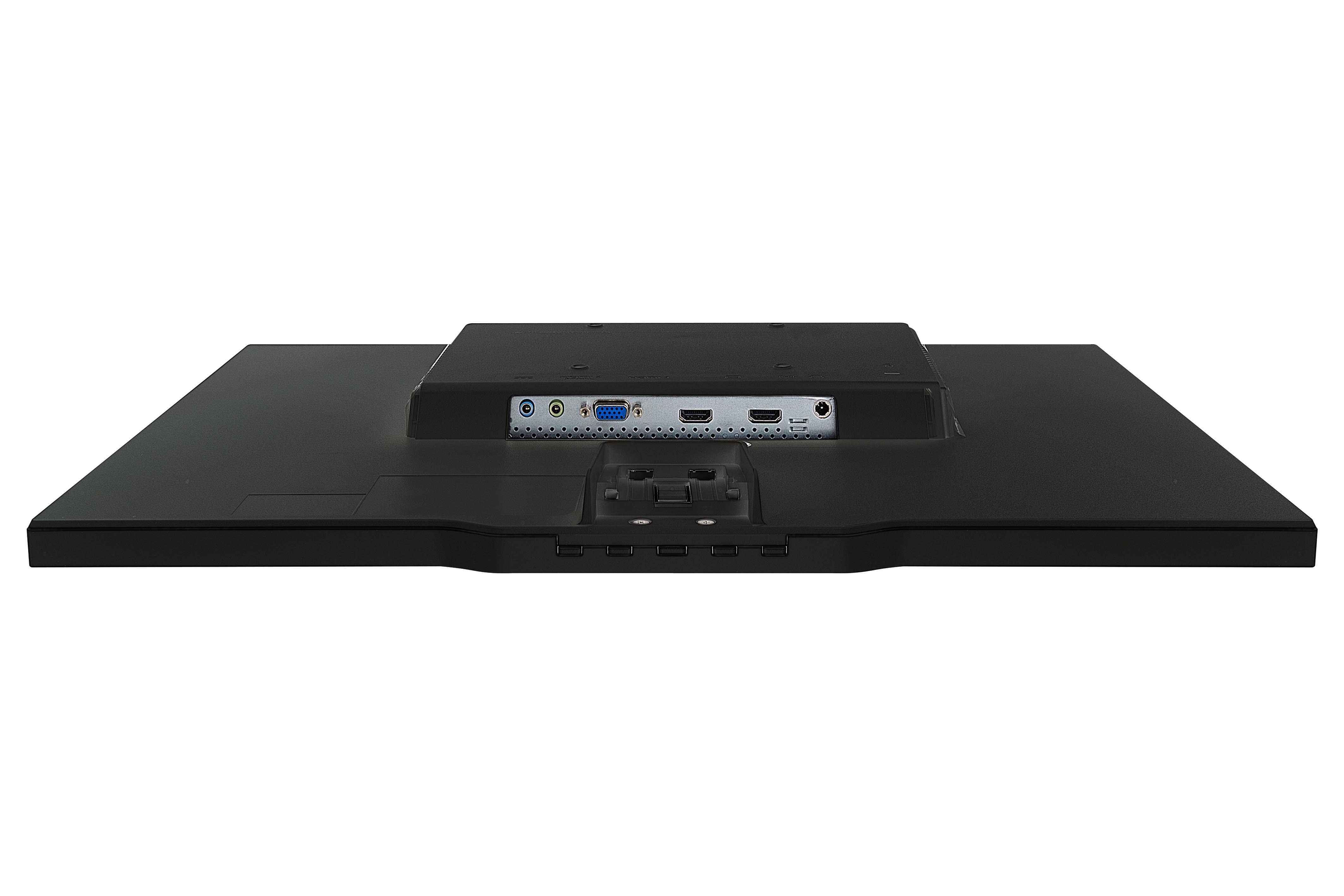

Input/Output Connectors
|
Analog
|
1 x VGA (15-pin mini D-sub) (0.7 / 1.0 Vp-p, 75 ohms)
|
Digital
|
1 x HDMI (TMDS, 100 ohms)
|
Audio Input
|
Yes, 3.5 mm
|
Headphone Jack
|
Yes, 3.5 mm
|
Speakers
|
2 x 1.5 W
|
Physical
|
Buttons
|
Four: 1, 2, up, down, power
|
On-Screen Display
|
Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
|
Tilt
|
Forward 5° / Backward 15°
|
VESA Compatibility
|
100 x 100 mm
|
Compliant Standards
|
FCC-B (including ICES003) UL ENERGY STAR 6.0 EPEAT Silver Mexico NOM Mexico Energy NRCan
|
Power Requirements
|
100-240 VAC (50-60 Hz)
|
Power Consumption
|
21 W Optimize: 18 W Conserve: 15 W
|
Environmental Requirements
|
Temperature: 32 to 104°F (0 to 40°C) Humidity: 10 to 90%, non-condensing
|
Dimensions (WxHxD)
|
With Stand: 20.9 x 16.0 x 6.5" (53.2 x 40.6 x 16.4 cm) Without Stand: 20.9 x 13.0 x 1.6" (53.2 x 33.1 x 4.1 cm)
|
Weight
|
With Stand: 7.1 lb (3.2 kg) Without Stand: 6.4 lb (2.9 kg)
|
Packaging Info
|
Package Weight
|
11.2 lb
|
Box Dimensions (LxWxH)
|
23.465 x 16.378 x 5.354"
|
