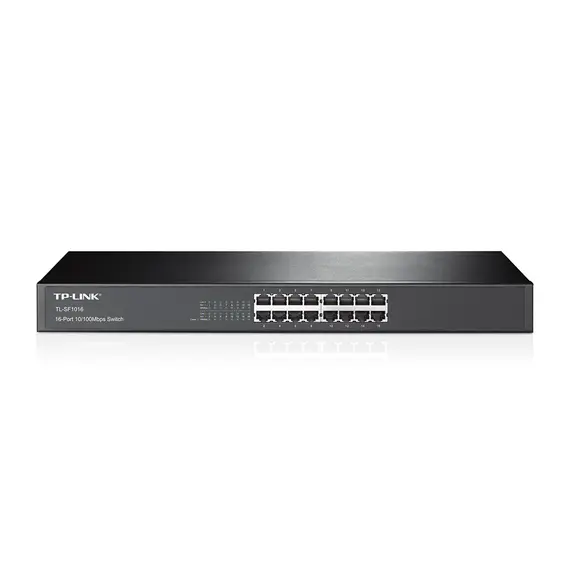

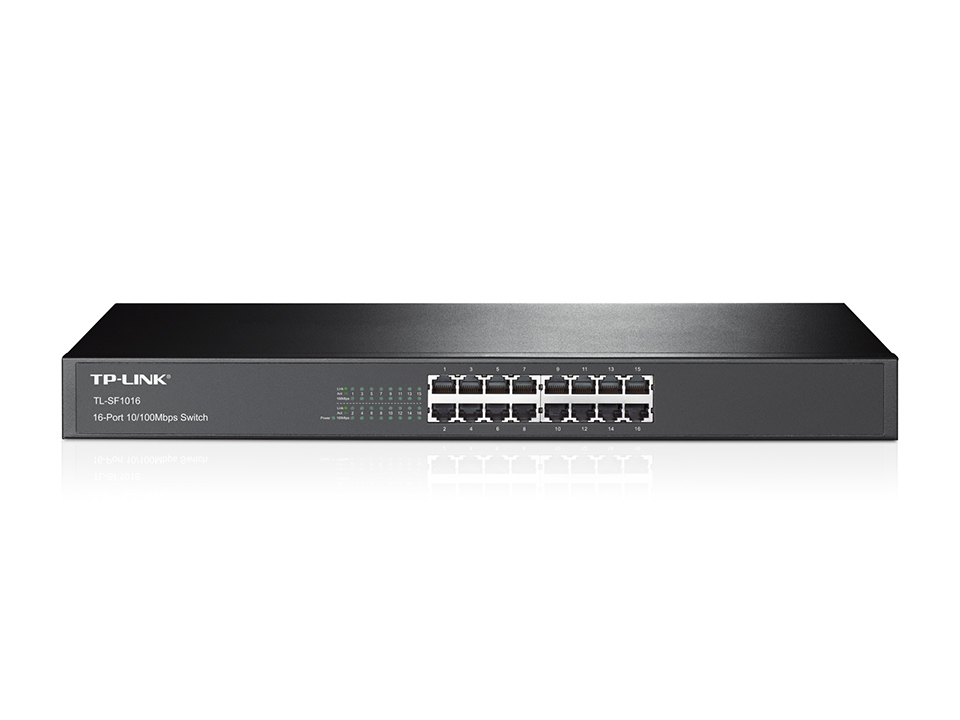

TP-Link TL-SF1016 - Network Switch, Unmanaged, Fast Ethernet (10/100), 1U, Black
TP-Link TL-SF1016 - Network Switch, Unmanaged, Fast Ethernet (10/100), 1U, Black
‎ ‍368‍

TP-Link TL-SF1016 - Network Switch, Unmanaged, Fast Ethernet (10/100), 1U, Black

CA-310120
אספקת הזמנה
אפשרויות תשלום
היתרונות שלנו
  • — אחריות: שנה אחריות
  • — החזרה והחלפה עד 30 יום
  • — המחיר הטוב ביותר
חיפוש מוצרים דומים
  • כמות יציאות RJ-45 Ethernet16
  • סוג יציאות רשתFast Ethernet 10/100
  • סוג מתגלא מנוהל
  • גודל פיזי של הכונן1U
  • כל התכונות

What This Product Does
The 16-Port 10/100Mbps Rackmount Switch TL-SF1016 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016 can save up to 70%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 16-Port 10/100Mbps Switch TL-SF1016 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016 work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

- Innovative energy-efficient technology saves power up to 70%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 3.2 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly


Manufacturer site

כללי
מותג
TP-Link
Power over Ethernet (PoE)
תומך ב PoE
לא
רשת
2G
לא
3G
לא
4G WiMAX
לא
אוטומטי MDI/MDI-X
לא
שליטת שידור בזמן סערה
לא
שן כחולה Bluetooth
לא
תמיכה 10G
לא
Data transmission
Packet buffer memory
2 MB
טבלת כתובות MAC
8000 כניסות
קיבולת החלפה (Switching)
3,2 Gbit/s
Management features
סוג מתג
לא מנוהל
ביצועים
2.4 GHz
לא
חבילות מידע
Rack mount kit
כן
כבלים כלולים
AC
יציאות וממשקים
Console port
RJ-45
Power connector
DC-in jack
כמות יציאות RJ-45 Ethernet
16
סוג יציאות רשת
Fast Ethernet 10/100
מאפיינים
24/7 operation
לא
משקל ומידות
גובה
44 mm
עומק
180 mm
רוחב
440 mm
עיצוב
גודל פיזי של הכונן
1U
התקנה במארז
כן
מחווני LED
צבע המוצר
Black
צריכת חשמל
AC input frequency
50/60 הרץ
AC input voltage
100 - 240 V
Power consumption (max)
2,23 W
רשת
10G support
לא
4G
לא
Auto MDI/MDI-X
כן
Copper ethernet cabling technology
10BASE-T,100BASE-TX
Networking standards
IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
תכונות נוספות
2.5 mm connector
לא
3.5 mm (1/8-inch) in
לא
תנאים תפעוליים
טווח טמפרטורות אחסון (T-T)
-40 - 70 ?C
טווח טמפרטורת פעולה (T-T)
0 - 40 ?C
טווח לחות יחסית בפעולה
10 - 90 %
טווח לחות יחסית לאחסון
5 - 90 %
