TP-Link TL-SF1024 - Network Switch, Unmanaged, Fast Ethernet (10/100), Black
TP-Link TL-SF1024 - Network Switch, Unmanaged, Fast Ethernet (10/100), Black
‎ ‍426‍

TP-Link TL-SF1024 - Network Switch, Unmanaged, Fast Ethernet (10/100), Black

CA-310130
אספקת הזמנה
אפשרויות תשלום
היתרונות שלנו
  • — אחריות: שנה אחריות
  • — החזרה והחלפה עד 30 יום
  • — המחיר הטוב ביותר
חיפוש מוצרים דומים
  • כמות יציאות RJ-45 Ethernet24
  • סוג יציאות רשתFast Ethernet 10/100
  • סוג מתגלא מנוהל
  • כל התכונות

What This Product Does

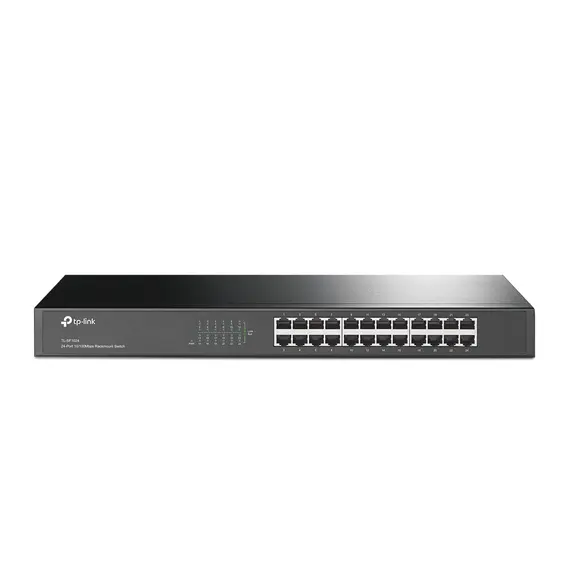

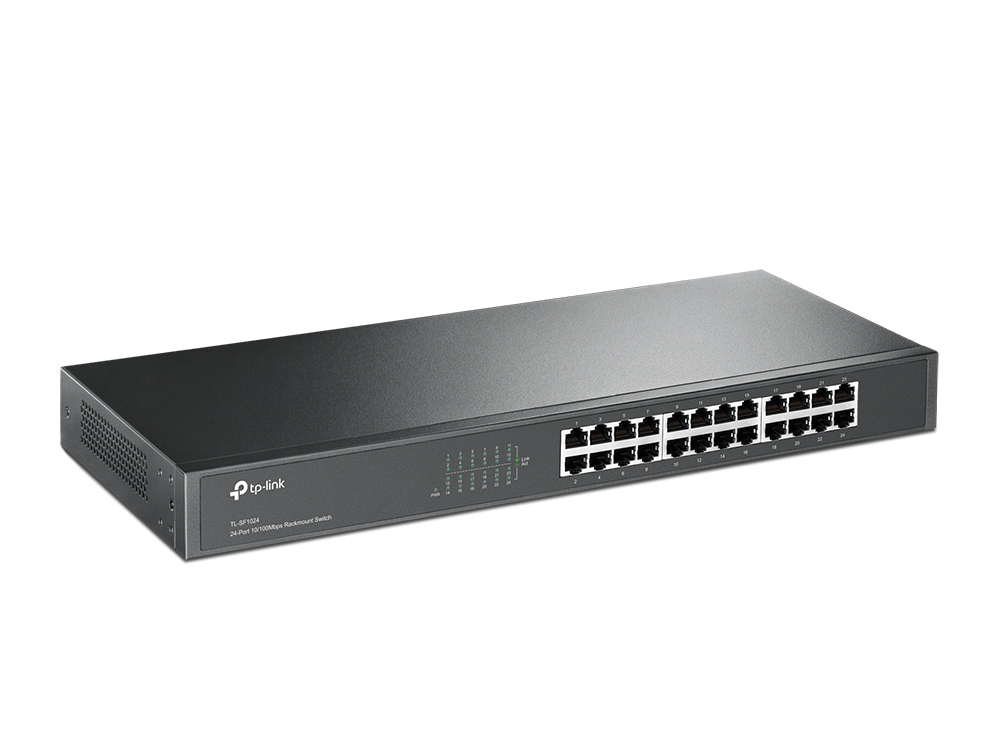

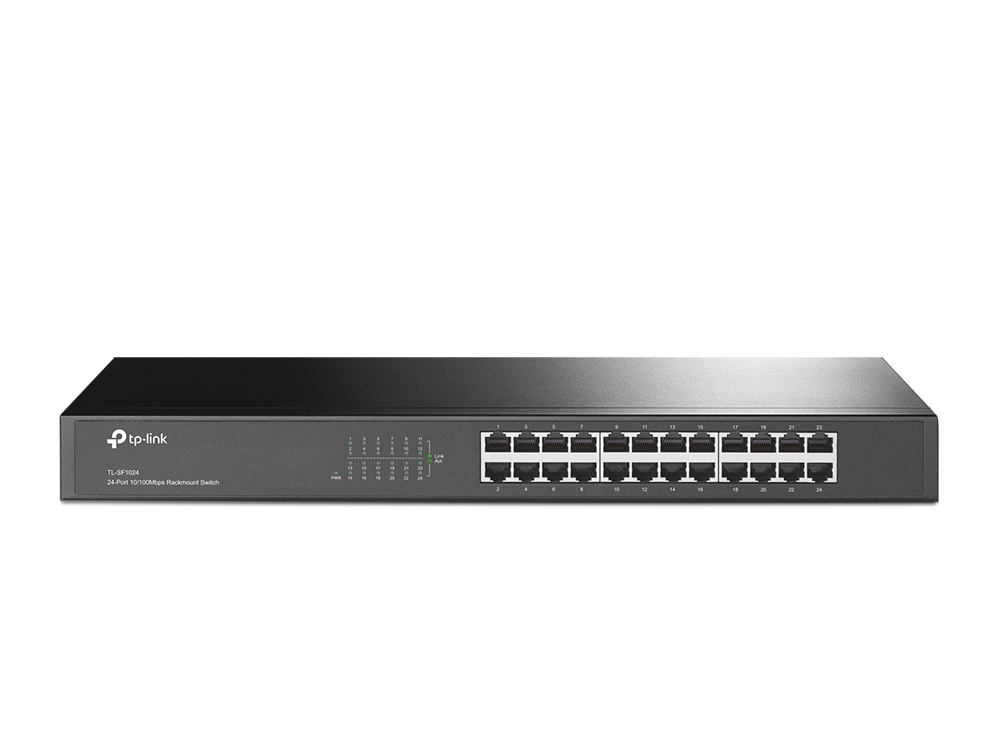

The 24-Port 10/100Mbps Rackmount Switch TL-SF1024 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024 work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Manufacturer site

כללי
מותג
TP-Link
Power over Ethernet (PoE)
תומך ב PoE
לא
רשת
2G
לא
3G
לא
4G WiMAX
לא
אוטומטי MDI/MDI-X
לא
שליטת שידור בזמן סערה
לא
שן כחולה Bluetooth
לא
תמיכה 10G
לא
Data transmission
Store-and-forward
כן
טבלת כתובות MAC
8000 כניסות
קיבולת החלפה (Switching)
4,8 Gbit/s
Management features
סוג מתג
לא מנוהל
אבטחה
סינון כתובות MAC
כן
ביצועים
2.4 GHz
לא
חבילות מידע
מדריך התחלה מהירה
כן
יציאות וממשקים
Fast Ethernet (copper) ports quantity
24
Power connector
DC-in jack
כמות יציאות RJ-45 Ethernet
24
סוג יציאות רשת
Fast Ethernet 10/100
מאפיינים
24/7 operation
לא
משקל ומידות
גובה
44 mm
עומק
180 mm
רוחב
440 mm
עיצוב
Stackable
הסמכה
FCC, CE, RoHS
התקנה במארז
כן
מחווני LED
צבע המוצר
Black
פרטים טכניים
Layers per pallet (air)
1 pc(s)
Layers per pallet (sea)
1 pc(s)
Master (outer) cases per pallet (air)
11 pc(s)
Master (outer) cases per pallet (sea)
1 pc(s)
Number of cartons per pallet layer
1 pc(s)
Pallet gross weight (air)
1 g
Pallet gross weight (sea)
1 g
Pallet height (air)
1,1 cm
Pallet height (sea)
1,1 cm
Pallet length
1 mm
Pallet width
1 mm
Products per pallet (air)
1 pc(s)
Products per pallet (sea)
1 pc(s)
Quantity per shipping (inner) case
11 pc(s)
Shipping (inner) case height
1 mm
Shipping (inner) case length
1 mm
Shipping (inner) case net weight
1 g
Shipping (inner) case width
1 mm
צריכת חשמל
AC input frequency
50/60 הרץ
AC input voltage
100 - 240 V
Power supply included
צריכת חשמל
3,53 W
רשת
10G support
לא
4G
לא
Auto MDI/MDI-X
כן
Cable types supported
Cat3,Cat4,Cat5,Cat5e
Flow control support
כן
Full duplex
Networking standards
IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Routing entries
1
תכונות נוספות
2.5 mm connector
לא
3.5 mm (1/8-inch) in
לא
תנאים תפעוליים
טווח טמפרטורות אחסון (T-T)
-40 - 70 ?C
טווח טמפרטורת פעולה (T-T)
0 - 40 ?C
טווח לחות יחסית בפעולה
10 - 90 %
טווח לחות יחסית לאחסון
5 - 90 %
חיפוש וידאו אוטומטי לפי שם של המוצר (ייתכן שהתוצאה לא תואמת למוצר המפורסם באתרינו).

הוראות (mmo_79344086_1591034466_8456_23558.pdf, 386 Kb) [הורד]
