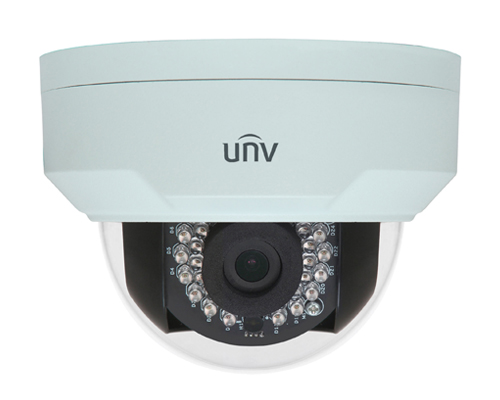

UNIVIEW IPC322ER3-DVPF36 2MP WDR Vandal-resistant Network IR Fixed Dome Camera
- — אחריות: 1 שנה אחריות
- — החזרה והחלפה עד 30 יום
- — המחיר הטוב ביותר
|
Camera |
|||
|
Sensor |
1/2.7", 2 megapixel, progressive scan CMOS |
||
|
Lens |
3.6 mm@F2.0 |
||
|
Angle of View (H) |
84° |
||
|
Shutter |
Auto/Manual, 1/6~1/8000 s |
||
|
Min. Illumination |
Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR |
||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
||
|
S/N |
>52 dB |
||
|
WDR |
Optical WDR(up to 120dB) |
||
|
Video |
|||
|
Max. Resolution |
1920 × 1080 |
||
|
Video Compression |
H.264, MJPEG |
||
|
Frame Rate |
1080P (1920*1080): MAX. 30 fps; 720P (1280*720): MAX. 30 fps |
||
|
Video Streaming |
Triple |
||
|
9:16 Corridor Mode |
Supported |
||
|
ROI |
Supported |
||
|
OSD |
Up to 8 OSDs |
||
|
Privacy Mask |
Up to 8 areas |
||
|
Audio |
|||
|
Audio Compression |
G.711 |
||
|
Two-way audio |
Supported |
||
|
Storage |
|||
|
Edge Storage |
Micro SD, up to 128 GB |
||
|
Network |
|||
|
Protocols |
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, NTP, FTP, HTTP |
||
|
Compatible Integration |
ONVIF, API |
||
|
Interface |
|||
|
Audio I/O |
Input: impedance 35 kΩ; amplitude 2 V [p-p] |
||
|
Output: impedance 600 Ω; amplitude 2 V [p-p] |
|||
|
Alarm I/O |
1/ 1 |
||
|
Network |
10M/100M Base-TX Ethernet |
||
|
General |
|||
|
Power |
12 V DC, or PoE (IEEE802.3 af) |
||
|
Power consumption: Max 5.5W |
|||
|
Dimensions (Ø x H) |
Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
||
|
Weight |
0.45 kg (0.99 lb) |
||
|
Working Environment |
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
||
|
Ingress Protection |
IP66 |
||
|
Vandal Resistant |
IK10 |
||
