VSCOM CA-853160 USB- 8COM PLUS
- — אחריות: שנה אחריות
- — החזרה והחלפה עד 30 יום
- — המחיר הטוב ביותר
● 8 x RS232/422/485 ports
● USB 2.0 High Speed interface
● USB, serial ports and power supply ESD protected
● Robust metal case
● Ports configuration: via software or DIP-switch
● Serial speed max. 1000(RS232) / 12000(RS485) kbps
● 19-inch and Wall mounting options
● Bus powered or ext. DCin 9-54V
● Easy port expansion via USB-Out type A connector
● Wide range operating temperature (-25°C - +75°C)

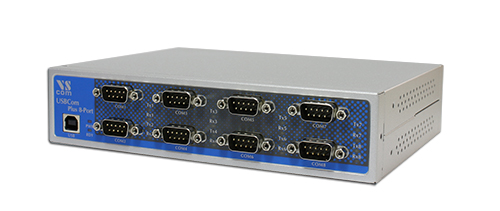

The modern USB-8COM Plus adapter connects 8 x RS232 or RS422/485 devices to your PC by one USB 2.0 High
Speed port. The serial ports, USB and the power supply are ESD protected, compliant to IEC 61000-4-2 (8kV
contact/16kV air discharges). USB-8COM Plus may work in bus-powered mode on stronger than minimum ports, but a
DCin connector for external wide range voltage is provided.
All serial ports support RS232, RS422 and RS485 in Full-/Half-Duplex operation modes. The operation modes of the
serial ports are either configured by a single DIP switch common for all ports, or for each port individually by software.
The configuration also activates built-in RS485 termination if required, no jumpers needed. Standard Drivers are
available for all major operating systems.
The USB 2.0 High-Speed enables serial data rates of up to 12Mbps in RS422/485 or 1000kbps in RS232 modes. The
device also allows every non-standard bitrate up to 3.5Mbps.

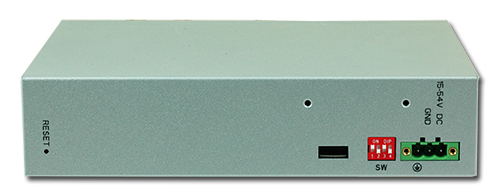

A USB-out (type A) connector at the rear side allows easy expansion of serial ports by simple concatenation of further
USB-COM Plus modules; we call it "USB-Through" feature.
SPECS
USB Interface
USB-Input:
- USB 2.0 High Speed, USB 1.1 compliant
Connector:
- USB type B
Protection:
- Compliant with IEC 61000-4-2 ESD 8kV contact / 16kV air discharge
USB-Out:
- USB 2.0 High Speed, USB 1.1 compliant
Connector
- USB type A (at rear side) Used to connect more USB-(x)COM modules for port expansion.
Protection:
- Compliant with IEC 61000-4-2 ESD 8kV contact / 16kV air discharge
Serial Interface
Ports
- 8 x RS232/422/485 configurable by software
- RS485 Termination configurable by software
- Polarization/BIAS not required
- Connector DSub-9 male
Speed
- RS232: 180bps - 921.6/1000kbps
- RS422: up to 12Mbps
- RS485: up to 12Mbps
Available Modes
- RS232 full duplex
- RS422 full duplex
- RS485 4-wire, full duplex
- RS485 2-wire, half duplex (bus-mode)
Signals
- RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS422: Tx+/-, Rx+/-, GND
- RS485 4-wire: Tx+/-, Rx+/-, GND
- RS485 2-wire: Data+/-, GND
Protection
- Compliant with IEC 61000-4-2 ESD 8kV contact / 16kV air discharge
Software
Driver
-
Windows 2000 to Windows 10 (x86 and x64)
-
Windows Server 2000 to 2012 (x86 and x64)
-
Linux (Kernel 2.6 and later built-in)
-
Mac OS X
Power and Environment
Power Consumption
- Bus powered: 5V 600mA via USB
- Self powered: DCin 9 - 54V, 5W
DCin Supply
DCin specs
- Wide range 9 - 54V DC, 5W
Connector
- 3-pin industrial Terminal Block (Plus / Minus / Protective Earth)
DCin Protection
- Compliant with IEC 61000-4-2 ESD 8kV contact / 16kV air discharge
Dimension
- 196×147×44 mm³ (W×L×H)
Operating Temp
- −25°C - 75°C
Storage Temp
- −30°C – 85°C
Case
- SECC sheet metal (0.8mm)
Weight
- 0.9kg
Mounting
- 19-inch Rack
- Wall mount
LEDs
- LEDs for Power, Ready, serial Tx, Rx
