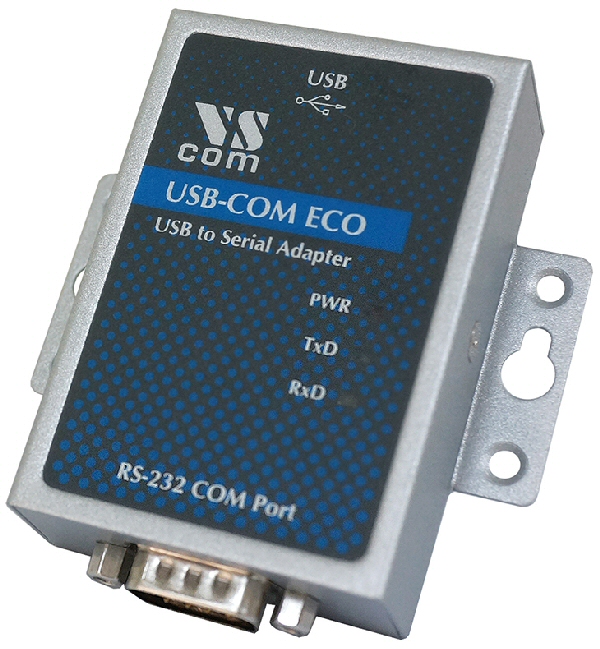

VSCOM USB- COM ECO ISO - USB to 1x RS232 port DSub-9 male
- — אחריות: שנה אחריות
- — החזרה והחלפה עד 30 יום
- — המחיר הטוב ביותר
USB-COM ECO provides easy serial port expansion over USB 2.0 connecting to RS232 devices. It is fully ESD and surge protected, bus powered and accommodated in a very small metal housing. It works over a wide temperature range to cope with harsh operating conditions. The ISO version is electrically isolated to withstand unbalanced ground loops arising in hazardous industrial fields. DIN-Rail and Wall-mounting options are available.
Easy Serial Port Configuration
The serial port fully supports 9 x signals RS232 protocol in the non-ISO version, whereas the ISO-version uses 4 x signals only. LEDs for PWR and TxD/RxD show activity status for the user. Com Port Drivers are available for Windows, Linux and Mac OS X. A configuration tool, called, USB-COM Configurator, allows easy access to special Windows driver options to optimise settings and performance.
High Speed and Electrical Isolation
USB 2.0 Full Speed connection allows serial data rates of up to 460.8kbps. Every non-standard bitrate (e.g. 31250bps for MIDI) can be easy set up.
USB-COM ECO is fully ESD and surge protected at USB and serial port interfaces. Serial port is additionally 2.5kV electrical isolated (ISO-version only), which make it ideal for deployment in hazardous industrial environments.
Features
- USB 2.0 to 1 x RS232 port
- High-Speed Serial port 460.8kbps
- Driver for Windows, Linux, Mac OS X
- LEDs for Power and TxD/RxD activity
- ESD protection on USB and serial ports
- 2.5kV electrical isolation (ISO version only)
- Small metal housing and Bus powered
- DIN-Rail and Wall mountable
- Wide range operating temperature
Specifications
- USB-Input: USB 2.0 Full Speed, USB 1.1 compliant
- Connector: USB type B
- Circuits: FTDI FT231XS
- No. of Ports/Type: 1 x RS232
- Connector: DB-9 male
- Protection: 16kV ESD surge protection / 2.5kV Electrical isolation on ISO version
- Signals non-ISO: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
- Signals ISO: TxD, RxD, RTS, CTS, GND
- Data Bits: 7, 8
- Stop Bits: 1, 2
- Parity: None, Even, Odd, Mark, Space
- Flow Control: RTS/CTS, XON/XOFF
- Baudrate" 180bps - 460.8/500kbps
- LEDs: TxD/RxD for each port
- Drivers: Windows 2000 to Windows 10 (x86 and x64) / Windows Server 2000 to 2016 (x86 and x64)
- Linux (Kernel 3.4 and later built-in): Mac OS X
- Installation: The driver is already installed (Linux), or installed by automatic Download after Device connection (Windows).
- Input Voltage" 5V (USB)
- Power Consumption: max 50mA, 250mW
- Connector: USB Type B, bus-powered, no external supply
- Case: 0.8mm sheet metal
- Weight: 150g, w/h box 0.3kg
- Dimensions: 50×72×22 mm³ (W×L×H) Case / 72×72×22 mm³ (W×L×H) with mounting wings
- Packaged: 85×122×55 mm³
- Mounting: Desktop use
- DIN-Rail (optional): Wall mount
- Operating Temp: −25°C - 75°C
- Storage Temp: −30°C – 85°C
- Ambient Humidity: 5-95% non condensing
- Declarations: CE, FCC
- EMI: EN 55022 Class B / 47 CFR FCC Part 15 Subpart B
- EMS (EN 55024): EN 61000-4-3: Radiated RFI / EN 61000-4-4: Electrical Fast Transient / EN 61000-4-5: Surge / EN 61000-4-6: Induced RFI / EN 61000-4-8: Power Frequency Magnetic Field / EN 61000-4-11: Power supply dips
- ESD: EN 61000-4-2 4kV contact 8kV air for Serial Port / USB
- MTBF non-ISO: 184.3 Years @ 25°C / 94.6 Years @ 45°C
- Standard: Telcordia (Bellcore) Standard; RelCalc. 5.0 BELL-7
- Packing list: USB-COM ECO device / USB 2.0 High-Speed cable / 4 rubber feet for table mode
